MEXTECH Professional AC/DC True RMS Clamp Meters DT-9481

MEXTECH Professional AC/DC True RMS Clamp Meters DT-9481
MEXTECH Professional AC/DC True RMS Clamp Meters DT-9481
MEXTECH Professional AC/DC True RMS Clamp Meters DT-9481

MEXTECH Professional AC/DC True RMS Clamp Meters DT-9481

Click To Zoom

MEXTECH Professional AC/DC True RMS Clamp Meters DT-9481

MEXTECH Professional AC/DC True RMS Clamp Meters DT-9481

(Based On 10 Reviews)

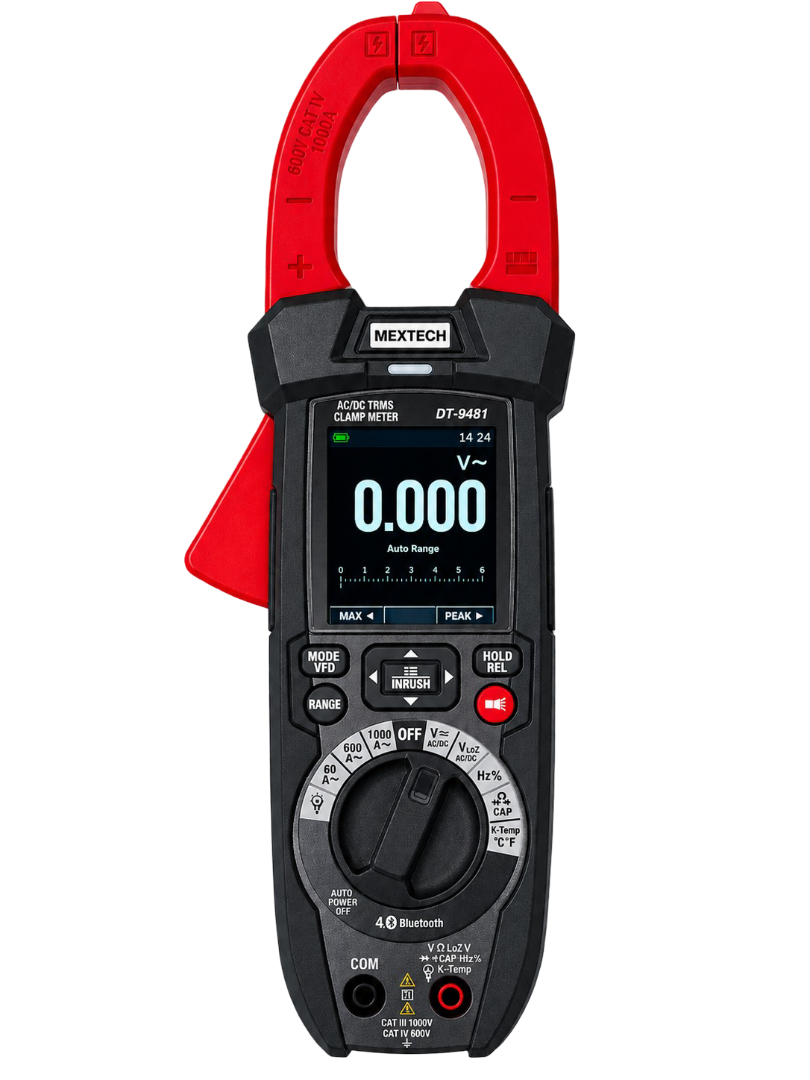

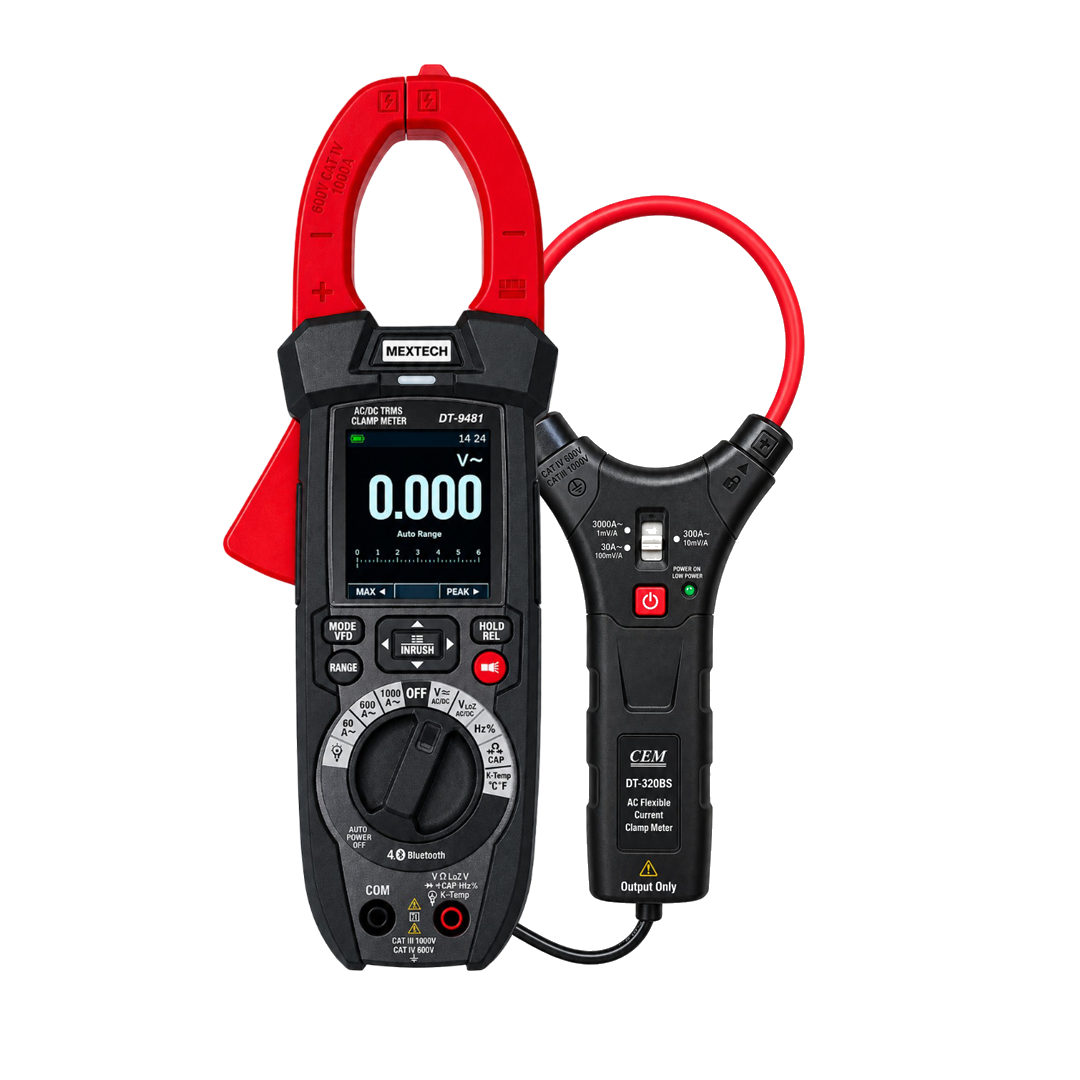

Professional AC/DC True RMS Industrial Clamp Meter and TFT color LCD display, 6000 counts. Providing fast A/D converting sampling time, high accuracy. It is easy to find and solve the problems of the Production equipment, Providing Bluetooth technology. It is much more safe measurements with double molded plastic housing design and IP65 waterproof function.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 24,000

(GST inclusive price) i
  • Base Value: ₹ 20339
  • GST: (18) % ₹ 3661
  • Total Value ₹ 24000

₹39,800.00

( - 40% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • 2.4“ TFT color 6000 counts LCD display for easy and clear viewing of images and readings
  • True RMS measurement for ACV / ACA / LoZ for ACV measurement

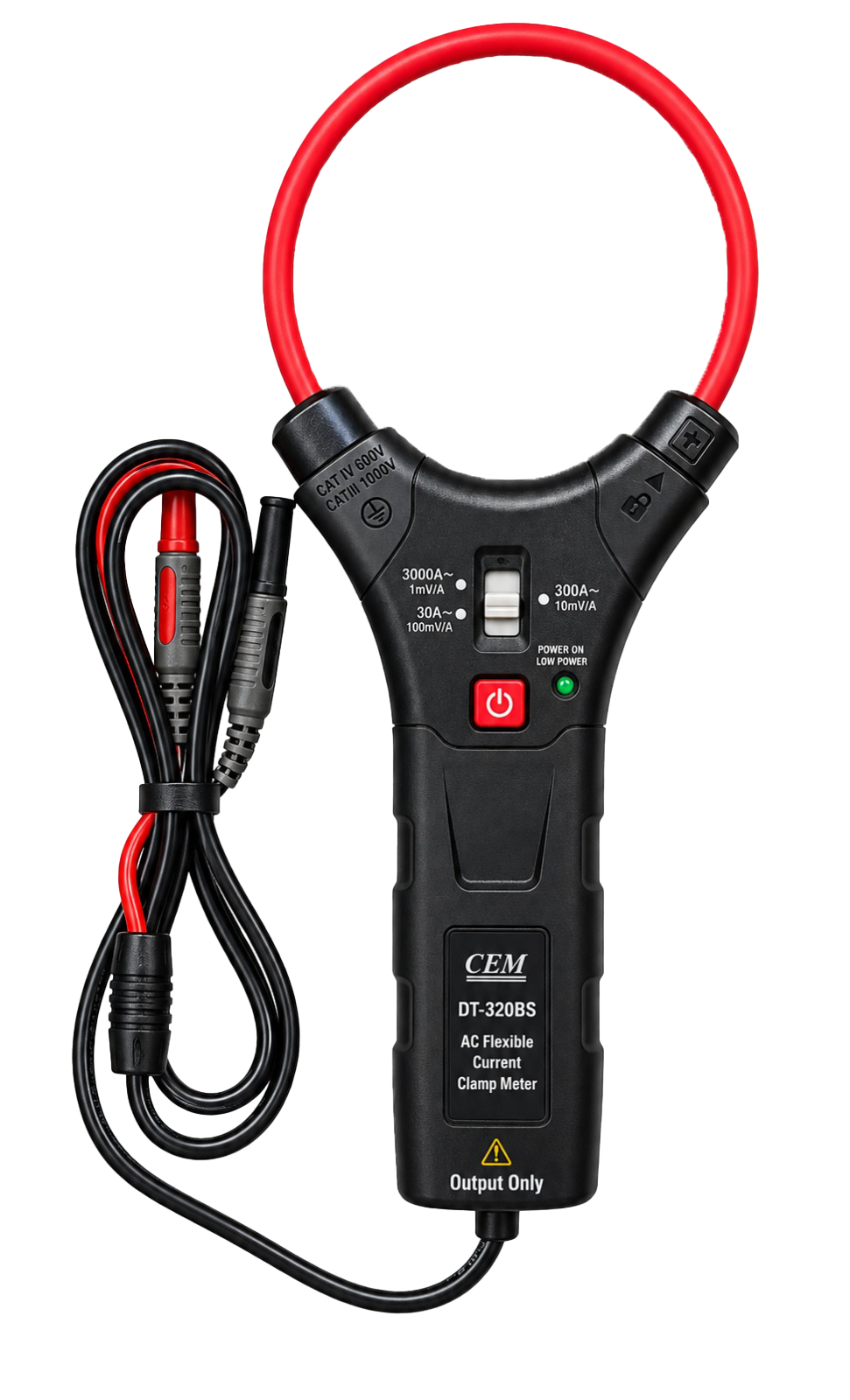

  • Flexible current probe 320Bs expands the measurement range to 3000 ACA.
  • Low pass filter for accurate measurement of variable frequency drive (VFD) signals
  • 1.4’’ (37mm) Jaw opening
  • AC, AC+DC True RMS measurement & 1KHz ACV, ACA bandwidth
  • CAT IV 600V, CAT III 1000V, CAT II 1500V
  • A/D convert fast sampling time: 10 times/sec
  • Peak capture as fast as 500μS & Inrush current
  • Min/Max/Avg with Time stemp (records signal fluctuations)
  • With Bluetooth connect to ThermoView+ smart phone App for documentation reporting and sharing
  • Logging function with Trend capture for easy review of logged data
  • Double molded plastic housing for safe testing and flashlight for dark location
  • Operating Temperature & Humidity: 5 to 40°C (41 TO 104°F), <80%RH
  • Storage Temperature & Humidity: -20 to 60°C (-4 TO 140°F), <80%RH

What's in the box?

  • Comes in a Hard Carrying Case with Battery Charging Adaptor and cable
  • Rechargeable Battery
  • K-type Thermocouple Probe Set
  • High-quality Test Leads, Flexible Clamp.

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specification
FunctionRange Resolution

Accuracy

DC Voltage600.0mV0.1mV± (0.8% + 8 digits)
6.000V0.001V± (0.5% + 5digits)
60.00V0.01V
600.0V0.1V± (0.8% + 5 digits)
1500V1V
AC TRMS Voltage6.000V0.001V50Hz-60Hz:± (1.2% +5digits)
61Hz-1kHz:± (2.5% +5digits)
60.00V0.01V
600.0V0.1V
1000V1V
LowZ AC TRMS Voltage6.000V0.001V±(3.0+40digits)
60.00V0.01V
300.0V0.1V
AC+DC TRMS Voltage (50Hz-1kHz)6.000V0.001V±(2.5% + 20 digits )
60.00V0.01V
600.0V0.1V
1000V1V
LowZ AC +DC TRMS Voltage6.000V0.001V±(3.5+40digits)
60.00V0.01V
300.0V0.1V
DC CURRENT60.00A0.01A±(2.0% + 8 digit )
600.0A0.1A
1000A1A
AC TRMS Current (50Hz-60Hz)60.00A0.01A±(2.5% + 5 digits)
600.0A0.1A
1000A1A
Flexible Coil current (50Hz-400Hz)30.00A0.01A±(3.0% + 5 digits)
300.0A0.1A
3000A1A
RESISTANCE AND CONTINUITY TEST600.0Ω0.1Ω±(1.0% + 10 Digits)
6.000kΩ0.001kΩ±(0.8% + 5 Digits)
60.00kΩ0.01kΩ
600.0kΩ0.1kΩ
6.000MΩ0.001MΩ
60.00MΩ0.01MΩ±(2.5% + 10 Digits)
Frequency (Electronic Circuits)60.00Hz0.01Hz±(0.2% + 5 digits)
600.0Hz0.1Hz
6.000kHz0.001kHz
60.00kHz0.01kHz
600.0kHz0.1kHz
6.000MHz0.001MHz
10.00MHz0.01MHz
Duty Cycle10.0%-90.0%0.1%±(1.2%+8digits)
CAPACITANCE60.00nF0.01nF±(3.0% + 20 digits)
600.0nF0.1nF
6.000µF0.001µF
60.00µF0.01µF
600.0µF0.1µF
6000µF1µF±(3.5% + 20 digits)
60.00mF0.01mFUnspecific
100.0mF0.1mF
Temperature with K-Type Probe-40.0 to 600.0°С0.1°С±(1.5+ 3°С)
600 to1000°С1°С
-40.0 to 600.0°F0.1°F±(1.5+ 5.4°F)
600 to 1800°F1°F
245.0 to 600.0K0.1K±(1.5+ 3K)
600 to 1273K1K
DIODE TestTest Current:Ë‚1.5mAMax Voltage with Open Circuit:3.3VDC
