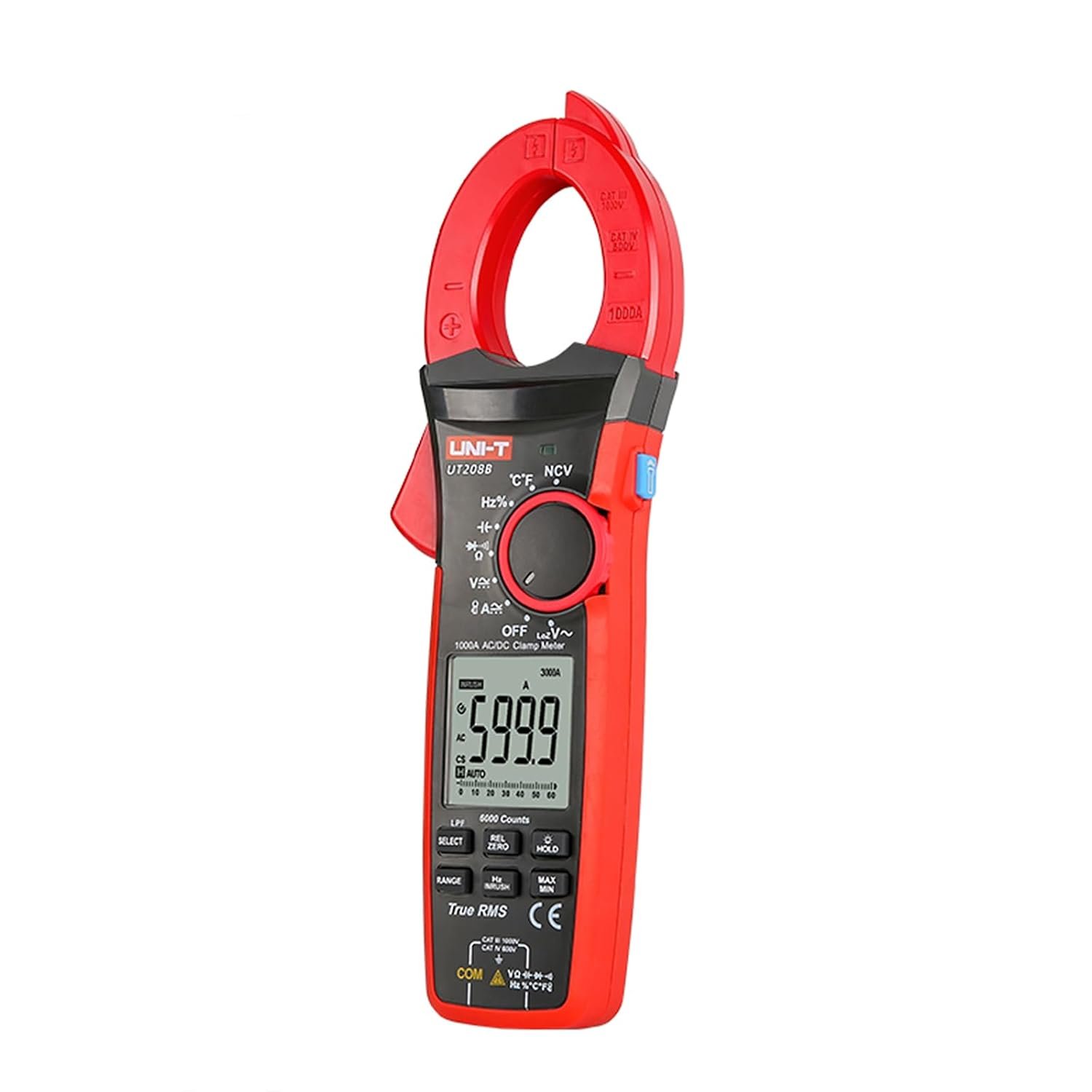

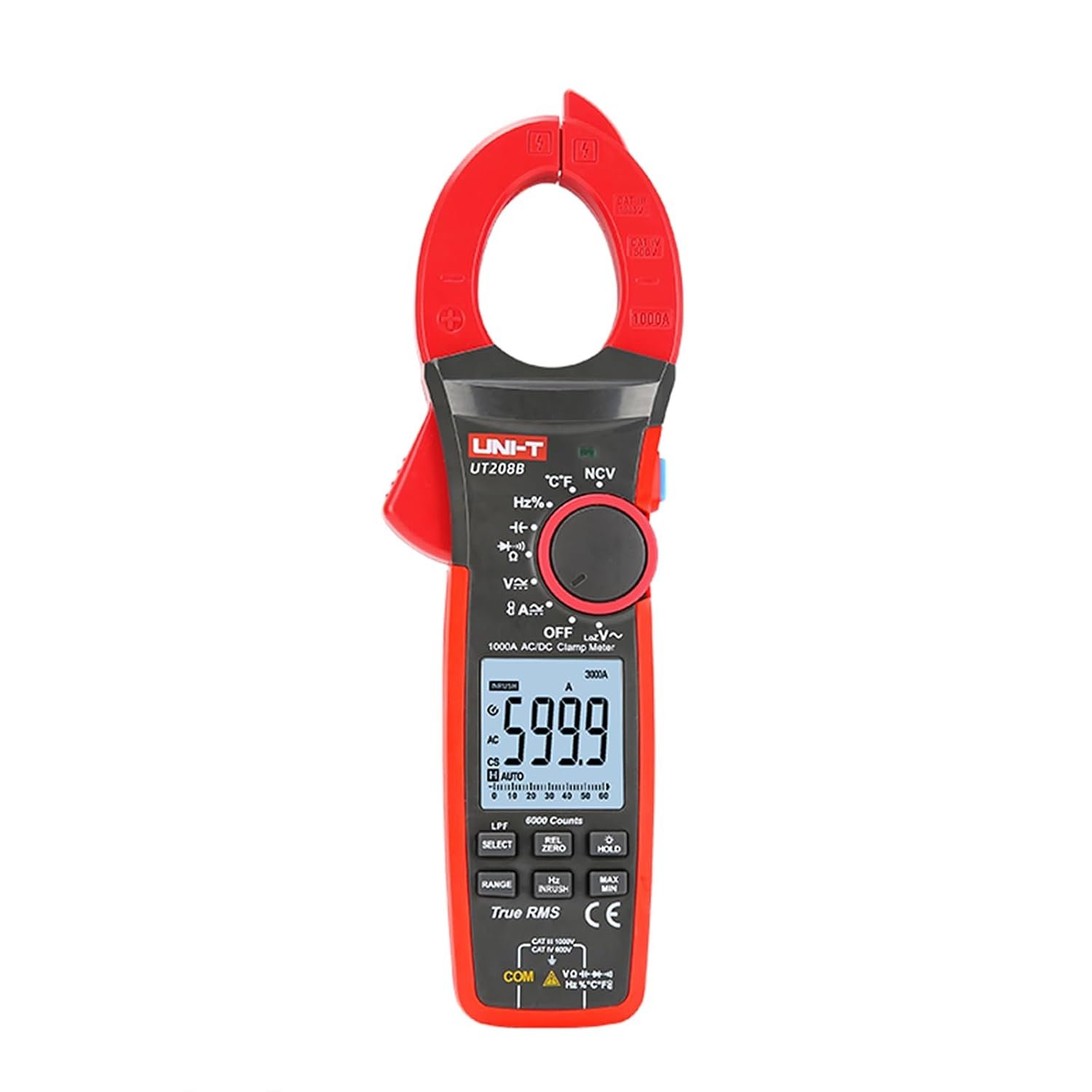

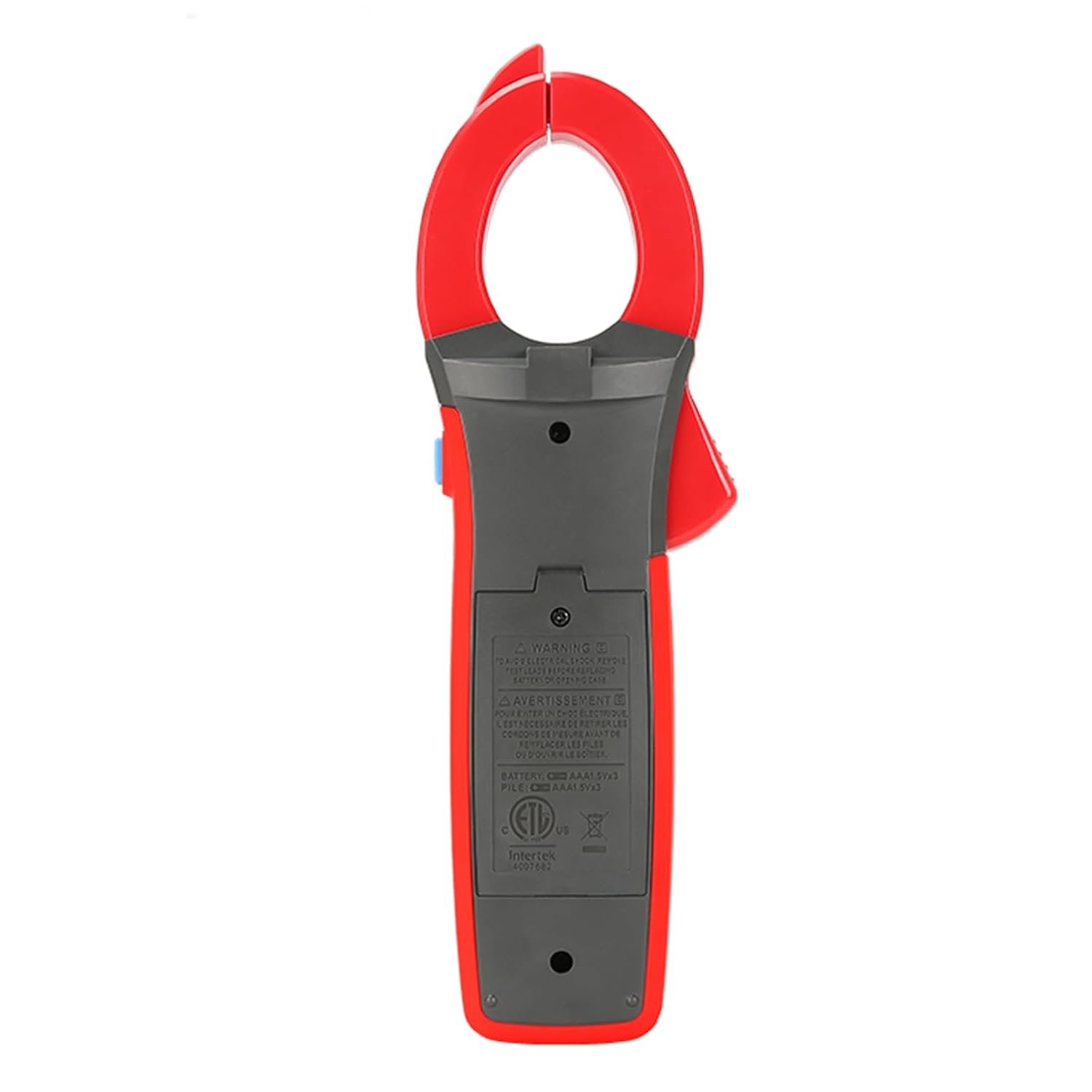

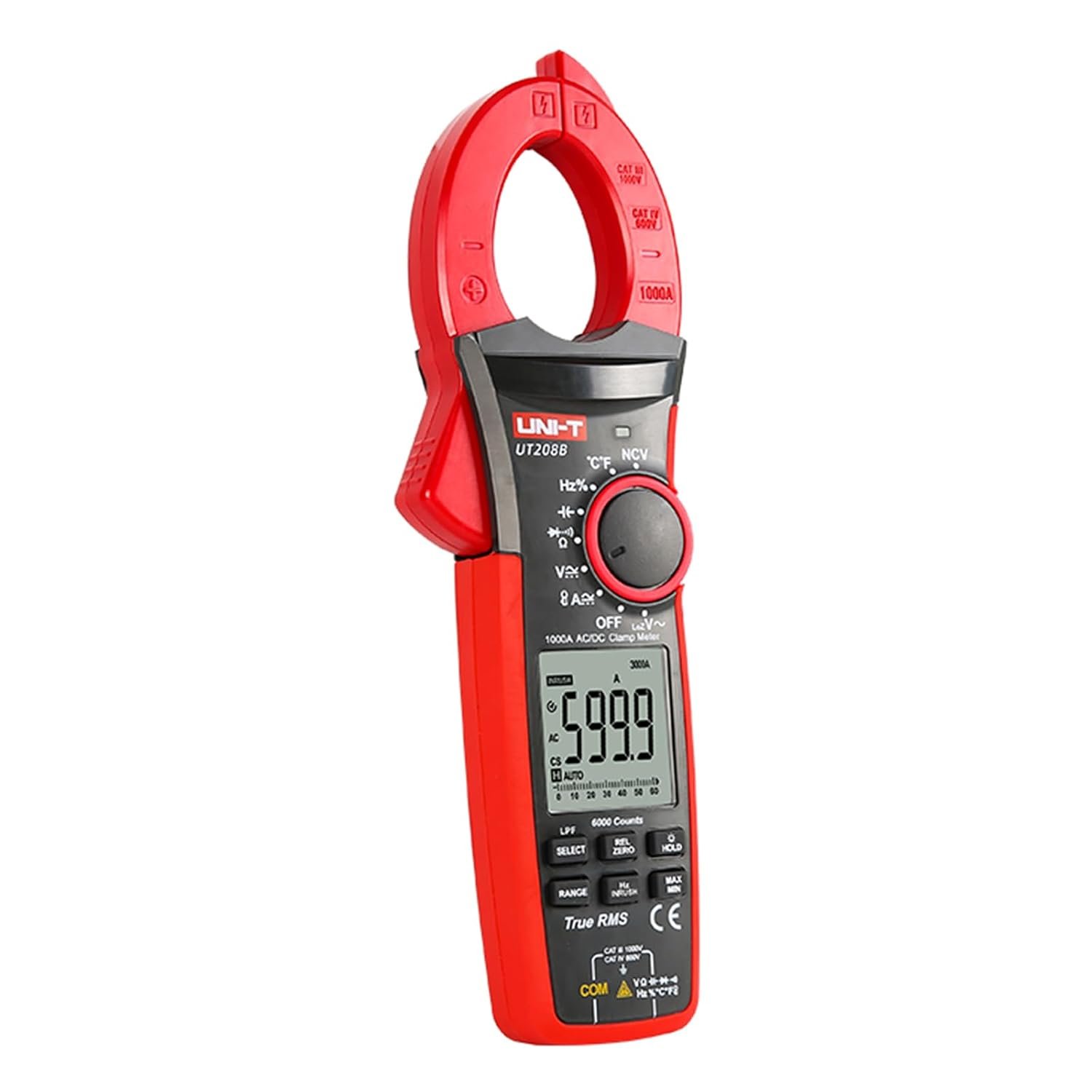

UNI-T UT208B True RMS Digital Clamp Meter- 1000A AC/DC
Click To Zoom
UNI-T UT208B True RMS Digital Clamp Meter- 1000A AC/DC
UNI-T UT208B True RMS Digital Clamp Meter- 1000A AC/DC

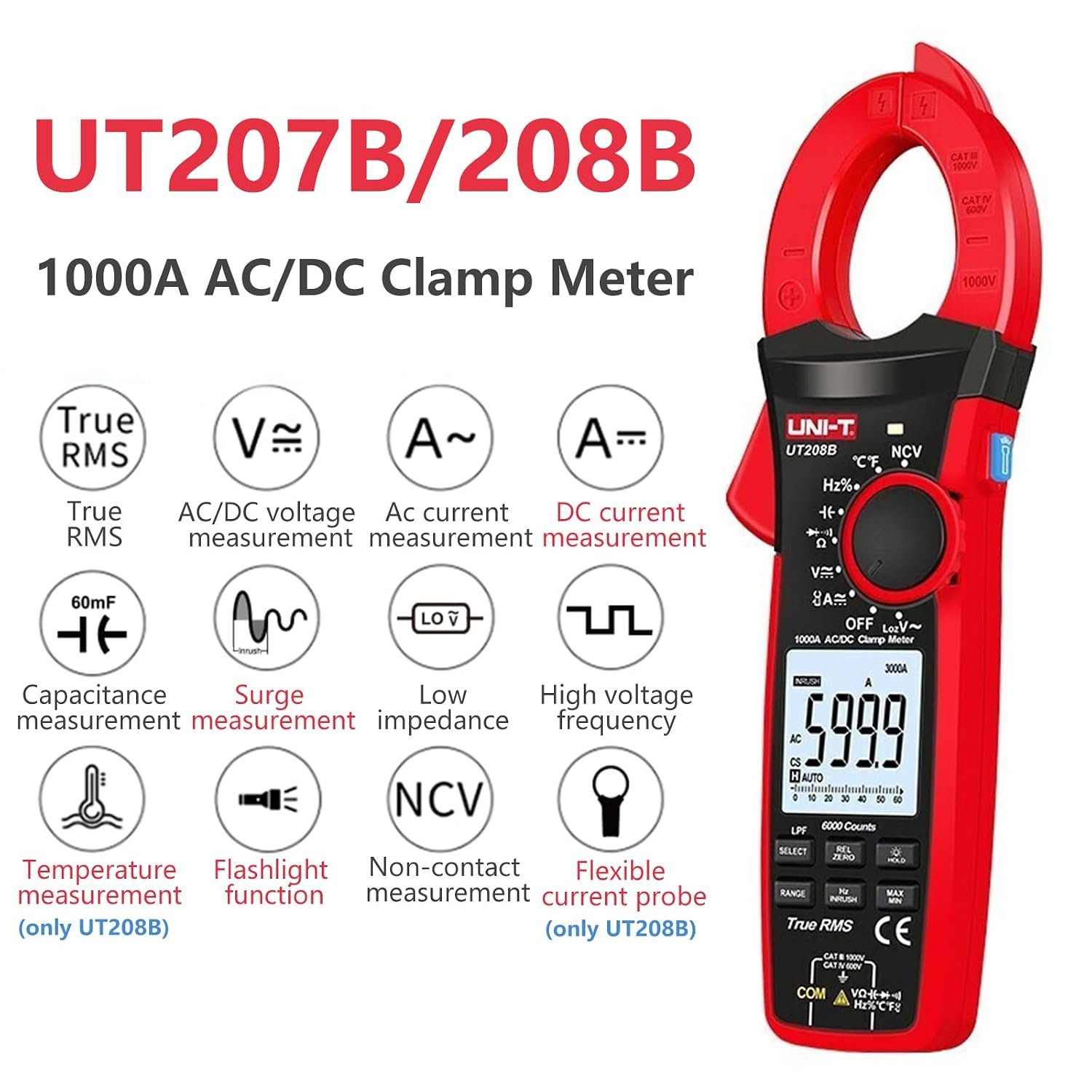

UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, auto scale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating and certified by CE/ETL. The UT208B comes with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current. The UT208B also features high-precision temperature measurement with 0.1 °C resolution and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 9,850
(GST inclusive price) i-
Base Value: ₹ 8347.5
-
GST: (18) % ₹ 1502.5
-
Total Value ₹ 9850
₹13,250.00
( - 26% OFF )
Description
Key Features
- Flashlight button: Short press this button to turn on/off the flashlight.
- NCV Multi-Segment Display and audio/visual alarm
- True RMS/Auto backlight
- NCV/Function retention

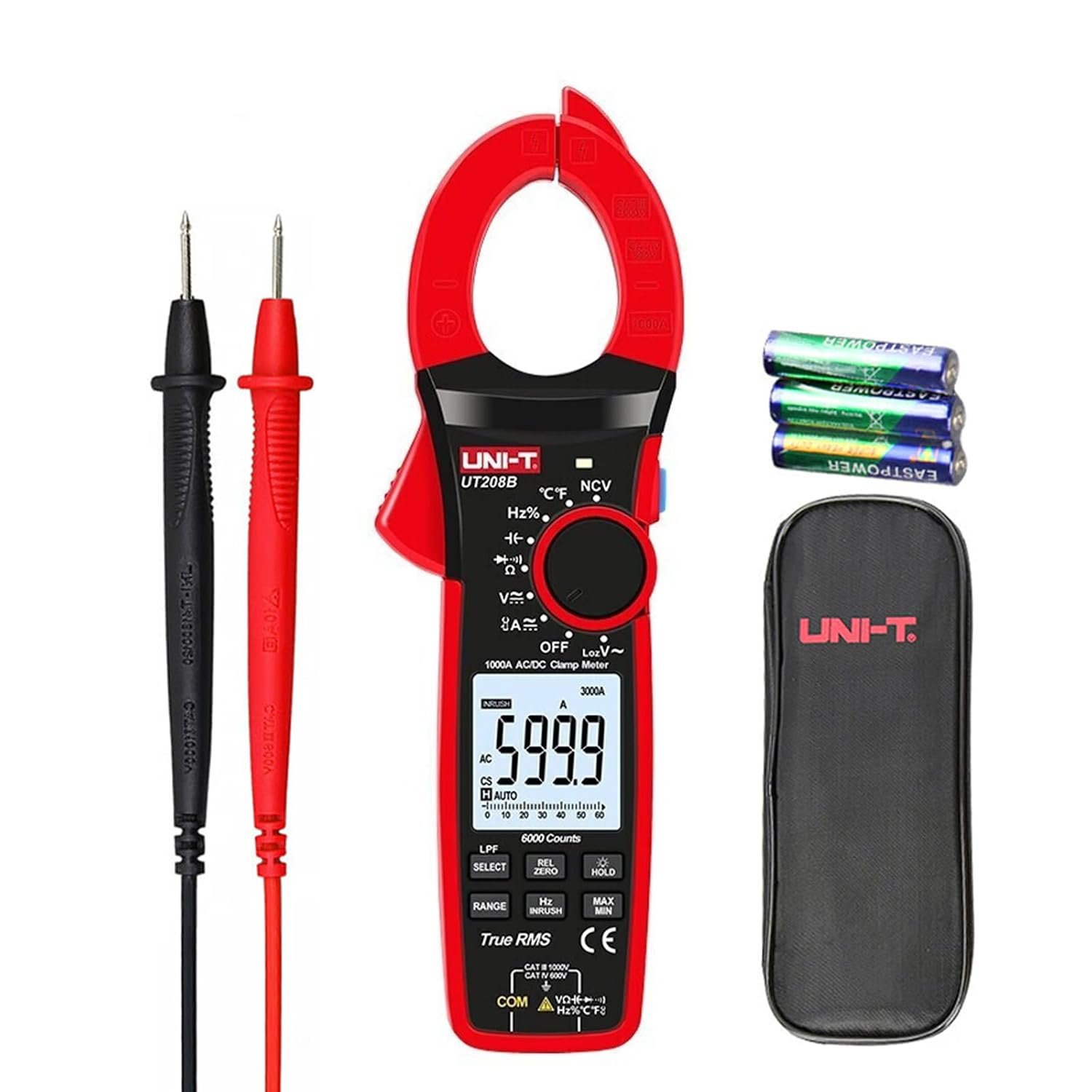

What's in the box?
|
Rating & Reviews
Rating

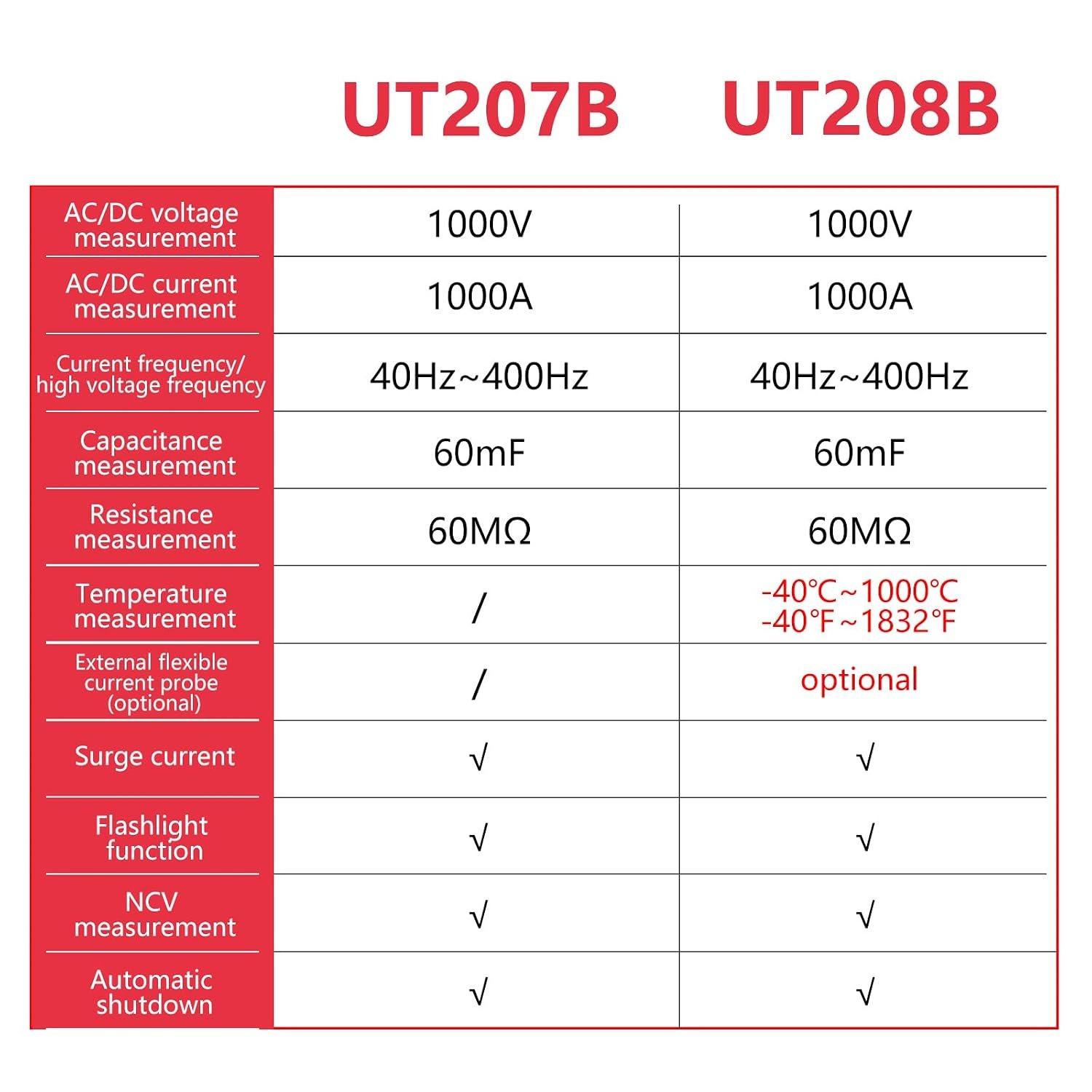

Technical Specifications | ||
Function | Range | UT208B |
| AC current (A) | 1000A | ±(2%+5) |
| DC current (A) | 1000A | ±(2%+5) |
| AC current frequency response | 40Hz~400Hz | |
| Inrush current (A) | 1000A | ±(10%+10) |
| AC voltage (V) | 1000V | ±(1.2%+3) |
| DC voltage (V) | 1000V | ±(0.5%+5) |
| Low pas filter (LPF ACV) | 1000V | ±(2%+5) |
| AC voltage frequency response | 40Hz~400Hz | |
| LoZ ACV | 1000V | ±(2%+5) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Temperature | -40°C~1000°C | ±(1%+2) |
-40°F~1832°F | ±(1%+4) | |
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) |
| Analog bar | 31 | |
| Flexible current probe (optional) | Extends up to 3000A | √ |
| Zero mode | √ | |
| Display count | 6000 | |
| Jaw opening | 42mm | |
| Category ratings | CAT III 1000V, CAT IV 600V | |
| Power | 1.5V battery (R03) x 3 | |
| Display | 43 x 45mm | |
| Product size | 272 x 81 x 43.5mm | |
