UNI-T UT171B True RMS Digital Multimeters
Click To Zoom

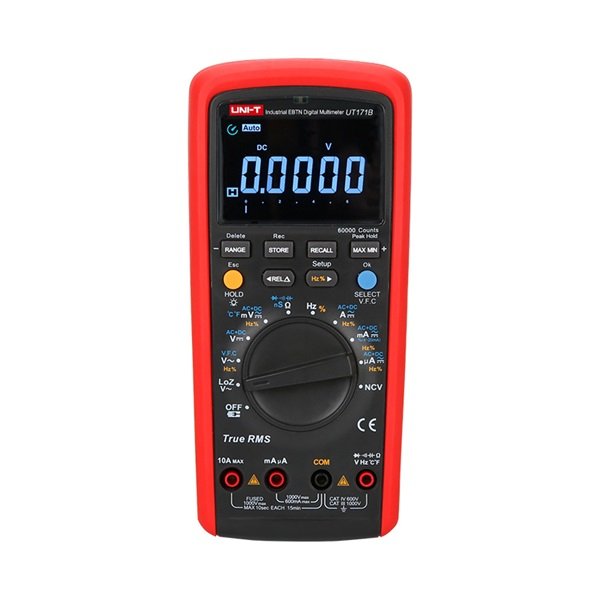

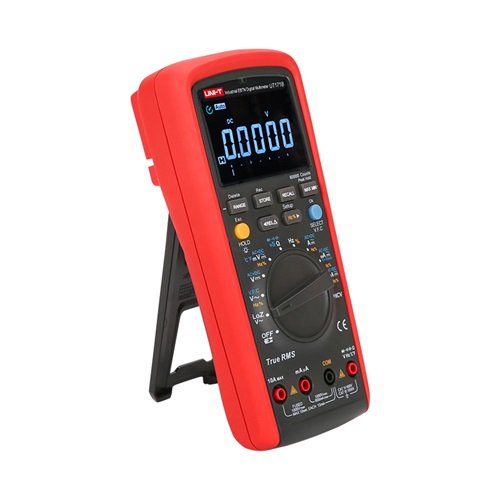

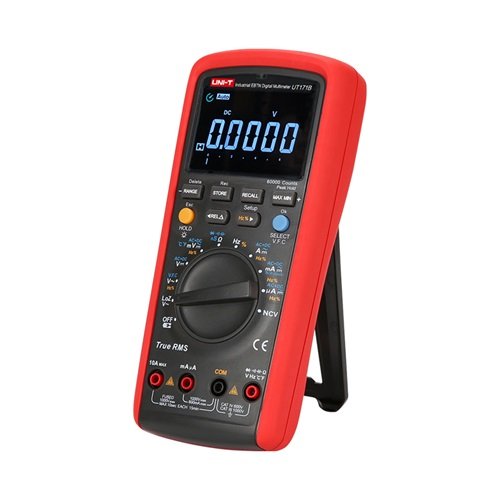

UNI-T UT171B True RMS Digital Multimeters
UNI-T UT171B True RMS Digital Multimeters
The UNI-T UT171B represents a new standard in professional measurement technology with its industrial-grade design and exceptional accuracy. Engineered for electrical professionals who demand superior performance in challenging environments, this advanced multimeter combines precision measurement capabilities, comprehensive data management, and rugged reliability in a feature-rich package that excels in industrial troubleshooting, maintenance, and complex electrical analysis.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 25,180
(GST inclusive price) i-
Base Value: ₹ 21339
-
GST: (18) % ₹ 3841
-
Total Value ₹ 25180
₹33,890.00
( - 26% OFF )
Description
Key Features
- High-Resolution 60,000 Count Display: Enhanced precision with EBTN screen technology for superior visibility
- True RMS Measurement: Accurate readings on modern non-linear loads and distorted waveforms
- 100kHz Measurement Bandwidth: Wide frequency response for comprehensive signal analysis
- AC+DC Measurement Mode: Accurately measures combined signals for complete system evaluation
- Rechargeable 7.4V Li-ion Battery: Extended operation with convenient adapter charging
- VFC Low-Pass Filtering: Eliminates high-frequency noise for accurate VFD measurements
- Peak Hold Function: Captures transient events for detailed analysis
- Data Logging: Store up to 9,999 measurements for comprehensive documentation
- USB/Bluetooth Communication: Flexible connectivity with PC and mobile platforms
- CAT III 1000V / CAT IV 600V Safety Rating: Maximum protection for industrial environments
What's in the box?
|
Rating & Reviews
Rating
Technical Specifications | ||
Function | Range | UT171B |
DC voltage (V) | 1000V | ±(0.025%＋5) |
AC voltage (V) | 1000V | ±(0.4%＋40) |
DC current (A) | 10A | ±(0.15%＋10) |
AC current (A) | 10A | ±(0.75%＋20) |
Resistance (Ω) | 40MΩ /60MΩ | ±(0.05%＋2) |
Admittance (nS) | 60nS | ±(1%＋10) |
Capacitance (F) | 40mF / 60mF | ±(2.5%+5) |
Frequence (Hz) | 10Hz~10MHz | ±(0.01%+5) |
Temperature (℃) | -40℃~1000℃ | ±(1%+3) |
Temperature (℉) | -40℉~1832℉ | ±(1.5％+5) |
Display count |
| 60000 |
Auto/Manual range |
| ✓ |
True RMS |
| ✓ |
Bandwidth (Hz) |
| ✓ |
4~20mA loop |
| ✓ |
LoZ (ACV) |
| ✓ |
Diode |
| ✓ |
Continuity buzzer |
| ✓ |
Duty cycle |
| ✓ |
NCV/Data hold/MAX/MIN |
| ✓ |
Relative mode |
| ✓ |
Data storage |
| 9999 |
Display type |
| EBTN |
Analog bar graph |
| 31 |
LCD backlight |
| ✓ |
Mis-plug alarm |
| ✓ |
Low battery indication |
| ✓ |
Auto power off |
| ✓ |
Input protection |
| ✓ |
Input impedance for DCV | ≥10MΩ | ✓ |
Power |
| 7.4V 2000mAh Li-ion battery |
Display | 70.6mm x 35.3mm |
|
Product color | Red and grey |
|
Product net weight | 384g |
|
Product size | 206mm x 95mm x 55mm |
|
Optional accessories | Bluetooth adaptor (UT-D07) |
|
