Amprobe TIC 300 PRO High Voltage Detector

Amprobe TIC 300 PRO High Voltage Detector
Amprobe TIC 300 PRO High Voltage Detector
Amprobe TIC 300 PRO High Voltage Detector
Amprobe TIC 300 PRO High Voltage Detector
Amprobe TIC 300 PRO High Voltage Detector
Amprobe TIC 300 PRO High Voltage Detector

Click To Zoom

Amprobe TIC 300 PRO High Voltage Detector

Amprobe TIC 300 PRO High Voltage Detector

(Based On 10 Reviews)

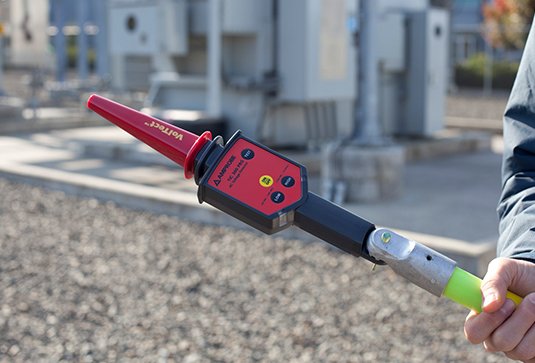

MSHA certified and intrinsically safe, the Amprobe TIC 300 PRO High Voltage Detector with VolTect™ alert is a rugged, reliable, non-contact, high voltage tester for utility, industrial, and mine safety applications up to 122kV. Select low or high voltage levels to verify the presence of voltage without contacting the energized conductor. When this high voltage electricity tester is moved within close proximity of an energized line, the intuitive VolTect™ alert warns users with bright flashing lights and loud beeps. All functionality is available through push buttons designed for easy use with PPE gloves. A universal adapter Hot Stick TIC 410A is available for voltage higher than 1500 VAC.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 43,430

(GST inclusive price) i
  • Base Value: ₹ 36805.1
  • GST: (18) % ₹ 6624.9
  • Total Value ₹ 43430

₹58,455.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • MSHA certified and intrinsically safe
  • Utility tool for checking transmission lines, power distribution equipment, down power lines, fuses, and load break connectors
  • Visual and audible voltage indication

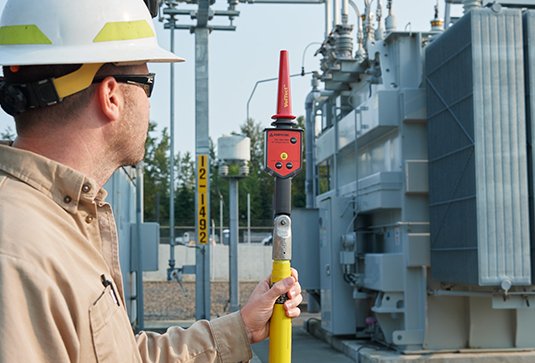

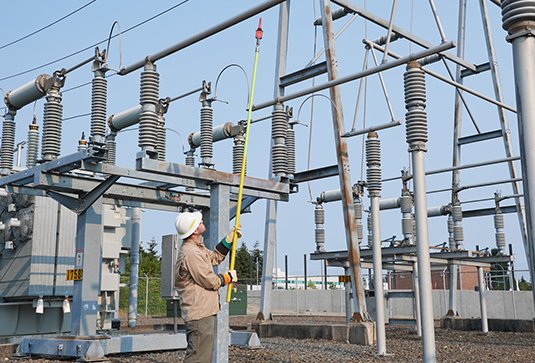

  • High-voltage setting 1500 V ac to 122,000 V AC (with TIC 410A Hot Stick) for utility applications such as transmissions lines, power distribution equipment, down power lines, transformers and more.
  • Low-voltage setting for checking voltage presence in breaker panels, breakers, power outlets and wiring
  • A unique self-test feature so there is no need to connect directly to a current carrying conductor – saving your time and keeping you safe.
  • Ergonomic design with a convenient handle
  • Drop proof up to 6 feet

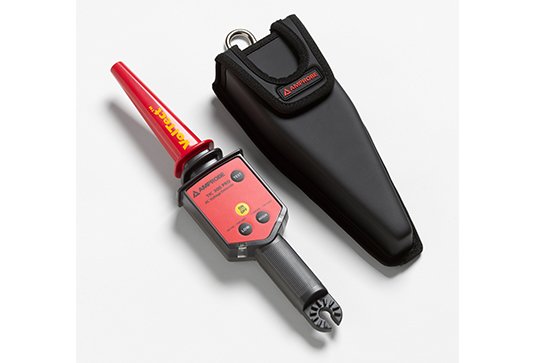

What's in the box?

  • TIC 300 PRO
  • Hard carrying case
  • 9 V battery (installed)

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

SpecificationsTIC 300 PRO

Operating Voltage

LOW Range: 30 to 1500 VAC HIGH Range: 1500 VAC to 122 kV AC *Use only with Amprobe optional accessory hot stick and proper safety equipment for voltages up to 122 kV AC

Operating Temperature

0°C to +52°C (32°F to +125°F);RH < 90% RH

Storage Temperature

0°C to +52°C (32°F to +125°F) battery removed

Environment

< 2000m,outdoor operation

Power

9 volt alkaline battery

Power Consumption

OFF: 340uA Low / High Detection mode: 39 mA

Duty Cycle

Continuous

Response Time

Instantaneous

Dimensions

345(L) x 75(W) x 47(H)mm (13.5 x 3.0 x 1.8 in)

Weight

243g (0.5 lb.)

Supplied with

User manual, battery and carrying case



Range
Non-Contact Voltage Detectio30-1500 VAC 1500- 122,000 VAC (with Hot Stick TIC 410A)

Typical

Sensitivity



Self-Test Verification
Line voltage (kV)

Phase to ground

Phase to phase

phase to phase

(ft-in) Low Voltage

(m)

(ft-in)

(m)

0.03 to 1.0

note 1

note 1

note 1

note 1

1.1 to 15.0

2-1

0.64

2-2

0.66

15.1 to 36.0

2-4

0.72

2-7

0.77

36.1 to 46.0

2-7

0.77

2-10

0.85

46.1 to 72.5

3-0

0.90

3-6

1.05

72.6 to 121

3-2

0.95

4-3

1.29



Low VoltageHigh Voltage

Voltage

(Phase to neutral with 890k Ohm load)

Detection Range (From the tip of

the probe to the target line)

Voltage

(Phase with no load)

Detection Range (From the tip of the

probe to the target line)

30 V

Average

1.5 kV

Average

75 V

1.5”

2.0 kV

0.5”

100 V

6.5”

4.0 kV

1”

120 V

8.5”

10.0 kV

2”

220 V

10”

15.0 kV

8”

500 V

1’1”

20.0 kV

1’2”

1000 V

1’7”

25.0 kV

1’8”



2’10”



2’2”
