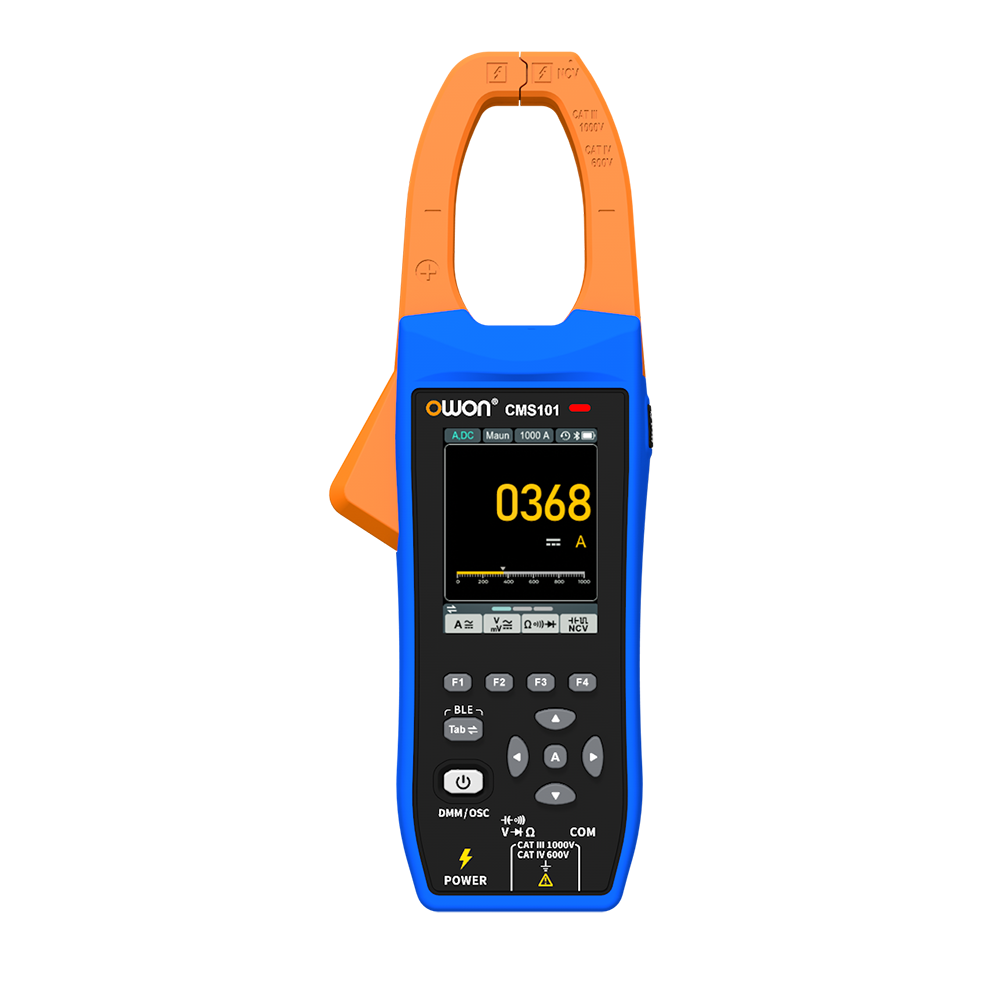

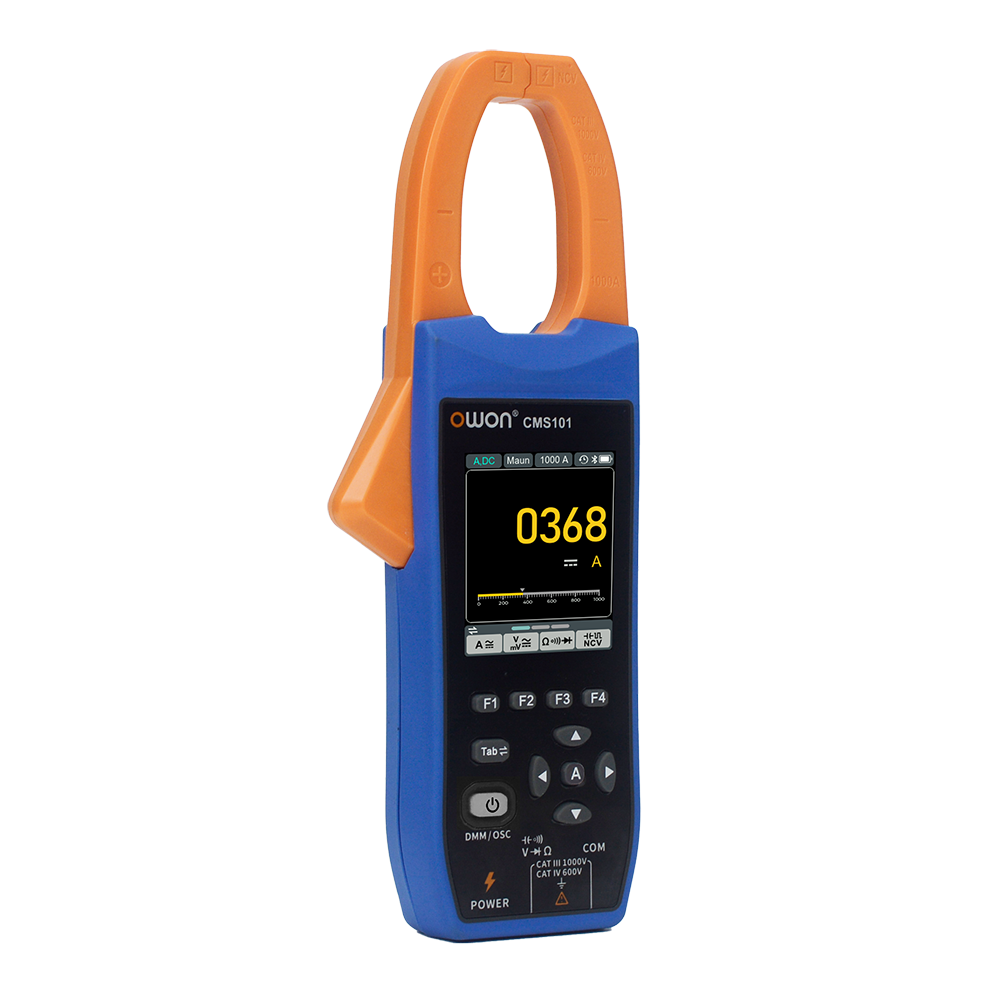

OWON CMS101 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder

OWON CMS101 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder
OWON CMS101 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder
OWON CMS101 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder

Click To Zoom

OWON CMS101 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder

OWON CMS101 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder

(Based On 10 Reviews)

Electrical maintenance technicians
Industrial automation engineers
EV and motor diagnostics

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 8,050

(GST inclusive price) i
  • Base Value: ₹ 6822
  • GST: (18) % ₹ 1228
  • Total Value ₹ 8050

₹10,800.00

( - 25% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • 4-1/2 Dgt (20000) Count TRMS
  • 2.8 inch Multicolour LCD Display
  • BLUETOOTH Communication to iOS/Android
  • 1000 AC / DC Ampere with Inrush Current (1Khz Bandwidth)
  • 1000 AC / DC Voltage (1 Mhz Bandwidth)
  • Inbuilt Oscilloscope / Recorder
  • Measure Voltage & Ampere waveform simultaneously
  • 38mm Elongated Jaw Opening
  • Resistance , Capacitance , Frequency , Duty Cycle
  • NCV , APO with MAX/MIN /Surge Current Mode
  • Relative Value / Dc Current Reset Mode
  • One Click Measurement Touch key pad
  • Chargeable Li-Ion Battery
  • Automatic Shutdown for Battery Saving

What's in the box?

  • Test Probes
  • USB Cable
  • Carry Bag

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

General

  • Display: 2.8-inch IPS LCD
  • Display Counts: 2000 counts
  • True RMS: Yes
  • Clamp Opening: 38 mm
  • Battery Type: 1 × 18650 Lithium Battery (3.7V)
  • Dimensions (L × W × H): 248 × 94.5 × 37.8 mm
  • Data Interface: Bluetooth (Mobile App Support)
  • Data Storage: CSV export via mobile app
  • Auto Power Off: Yes
  • Low Battery Indicator: Yes

Multimeter Specifications

DC Voltage

  • Range: 20 mV / 200 mV / 2 V / 20 V / 200 V / 1000 V
  • Accuracy: ±(0.1% + 5 digits)

AC Voltage

  • Range: 200 mV / 2 V / 20 V / 200 V / 1000 V
  • Accuracy: ±(0.6% + 10 digits)

DC Current

  • Range: 20 A / 200 A / 600 A / 1000 A
  • Accuracy: ±(2.0% + 5 digits)

AC Current

  • Range: 20 A / 200 A / 600 A / 1000 A
  • Accuracy: ±(2.5% + 5 digits)

Inrush Current

  • Range: 20 A / 200 A / 600 A / 1000 A
  • Accuracy: ±(10% + 10 digits)

Resistance

  • Range: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ
  • Accuracy: ±(0.3% + 5 digits)

Capacitance

  • Range: 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2000 µF / 20 mF
  • Accuracy: ±(3.0% + 5 digits)

Frequency

  • Range: 200 Hz / 2 kHz / 20 kHz / 200 kHz / 2 MHz
  • Accuracy: ±(0.1% + 5 digits)

Duty Cycle

  • Range: 0.1% – 99.9%
  • Accuracy: ±(1.2% + 3 digits)



Oscilloscope Specifications

Analog Bandwidth

  • Voltage: 1 MHz
  • Current: 1 kHz

Channels

1 Channel

Sample Rate

5 MSa/s

Maximum Input Voltage

1000 V

Input Impedance

10 MΩ

Maximum Current Measurement

1000 A

Time Base

2.5 µs/div – 10 s/div

Sensitivity

30 mV/div – 500 V/div

Trigger Modes

Auto / Normal

Trigger Type

Rise / Fall

Measurement Functions

  • RMS
  • Period
  • Frequency
  • Maximum
  • Minimum
  • Peak-to-Peak
  • Average

Sampling Depth

  • 4K
