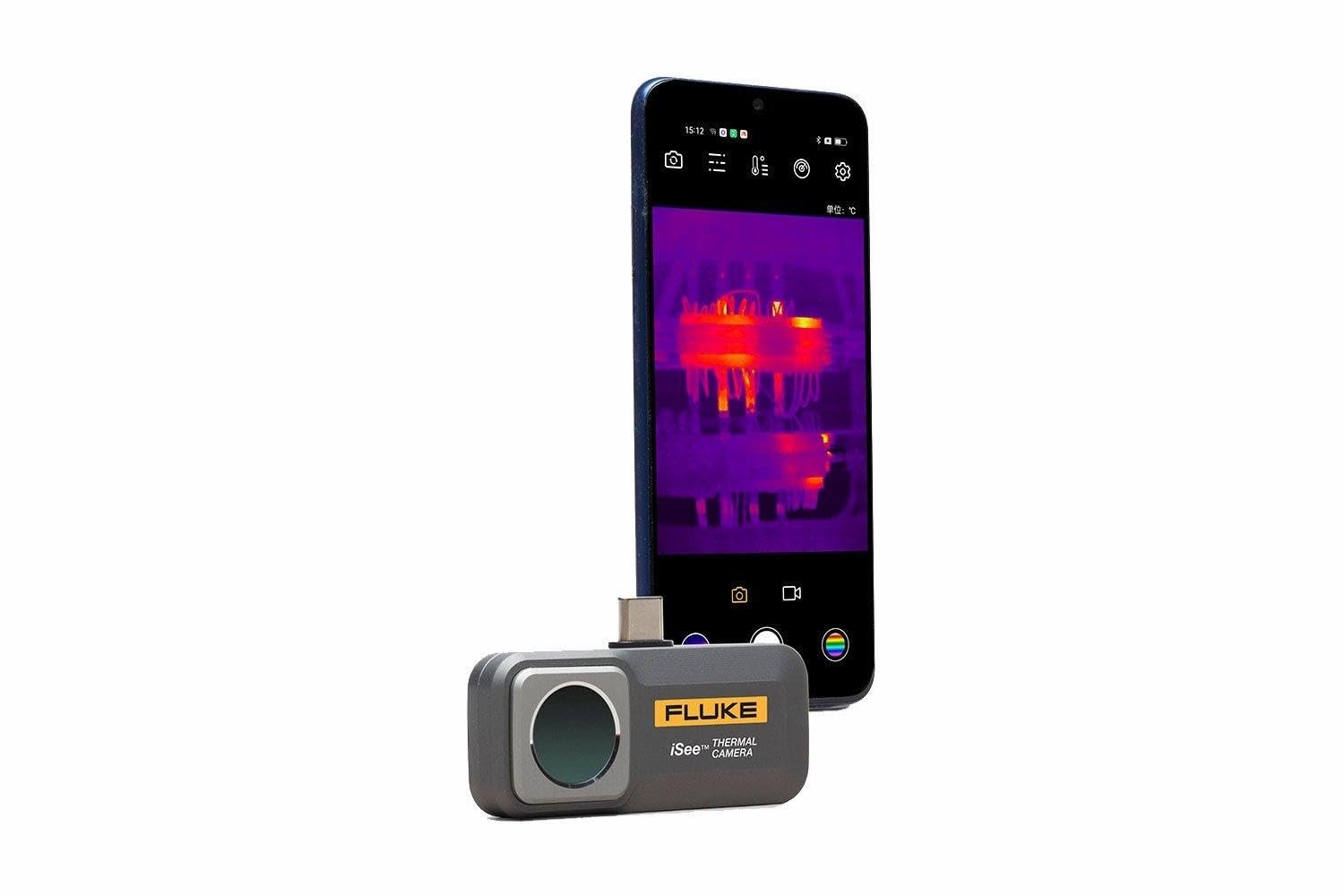

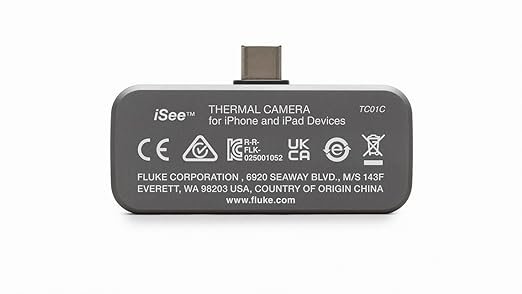

Fluke iSEE Thermal Camera TC01C
Click To Zoom
Fluke iSEE Thermal Camera TC01C
Fluke iSEE Thermal Camera TC01C

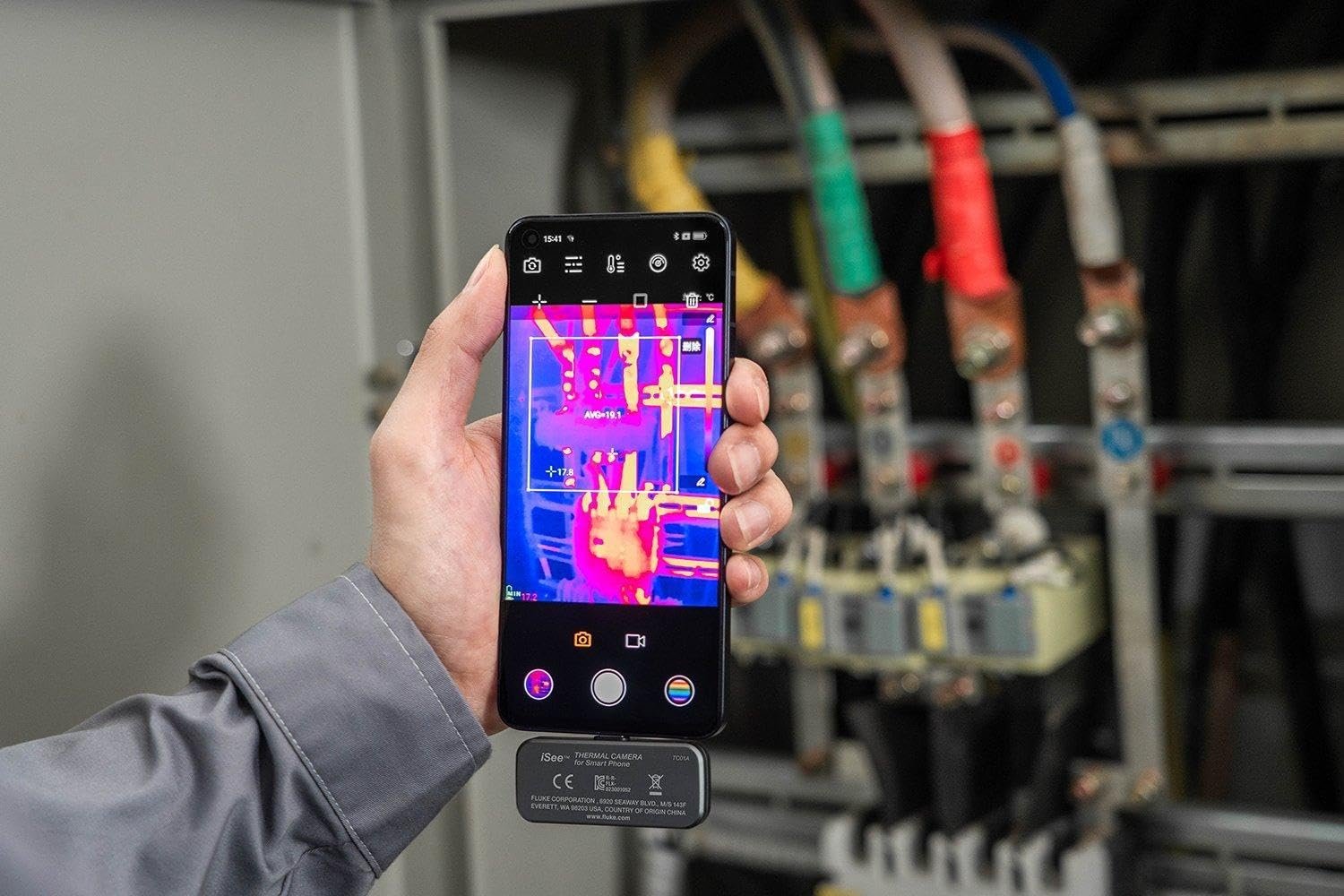

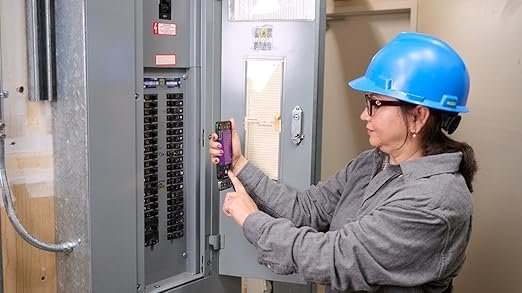

With the Fluke iSeeâ„¢ Mobile Thermal Camera, temperature can be measured and thermal imaging detection can be carried out anytime and anywhere by conveniently inserting it into the Type-C or Lightning interface of a smartphone. It can be widely used in electrical and mechanical inspections, inspection service, HVAC inspection, product R&D and quality control, greatly improving the inspection efficiency.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
2.png)
2 YEARS WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 40,356
(GST inclusive price) i-
Base Value: ₹ 34200
-
GST: (18) % ₹ 6156
-
Total Value ₹ 40356
₹54,720.00
( - 26% OFF )
Description
Detailed image quality comparable to professional thermal cameras
- 256 x 192 pixels, detailed image quality
- Up to 550 ℃, suitable to use in many applications
- 50 mk (0.05 ℃) thermal sensitivity for fine differences
- ±2% or ±2 °C accuracy to ensure reliable results
- 25 Hz frame rate for smooth video recording
- Customize image view with more than 10 standard or custom color palettes
Powerful full temperature range analysis
- Never miss any detail with real-time high and low temperature capture
- Adjustable emissivity to apply with different materials
- Comprehensive temperature analysis for spot, line and area, supported with professional thermal imaging mobile software
- Real-time temperature alarm for timely response of abnormal condition
- Automatic time-lapse capture mode, for unattended operation
- Infrared and visible image comparison for locating, comparing and archiving
Real-time image sharing for fast and easy communication
- Share and manage images and videos in real-time, for fast and efficient communication
- Easy to add image annotation for smooth communication
- Automatically generate infrared inspection reports, easy for reporting, archiving and sharing (TC01B only)
Small and portable, takes only a second to get started
- Compact design as light as 22 g
- The iSee is made of high quality specially treated aluminum material with laser etched surface
- Up to 1 meter drop test, IP56 (TC01B) ingress protection, adhering to the Fluke durability and quality
- Optimized Fluke iSee application interfaces and menus, to enhance user experience with easy to access functions
What's in the box?
|
Rating & Reviews
Rating
| Performance specifications | |
| IR resolution | 256 x 192 |
| Pixel size | 12 μm |
| Temperature range | -20 °C to 550 °C/-4 °F to 1022 °F |
| Temperature accuracy | ± 2% of rdg or ± 2 °C, whichever is greater (@ 23 °C ± 5 °C ambient temperature) |
| Temperature measurement distance | 0.25 to 5 m（* -20 ℃ to 10 ℃, only for 0.25 to 3 m） |
| Frame rate | 25 Hz |
| Warm-up time | 1 minute |
| Focal length | Fixed focal length: 3.2 mm |
| Shutter mode | Built-in automatic shutter |
| Thermal sensitivity (NETD) | 50 mK |
| Spectral range | 8 to 14 μm |
| Field of view (H x V) | 56° x 42° |
| Spatial resolution | 3.81 mrad |
| General Specifications | |
| USB Interface | Type-C |
| Operating temperature | 0℃ to 40 ℃ |
| Storage temperature | -30 °C to 60 °C |
| Operating humidity | 10% to 90% RH, non-condensing |
| Power consumption | 200 mW (Typical) |
| Drop test | 1 m |
| Ingress protection | IEC 60529: IP56 |
| Operating altitude | 2000 m |
| Storage altitude | 12000 m |
| Dimensions (L x W x H） | 60 x 33.5 x 11.2 mm |
| Weight | 22 g |
| EMC | International IEC 61326-1: Portable Electromagnetic Environment CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. |
| Korea (KCC) Class A equipment (Industrial Broadcast & Communications Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. | |
| USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. | |
| Warranty | 2 years |
