Fluke iSee™ Mobile Thermal Camera - TC03A 25Hz
Click To Zoom
Fluke iSee™ Mobile Thermal Camera - TC03A 25Hz
Fluke iSee™ Mobile Thermal Camera - TC03A 25Hz
384×288 professional-grade resolution, delivering a high-definition experience Professional ISP image algorithms further optimize imaging ±2% or ±2 ℃ accuracy ensures reliable results IFOV 1.14 mrad high spatial resolution, capturing tiny hotspots and subtle temperature differences
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 1,52,000
(GST inclusive price) i-
Base Value: ₹ 128813.6
-
GST: (18) % ₹ 23186.4
-
Total Value ₹ 152000
₹1,86,000.00
( - 18% OFF )
Description
Key Features
- 384×288 professional-grade resolution, delivering a high-definition experience
- Professional ISP image algorithms further optimize imaging
- Adjustable focusing lens, allowing for clear imaging of both near and far targets
- ±2% or ±2 ℃ accuracy ensures reliable results
- IFOV 1.14 mrad high spatial resolution, capturing tiny hotspots and subtle temperature differences
- -20 ~ 550 ℃ range, covering wide applications
- Up to 50 Hz frame rate, delivering smooth images without any smear
- 25°×19° FOV, inspection can be completed in one step

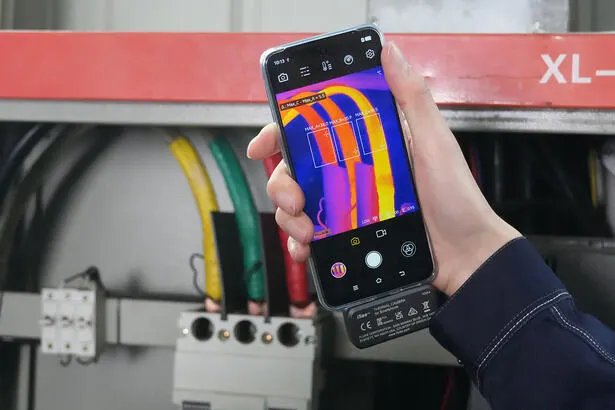

- 3-phase temperature difference calculated automatically and displayed in real time
- Audible/visual/vibration alarms on over-temperature for automatic snapshot/recording, responding to abnormal situations promptly
- Professional thermal imaging software offers comprehensive temperature analysis of spots, lines and areas
- Online editing and real-time sharing of images, videos and reports to achieve efficient communication
- 55g lightweight, portable and easy to carry
- IP54, dust-proof, water-resistant and oil-resistant
What's in the box?Manuals + resources: Fluke iSee™ Mobile Thermal Camera - TC03A/TC03A PRO |
Rating & Reviews
Rating
| Models | TC03A/25Hz | ||
| IR Resolution | 384 x 288 | ||
| SuperResolution | Yes, up to 768 x 576 | ||
| Pixel size | 12 μm | ||
| Temperature range | -20 ℃ to 150 ℃, 100 ℃ to 550 ℃ | ||
| Temperature accuracy | ± 2% of rdg. or ± 2 °C, whichever is greater | ||
| (@ 23 °C ± 5 °C ambient temperature) | |||
| Frame rate | 25 Hz | ||
| Focal length | 10.5 mm | ||
| Focusing mode | Manual | ||
| Nonuniformity Correction (NUC) | Manual / Auto | ||
| Thermal sensitivity (NETD) | 50 mK | ||
| Spectral range | 8 to 14 μm | ||
| Field of View (FOV) | 25° x 19° | ||
| Spatial Resolution (IFOV) | 1.14 mrad | ||
| USB Interface | Type C | ||
| Operating system supported | Android and HarmonyOS | ||
| Operating temperature | 0℃ to 40 ℃ | ||
| Storage temperature | -30 ℃ to 60 ℃ | ||
| Operating humidity | 10% to 90% RH (non-condensing） | ||
| Power consumption | 700 mW (Typical) | ||
| Ingress protection | IEC 60529: IP54 (with the protective cover for Type-C) | ||
| Operating altitude | 2000 m | ||
| Storage altitude | 12000 m | ||
| Dimensions (L x W x H) | 60 mm x 36 mm x 28 mm | ||
| Weight | 55 g | ||
| Warranty | 2 years | ||
| EMC Environment | International IEC 61326-1: Electromagnetic environment for portable equipments CISPR 11: Group 1, Class A Group 1: Equipment intentionally generates and/or uses conductive-coupled RF energy, which is necessary for its internal operation. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) Class A: Device meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. United States (FCC) 47 CFR Part 15 Subpart B. This product is considered an exempt device per clause 15.103. | ||
