Compact Fluke PTi120 Pocket Thermal Camera
Click To Zoom
Compact Fluke PTi120 Pocket Thermal Camera
Compact Fluke PTi120 Pocket Thermal Camera
Key Features
- Automatically organize and file thermal images with Fluke Connect Asset Tagging
- Fully radiometric thermal imager gives you measurement data to the pixel with 120 x 90 infrared resolution (10,800 pixels)
- 3.5” LCD touchscreen display for easy troubleshooting
- -20 °C to +400 °C and -20 °C to 150 °C temperature measurement range models
- Six color palettes
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
2.png)
2 YEARS WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 87,799
(GST inclusive price) i-
Base Value: ₹ 74405.9
-
GST: (18) % ₹ 13393.1
-
Total Value ₹ 87799
₹1,22,280.00
( - 28% OFF )
Description
Specifications: Compact Fluke PTi120 Pocket Thermal Camera
| Key Features | |
| IFOV (spatial resolution) | 7.6 mRad |
| Infrared resolution | 120 x 90 (10,800 pixels) |
| Field of view | 50° H x 38° V |
| Distance to spot | 130:1 |
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to +400 °C and -20 °C to +150 °C models |
| Focus system | Fixed focus, minimum focus distance 22.8 cm |
| USB | Mini USB used to transfer image to PC |
| Wifi | Yes |

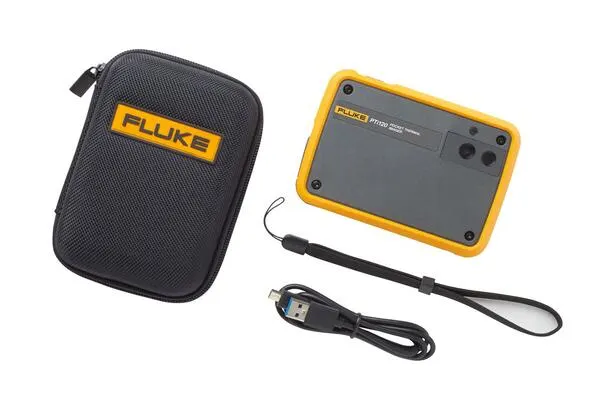

What's in the box?
|
Rating & Reviews
Rating
| Image quality | |
|---|---|
| IR-Fusion technology | Yes, adds the context of the visible details to your infrared image |
| AutoBlend mode | Continuous 0% to 100% |
| Touchscreen display | 3.5’’ (landscape), 320 x 240 LCD |
| Rugged, ergonomic design | Yes |
| Thermal sensitivity (NETD) | 60 mK |
| Frame rate | 9 Hz |
| Data storage and image capture | |
|---|---|
| Memory | 2GB internal flash memory |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Image file formats | Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files |
| Software | Fluke Connect® desktop software—full analysis and reporting software with access to the Fluke Connect system |
| Export file formats with software | JPG, IS2 |
| Measurement range | -20 °C to +400 °C and -20 °C to +150 °C models |
| Battery | |
|---|---|
| Batteries (rechargable) | Internal rechargeable lithium ion battery |
| Battery life | ≥ 2 hours continuous (without WiFi) |
| Battery charging time | ≤ 1.5 hours |
| Battery charging system | Mini USB cord from product to PC |
| AC operation | With separate AC to USB adapter. Not included in box. |
| Power saving | Automatic Shutdown: 5, 10, 15 and 20 minutes or never |
| Temperature measurement | |
|---|---|
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to +400 °C and -20 °C to +150 °C models |
| Accuracy | Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2% |
| On-screen emissivity correction | Yes |
| On-screen reflected background temperature compensation | Yes |
| Color palettes | |
|---|---|
| Standard palettes | 6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale |
| General specifications | |
|---|---|
| Infrared spectral band | 8 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Relative humidity | 95% non-condensing |
| Center-point temperature | Yes |
| Spot temperature | Hot and cold spot markers |
| Safety | EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery) |
| Electromagnetic compatibility | EN301 489-1 V2.1.1 EN301489-17 V3.1.1 |
| US FCC | CFR, Part 15C |
| Vibration and shock | 2G, IEC 68-2-6 and 25G, IEC 68-2-29 |
| Drop | 1 meter |
| Size (H x W x L) | 8.9 cm x 12.7 cm x 2.5 cm (3.5 in x 5.0 in x 1.0 in) |
| Weight (battery included) | 0.233 kg (0.514 lb) |
| Enclosure rating | IP54 |
| Warranty | Two-years |
