Mextech DT-1812 MINI ELCB Tester | RCD Tester

Mextech DT-1812 MINI ELCB Tester | RCD Tester
Mextech DT-1812 MINI ELCB Tester | RCD Tester
Mextech DT-1812 MINI ELCB Tester | RCD Tester
Mextech DT-1812 MINI ELCB Tester | RCD Tester
Mextech DT-1812 MINI ELCB Tester | RCD Tester
Mextech DT-1812 MINI ELCB Tester | RCD Tester
Mextech DT-1812 MINI ELCB Tester | RCD Tester
Mextech DT-1812 MINI ELCB Tester | RCD Tester

Click To Zoom

Mextech DT-1812 MINI ELCB Tester | RCD Tester

Mextech DT-1812 MINI ELCB Tester | RCD Tester

(Based On 10 Reviews)

ELCB Tester is designed to test the leakage initiating separation time of various leakage protectors online, the test Current from 5-1000mA with 12. The measurement range of leakage initiating separation time is 0.001s~1.000s, adopts 4-digit LCD backlight display, convenient and direct-viewing, easy to operate. With high precision, small size, light weight, delicate appearance and easy to carry, the tester is an ideal tool for on-site or indoor detection of various leakage protectors.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 8,500.00

(GST inclusive price) i
  • Base Value: ₹ 7203.4
  • GST: (18) % ₹ 1296.6
  • Total Value ₹ 8500

₹13,290.00

( - 36% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Display Mode: 4 digital large LCD Display, white screen backlight
  • Data Hold: After testing finish, the interface will hold the test result automatic
  • Failure Information Indication: LCD display “Err” over time indication, it is possible that the rated initiating current grade of tested is too small or the leakage protector is faulty.
  • Battery Voltage: when the battery voltage lower than 4.8V, low battery voltage symbol display
  • Working Current: 40mA Max.
  • Test mode 4 digit LCD backlight display.
  • Operating Temperature & Humidity: -10°C - 40°C, Below 80% RH.
  • Storage Temperature & Humidity: -10°C - 60°C, below 70% RH.
  • Power Supply: 1.5V X 4PCS (DC 6V)
  • Test wire Length: 1.5M
  • LCD display Size: 46mm X 43mm
  • Unit Size: 170 X 80 X 83 mm.
  • Weight – 1kg (including all accessories)(meter weight 349g)

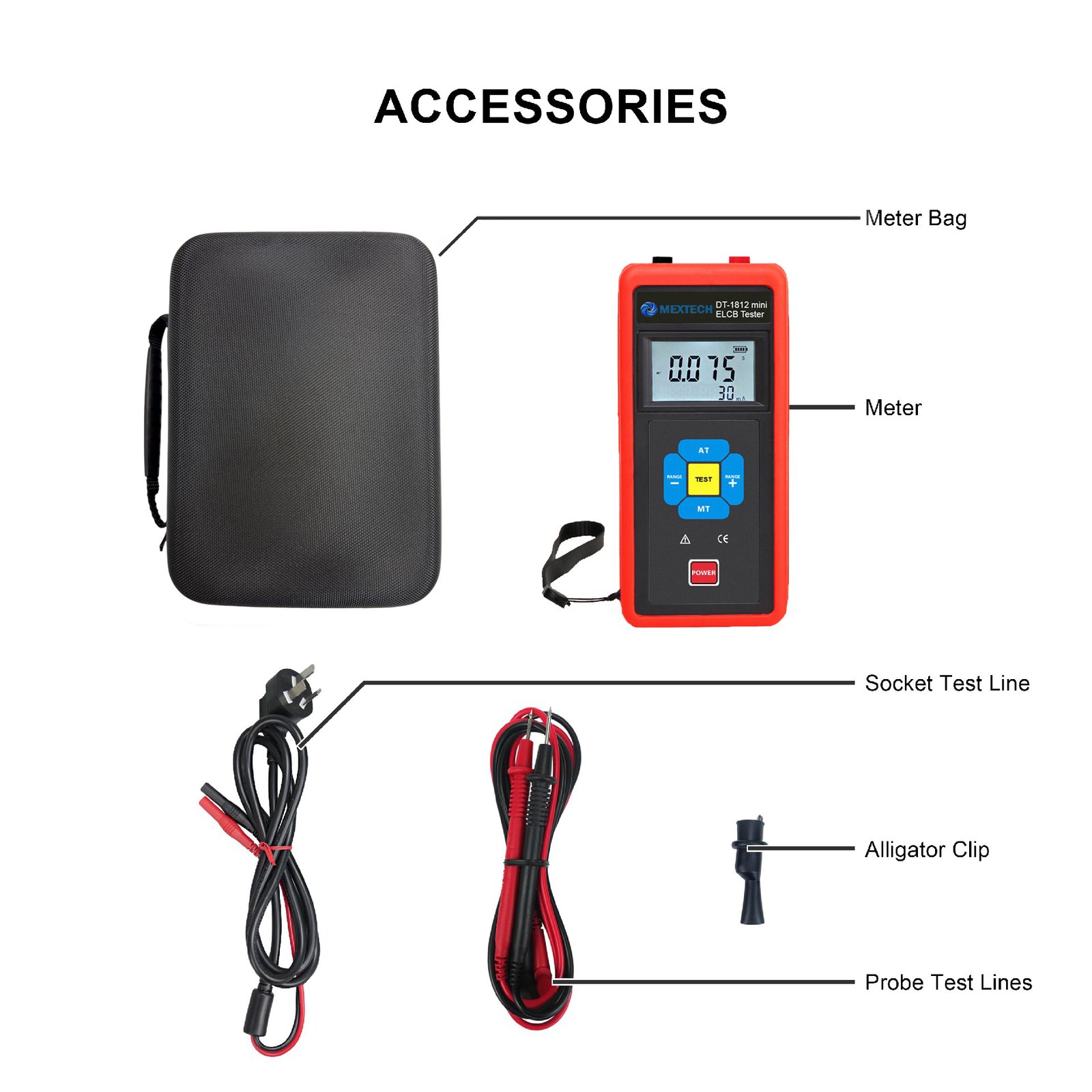

What's in the box?

  • Instruction Manual
  •   Host
  • Meter Bag
  • Probe Test lines 2pcs
  • Alligator Clip
  • 1.5V *4 batteries
  • Socket Test Line.

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Function: Test leakage initiating time and line AC Voltage of various leakage protectors.

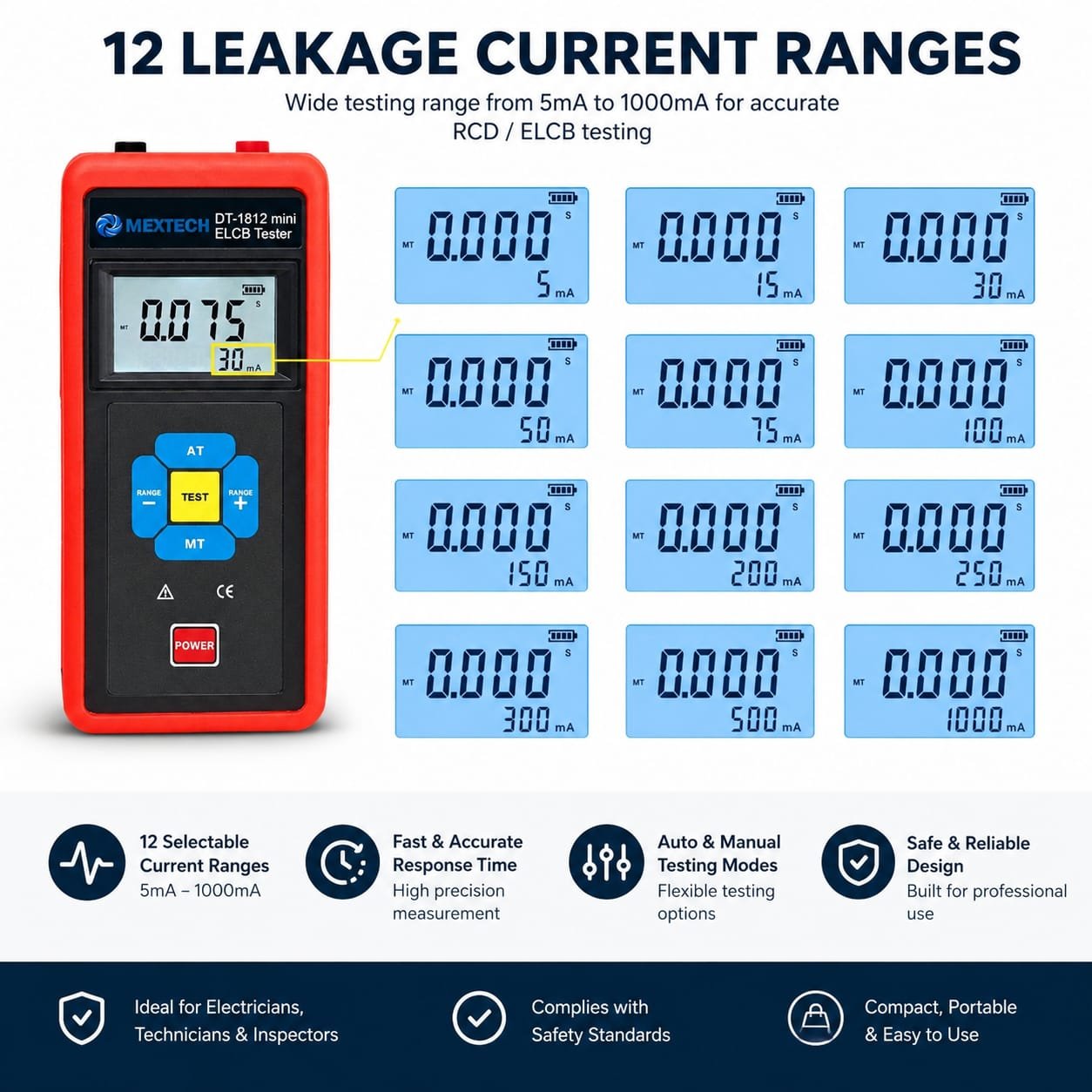

Rated Voltage: AC 220V Leakage Current Gears: 5mA, 15mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA, 1000mA.
Grade Current Accuracy: ±10%rgt±2dgt
Leakage Current Operating Range: 0.001s-1.000s.
Leakage Current Operating Time: ±(5%+3%dgt)
Ac Voltage Range: 0-600V
AC Voltage Accuracy: 2%rgt±5%dgt
Insulation Strength: ≥100MΩ, AC 2kV/rms(between the shell and the screw).
Suitable Safety Standard: IEC1010-1, IEC1010-2-032, Pollution degree 2, CAT III(600V), IEC61326 (EMC Standard).
