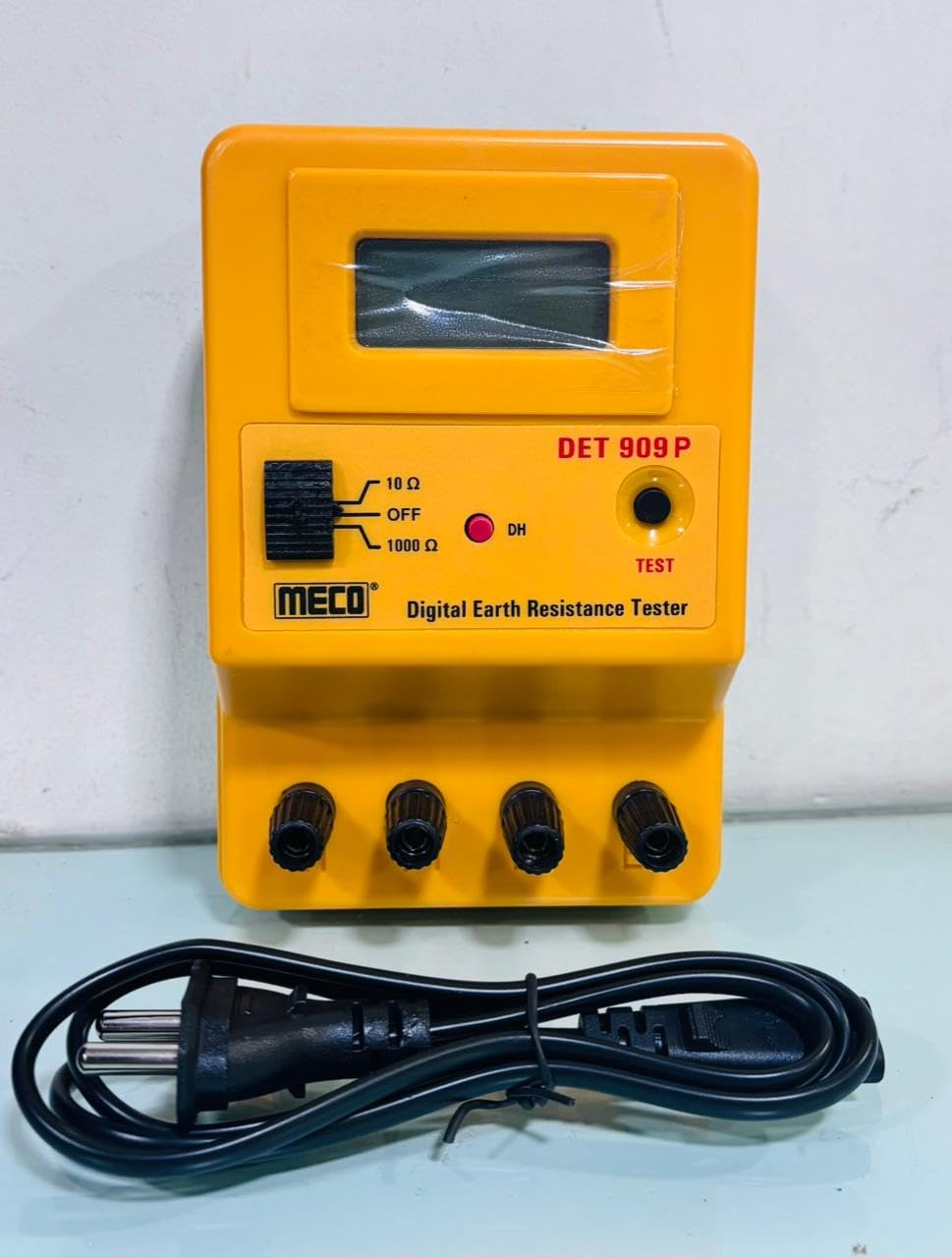

MECO DET 909 P Digital Earth Resistance Tester 10 Ohms & 1000 Ohms

MECO DET 909 P Digital Earth Resistance Tester 10 Ohms & 1000 Ohms
MECO DET 909 P Digital Earth Resistance Tester 10 Ohms & 1000 Ohms
MECO DET 909 P Digital Earth Resistance Tester 10 Ohms & 1000 Ohms
MECO DET 909 P Digital Earth Resistance Tester 10 Ohms & 1000 Ohms

MECO DET 909 P Digital Earth Resistance Tester 10 Ohms & 1000 Ohms

Click To Zoom

MECO DET 909 P Digital Earth Resistance Tester 10 Ohms & 1000 Ohms

MECO DET 909 P Digital Earth Resistance Tester 10 Ohms & 1000 Ohms

(Based On 10 Reviews)

MECO DET 909 P is designed for measurement of Earth Resistance of Earthing in Electrical System. This instrument finds wide applications for testing Earthing installations in Power Industries, Telecommunication Networks, Electrical Systems etc.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 3,599

(GST inclusive price) i
  • Base Value: ₹ 3050
  • GST: (18) % ₹ 549
  • Total Value ₹ 3599

₹5,130.00

( - 30% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Product Accessories

Description

Key Features

  • Earth Resistance Range : 0 - 10 Ohms & 0 - 1000 Ohms
  • 3½ Digit (1999 Counts) 14mm LCD Display with Backlight
  • Measurement Frequency 150Hz
  • Data Hold & Low Battery Indication
  • Light Weight & Portable
  • Extremely Simple to Operate Connect - Press - Read
  • Designed to Reject High Levels of Noise & Interference
  • Designed to Generally Confirm to EN61557
  • Range Selection & Single Person Push Button Operation Switches
  • Two Ranges for Earth Resistance Measurement
  • Functions Icons on Display
  • Rechargeable Battery Operated with Built-in SMPS Charger
  • EN61010-1 CAT III 1000V
  • Sturdy, Elegant & Compact Body



What's in the box?

  • MECO (DET 909 P) Digital Earth Resistance Tester
  • Carrying Case x 1
  • 1.2V 'AA' Rechargeable Batteries (fitted in) x 8
  • Instruction Manual x 1
  • Carton x 1
  • 2 Pin Male-Female Wire for Battery Charging

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Accuracy±(3% rdg.+5 dgt.) For Earth Resistance Vaiid from 5% of Reading to 95% of Range at 23°C ±5°C
Test Current30mA AC (MAX.) for 100 and 7mA AC (max.) for 10000
Conversion Rate2.5 Sec
Over Range Indication"1" is displayed
Operating Temperature0° to 50°C
Storage Temperature-20° to 60°С
Relative Humidity80% Maximum
Low BatteryIs Displayed when Battery Voltage drops below O
Dielectric Strength2.5KV @ 50Hz for 1min, between Input Terminals & Ca
Insulation ResistanceMore than 50MO @ 500V between Input Terminals & Ca
VA-Power< 3.0VA
Power SupplyInternal Rechargeable 1.2V 'AA' x 8 Batteries
Dimensions166 x 111 x 75mm (approx.)
Weight525gms. Including Battery (approx.)
