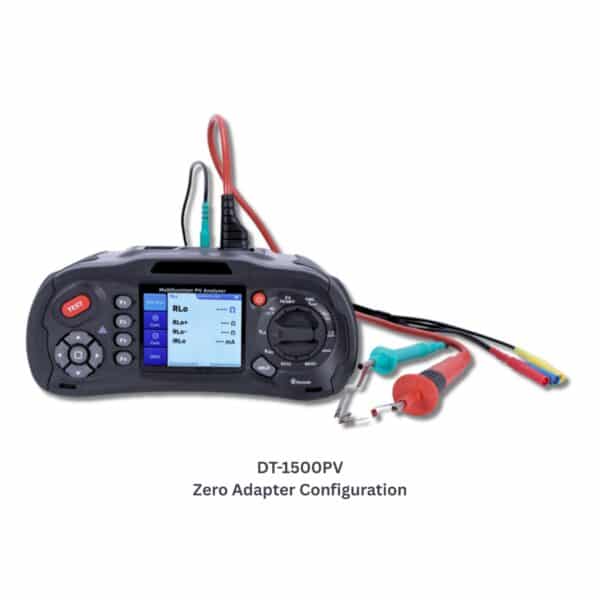

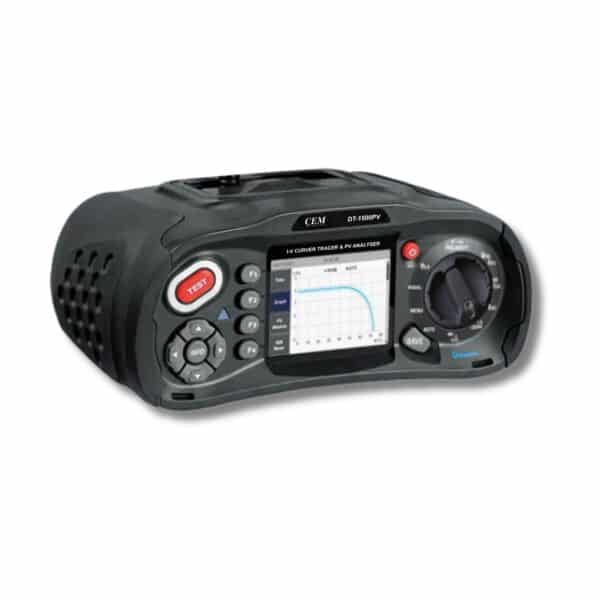

Metravi CEM DT-1500PV IV Curve Tracer PV Analyser
Click To Zoom
Metravi CEM DT-1500PV IV Curve Tracer PV Analyser
Metravi CEM DT-1500PV IV Curve Tracer PV Analyser
IV Curve Tracer, PV Analyser – Multifunction Tester with I-V curve tracing for upto 1500V DC. Class A, conforms to IEC 62446-1 standards for Category 1 & Category 2 tests. Open-circuit voltage (VOC) measurement at the PV module/string up to 1500V DC. Short-circuit (ISC) current measurement at the PV module/string up to 20 A DC. On-location I-V curve results with built-in analyser.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 3,50,000
(GST inclusive price) i-
Base Value: ₹ 296610.2
-
GST: (18) % ₹ 53389.8
-
Total Value ₹ 350000
₹4,00,000.00
( - 13% OFF )
Description
Key Features
- All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests
- Open-circuit voltage (VOC) measurement at the PV module / string up to 1500V DC
- Short-circuit (ISC) current measurement at the PV module / string up to 20 A DC
- On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyser screen

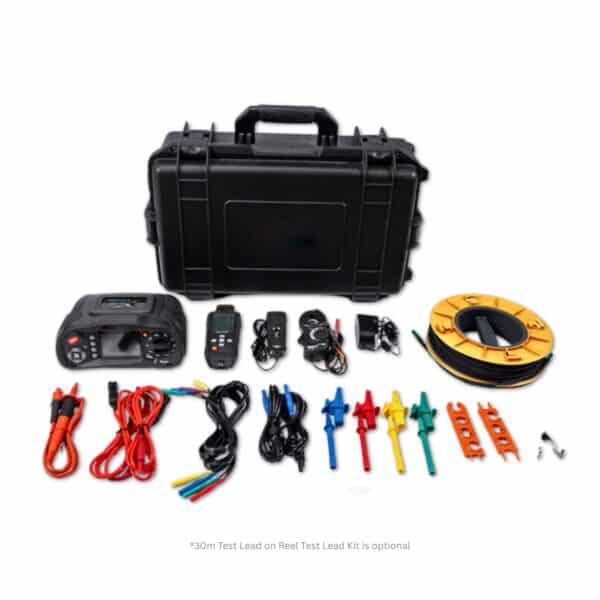

What's in the box?
|
Rating & Reviews
Rating
Maximum Voltage Between any Terminal and Earth Ground | 1500V DC |
Maximum Differential Voltage Between Red and Blue Terminals | 1000V AC |
| Size (LxWxH) | 10.0x25.0x12.5cm (3.8x9.8x4.9in) |
| Weight with Battery | 1.4kg (3.09lb) |
| Battery | 7.4V Lithum Battery/7500mAh |
| Battery Life | Up to 1000 measurements |
| Fuse | F2: FF 500mA, 1000V, IR 10kA, 6.3x32mm |
F3: FF 1A, 1000V, IR 10kA, 6.3x32mm | |
F4: gPV DC 1500V, 30A, IR 30kA (L/R=2ms), 14x65mm | |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -30 to 60°C (-22 to 140°F), battery removed |
| Relative Humidity | Up to 80% |
| Operating Altitude | 2000m |
| Storage Altitude | 12000m |
| Vibration | MIL-PRF-28800F: Class 2 |
| Ingress Protection | IEC 60529: IP40 |
| Computer Interface | Bluetooth |
| Wireless Connection Compatibility | BT 5.0 |
