Fluke 1503 Insulation Resistance Tester handles all the basic insulation testing needs

The Fluke 1503 is a great choice for basic residential and commercial electrical insulation testing. This rugged, compact tool fits in the palm of your hand. The 1503 is the same form factor as the Fluke 1507 but with a few less features. You can count on it to handle the most common tests at a most affordable price. Additional features, like the remote probe, reduce the time needed to perform repetitive testing.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 42,650

(GST inclusive price) i
  • Base Value: ₹ 36144.1
  • GST: (18) % ₹ 6505.9
  • Total Value ₹ 42650

₹59,400.00

( - 28% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Fluke 1503 Insulation Resistance Meter – Buy Fluke Insulation Resistance Meter Online | Get upto 50% Off


The Fluke 1503 Insulation Resistance Meter is a rugged, compact, and highly reliable insulation tester designed for electrical professionals, technicians, and maintenance teams. It delivers accurate insulation resistance measurements and essential electrical diagnostics in a portable form factor, making it perfect for troubleshooting, commissioning, and preventive maintenance in residential, commercial, and light industrial applications





Overview: What is the Fluke 1503 Insulation Resistance Meter?

The Fluke 1503 is a battery-operated digital insulation resistance tester that helps you check the condition and integrity of electrical insulation. It is built to handle the most common insulation testing tasks with ease, offering test voltages of 500 V and 1000 V, a wide insulation resistance range, and additional measurement modes for resistance and voltage. Its ergonomic design and simple user interface make it ideal for field use and everyday testing needs.


Key Features & Benefits of Fluke 1503 Insulation Resistance Meter


✔ Wide Insulation Resistance Testing Range
•    Measures insulation resistance from 0.01 MΩ to 2000 MΩ, enabling you to assess insulation quality across various cables, motors, transformers, and electrical components effectively.


✔ Dual Test Voltage – 500 V and 1000 V
•    Offers two selectable test voltages, giving flexibility for different insulation testing requirements on low- and high-voltage equipment.


✔ Live Circuit Detection for Safety
•    The tester detects live circuits and prevents insulation testing if AC/DC voltage exceeds 30 V, reducing the risk of unsafe tests.


✔ AC/DC Voltage Measurement
•    Measures AC and DC voltage up to 600 V, helping you validate supply voltage before and after insulation testing.


✔ Earth Bond / Low-Ohm Resistance
•    Capable of measuring earth-bond or low resistance values from 0.01 Ω to 20.00 kΩ, which is useful for continuity and grounding checks.


✔ Remote Probe Included
•    Comes with a remote test probe, making repetitive testing easier, especially on hard-to-reach terminals or large equipment.


✔ Large Backlit Display
•    The clear backlit LCD makes readings easy to view even in dimly lit environments.


✔ Portable & Robust Design
•    Compact and lightweight, powered by four AA batteries that enable over 1000 insulation tests, the meter is ideal for onsite work.


✔ High Safety Category
•    Built to meet CAT IV 600 V safety standards, making it suitable for testing at distribution and service entry points.





Typical Uses of Fluke 1503 Insulation Resistance Meter

  • Insulation evaluation on motors, generators, and transformers
  • Cable insulation testing during installation and maintenance
  • Preventive electrical maintenance and troubleshooting
  • Verification of insulation in control panels and junction boxes
  • Safety checks for industrial and commercial wiring systems



FAQs (Frequently Asked Questions) Related to Fluke 1503 Insulation Resistance Meter


Q1: What is insulation resistance testing and why is it important?
Insulation resistance testing measures the resistance of electrical insulation to help identify degradation, moisture ingress, or faults. Low insulation resistance can lead to equipment failure, electrical leakage, or safety hazards. Testing ensures reliability and safety of electrical systems.


Q2: Can the Fluke 1503 measure live circuits?
It can measure AC/DC voltage up to 600 V, but the insulation test function will not start if voltage exceeds 30 V to protect the user and equipment.


Q3: How many tests can the Fluke 1503 perform on one set of batteries?
Powered by four AA alkaline batteries, it can perform at least 1000 insulation tests, making it suitable for extended field use.


Q4: Is this meter suitable for industrial environments?
Yes — with a CAT IV 600 V rating, it’s designed for high safety and can be used in demanding environments at electrical distribution points and industrial panels.


Q5: Can I use this meter for cable insulation testing?
Absolutely — this tester is ideal for checking insulation resistance on cables, motors, switchgear, and other electrical components.



Conclusion - Fluke 1503 Insulation Resistance Meter


The Fluke 1503 Insulation Resistance Meter is a dependable, professional-grade tool that combines precision, safety, and ease of use for all your insulation testing needs. Whether you’re an electrician, technician, or maintenance professional, this meter delivers trusted performance for preventive maintenance and troubleshooting — backed by Fluke’s legendary reliability.


We at Insuzo guarantee that you will receive the highest quality Fluke multimeters available online at the most competitive pricing, along with excellent customer service.  We have other testing and measuring equipment as well like - fluke temperature gun, metravi elcb tester, multimeter and clamp meter etc. Buy it now to see the difference!

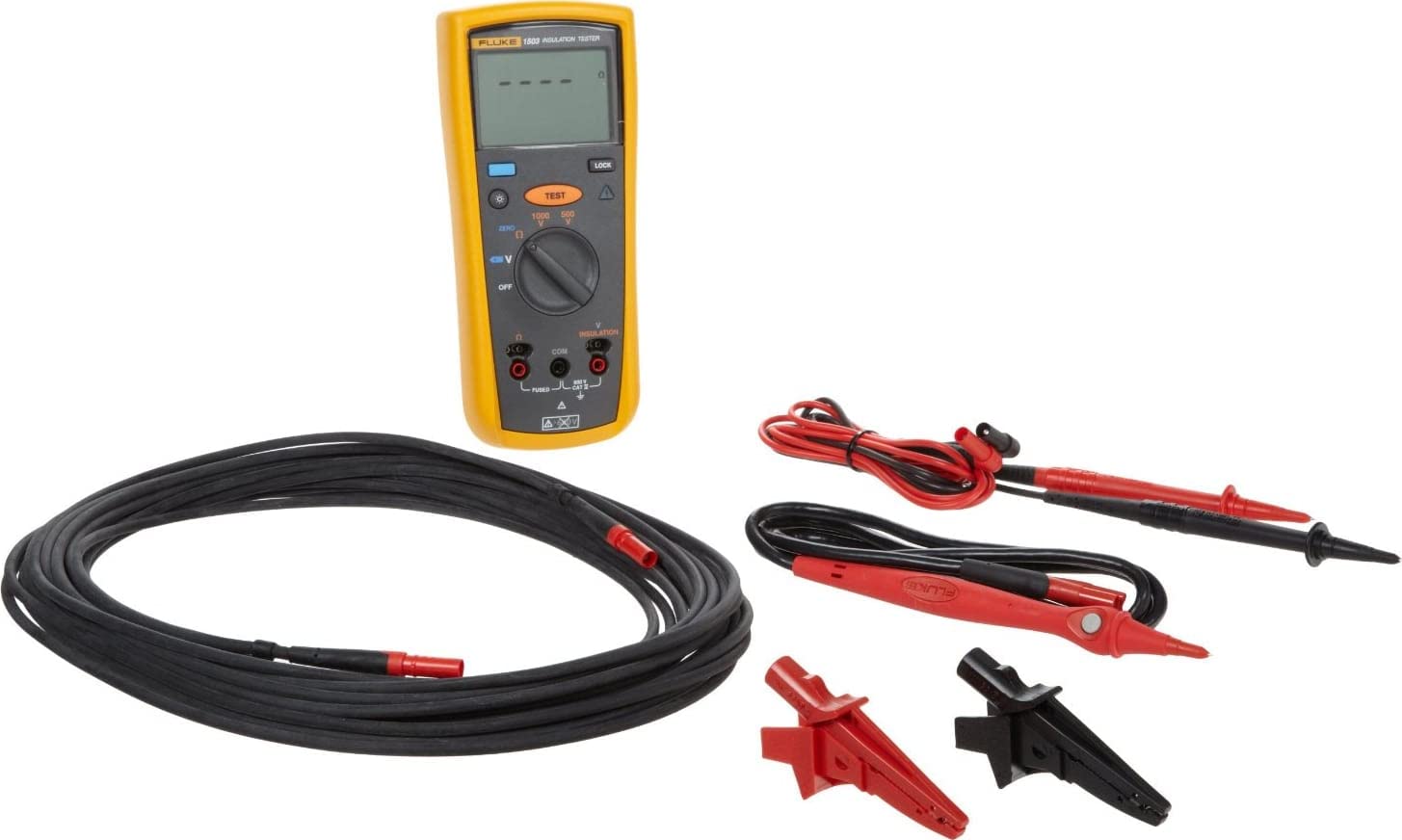

What's in the box of Fluke 1503 Insulation Tester?

  • Remote probe
  • Test leads
  • Test probes
  • Alligator clips
  • User documentation

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

AC/DC Voltage Measurement
AccuracyRange600.0 V
Resolution0.1 V
50 Hz to 400 Hz ±(% of Rdg + Digits)±(2% + 3)
Input impedance3 MΩ (nominal), < 100 pF
Common mode rejection ratio (1 kΩ unbalanced)> 60 dB at DC, 50 or 60 Hz
Overload protection600 V rms or DC
Earth Bond Resistance Measurement
Range/Resolution20.00 Ω0.01 Ω
200.0 Ω0.1 Ω
2000 Ω1.0 Ω
20.00 kΩ0.01 kΩ
Accuracy±(1.5% + 3)
Overload protection2 V rms or DC
Open circuit test voltage> 4.0 V, < 8 V
Short circuit current> 200.0 mA
Insulation Specifications
Measurement range0.01 MΩ to 2000 MΩ
Test voltage500 V, 1000 V
Test voltage accuracy+ 20%, - 0%
Short circuit current1 mA nominal
Auto dischargeDischarge time < 0.5 second for C = 1 µF or less
Live circuit indicatorInhibit test if terminal voltage > 30 V prior to initialization of test
Maximum capacitive loadOperable with up to 1 µF load
Measure accuracy500 V±(1.5% + 5)
1000 V±(1.5% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ
General Specifications
Maximum voltage applied to any terminal:600 V AC rms or DC
Storage temperature-40°C to 60°C (-40°F to 140°F)
Operating temperature-20°C to 55°C (-4°F to 131°F)
Temperature coefficient0.05 x (specified accuracy) per °C for temperatures < 18°C or > 28°C (< 64°F or > 82°F)
Relative humidity0% to 95% @ 10°C to 30°C (50°F to 86°F)
0% to 75% @ 30°C to 40°C (86°F to 104°F)
0% to 40% @ 40°C to 55°C (104°F to 131°F)
VibrationRandom, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
Shock1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)
Electromagnetic compatibilityIn an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)
SafetyComplies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)
CertificationsCSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition
BatteriesFour AA batteries (NEDA 15A or IEC LR6)
Battery lifeInsulation test use:Tester can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
Resistance measurements:Tester can perform at least 2500 earth bond resistance measurements with fresh alkaline batteries at room temperature. These are standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off.
Size (H x W x L)5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
Weight550 g (1.2 lb)
IP ratingIP40
AltitudeOperating2000 m CAT IV 600 V, 3000 m CAT III 600 V
Non-operating (storage)12,000 m
Over-range capability110% of range
Included accessoriesTL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe
