UNI-T UT202A+ Digital Clamp Meter
Click To Zoom
UNI-T UT202A+ Digital Clamp Meter
UNI-T UT202A+ Digital Clamp Meter
The UT202+ clamp meter offers reliable voltage measurement up to 600V and includes a high-voltage frequency detection range from 10Hz to 10kHz. It features NCV (Non-Contact Voltage) electric field detection with both visual and audible alerts for enhanced safety. Designed for versatility, the device also supports capacitor measurements up to 4mF and includes a temperature measurement function. Its intelligent circuit design incorporates an automatic power-saving mode to prolong battery life. Additionally, it is equipped with comprehensive false detection protection and can safely endure up to 600V (30KVA), with built-in alarms for overvoltage and overcurrent conditions.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 2,206
(GST inclusive price) i-
Base Value: ₹ 1869.5
-
GST: (18) % ₹ 336.5
-
Total Value ₹ 2206
₹3,000.00
( - 26% OFF )
Description

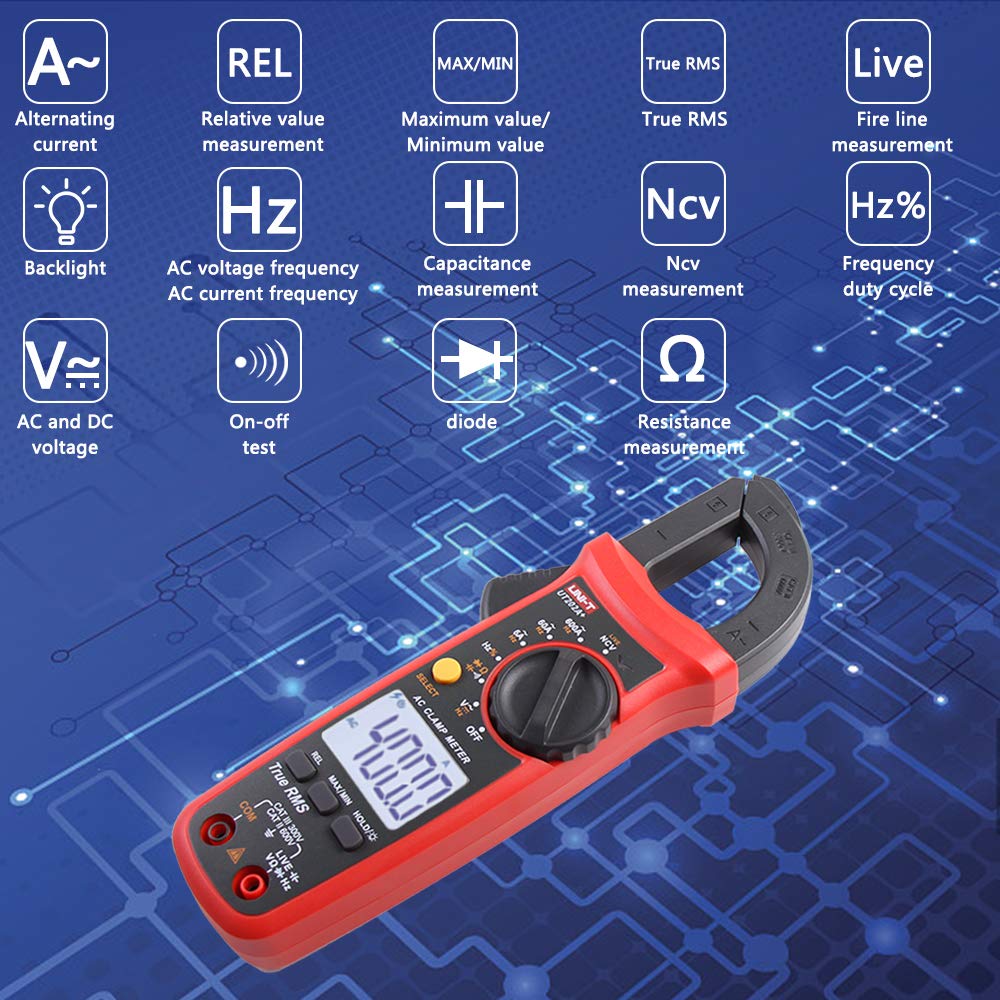

Key Features
- True RMS
- LCD backlight
- Larger screen and display digits
- 60mF large capacitance measurement

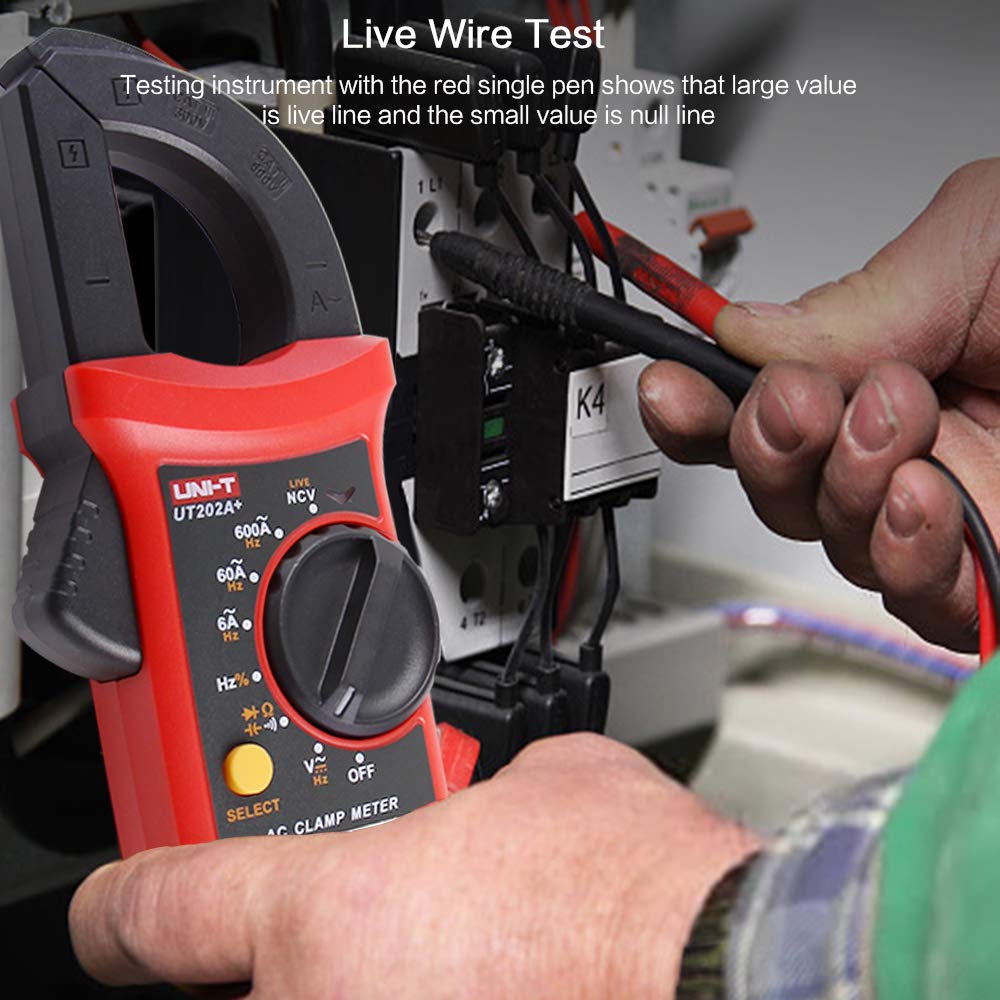

- Neutral/live wire test
- Auto range
- Data hold
- Non-Contact Voltage (NCV)
- MAX/MIN
- Continuity test
- Low battery indication
- Diode
- Auto power off

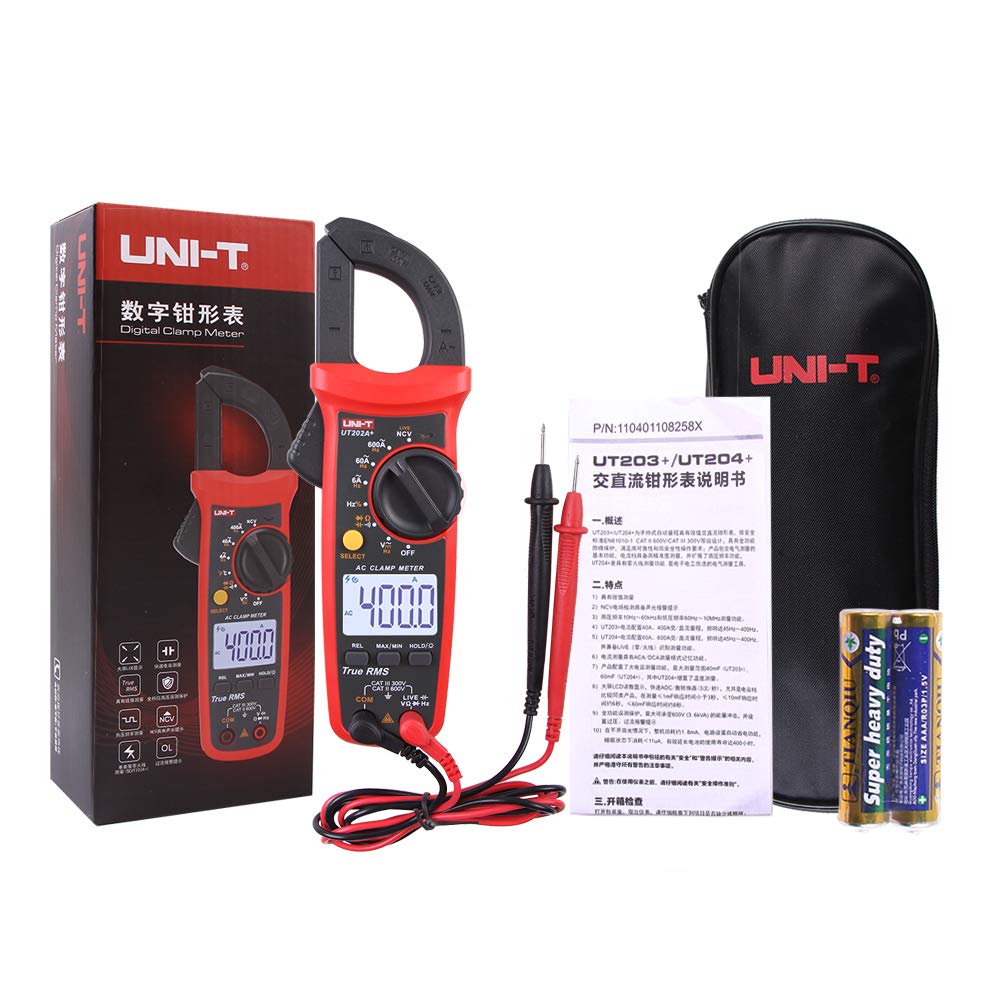

What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Specifications | Range | UT202A+ |
| AC current (A) | 400A | |
| 600A | ±(2%+10) | |
| AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) |
| DC current (A) | 400A | |
| 600A | ||
| AC voltage (V) | 600V | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~10kHz | ±(1%+5) |
| 10Hz~60kHz | ||
| DC voltage (A) | 600V | ±(0.5%+2) |
| Resistance (Ω) | 40MΩ | |
| 60MΩ | ±(0.8%+2) | |
| Capacitance (F) | 4mF | |
| 40mF | ||
| 60mF | ±(4%+5) | |
| Temperature (℃) | -40℃~1000℃ | |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Features | ||
| Display count | 6000 | |
| Auto range | √ | |
| Jaw opening | 28mm | |
| True RMS | √ | |
| NCV | √ | |
| Live wire test | √ | |
| Continuity test | √ | |
| Diode | √ | |
| MAX/MIN | √ | |
| Relative mode | √ | |
| Zero mode | ||
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 37mm x 25mm | |
| Product color | Red and grey | |
| Product net weight | 248g | |

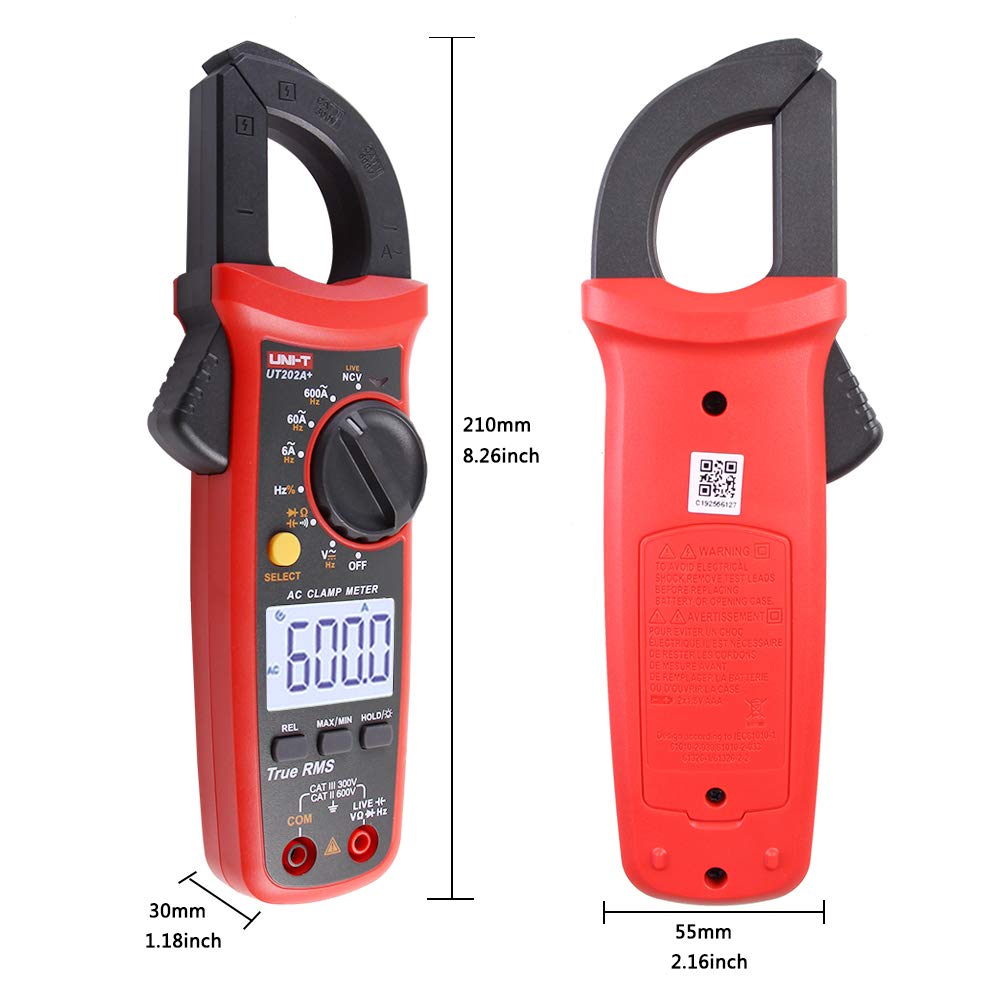

| Product size | 215mm x 63mm x 36mm | |
| Standard individual packing | Gift box, Carring bag, English manual | |
| Standard quantity per carton | 40pcs | |
| Standard carton measurement | 485mm x 295mm x 385mm | |
| Standard carton gross weight | UT202A+: 17.8kg | |
