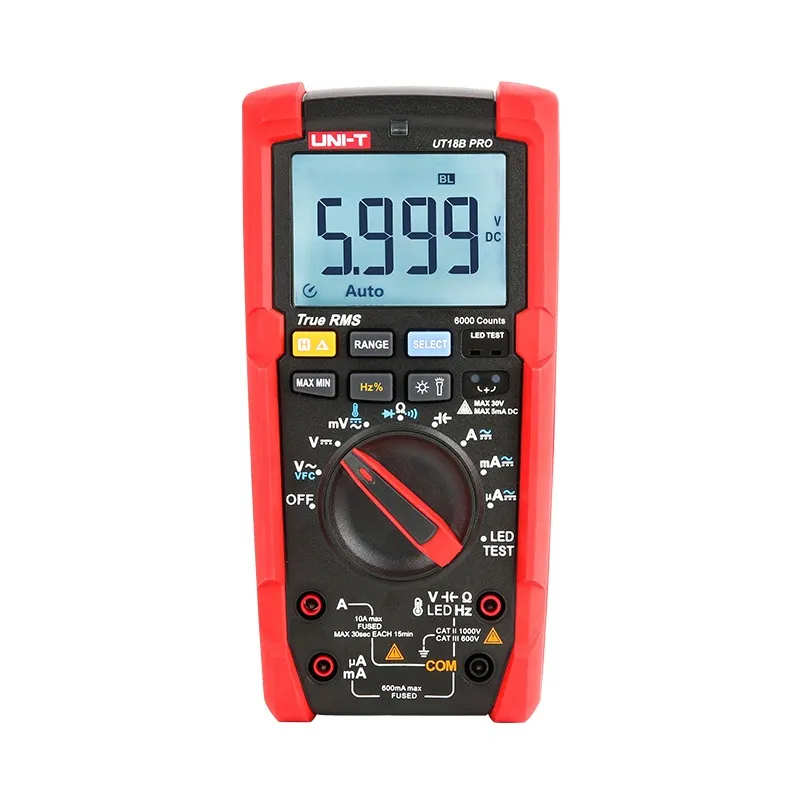

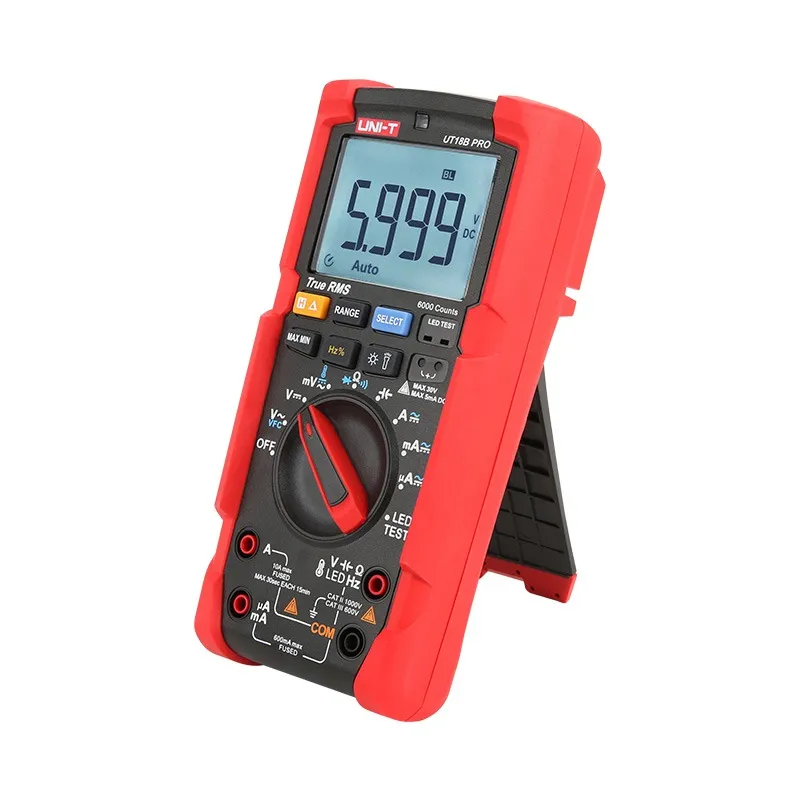

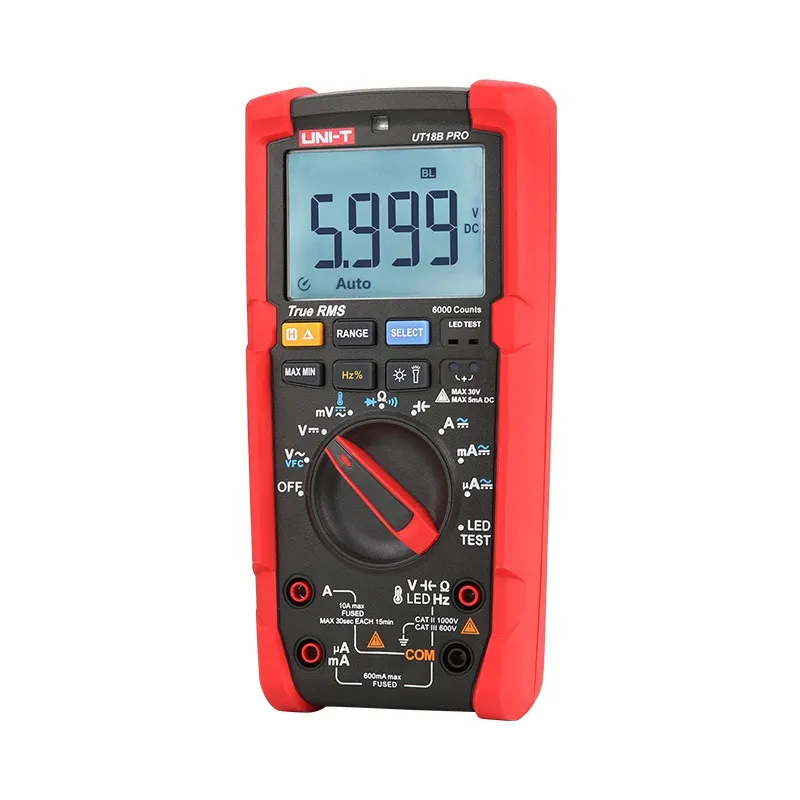

UNI-T UT18B PRO True RMS Digital Multimeter
Click To Zoom
UNI-T UT18B PRO True RMS Digital Multimeter
UNI-T UT18B PRO True RMS Digital Multimeter
UT18B PRO True RMS digital multimeter can accurately measure imperfect, non-linear waves. With the built-in VFC mode, this meter can remove the jamming signal and distorted voltage signal for stable voltage testing. The LED test can output a 12V voltage to test most LEDs. Flashlight and automatic backlight design enable users to troubleshoot electrical equipment easily even in dark environments. All inputs on the UT18B PRO are protected to CAT II 1000V/CAT III 600V.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 8,740
(GST inclusive price) i₹11,330.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Specifications | Range | UT18B PRO |
| DC voltage (V) | 1000V | ±(0.5%+3) |
| AC voltage (V) | 1000V | ±(1%+3) |
| AC current (A) | 10A | ±(1%+3) |
| DC current (A) | 10A | ±(0.8%+3) |
| Resistance (Ω) | 60MΩ | ±(0.5%+2) |
| Capacitance (F) | 6000μF | ±(2%+5) |
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) |
| Duty cycle | 1%~99% | ±(1%+4) |
| Temperature (°C/℉) | -55℃~500℃/-67℉~932℉ | ±(2%+1) |
| Features | ||
| Display count | 6000 | |
| True RMS | ✔ | |
| Auto range/Manual range | ✔ | |
| LED test | 12V | ✔ |
| Continuity/Diode test | ✔ | |
| Relative mode | ✔ | |
| Data hold | ✔ | |
| Max/Min | ✔ | |
| Auto backlight | ✔ | |
| Auto power off | Approximately 15 minutes | ✔ |
| Low battery indication | ＜2.5V approximately | ✔ |
| Drop test | 1m | ✔ |
| Overvoltage category | CAT III 1000V CAT IV 600V | ✔ |
| General Characteristics | ||
| Power | 1.5V battery (LR6) x 2 | |
| Product net weight | 484g | |
| Product size | 195mm x 95mm x 58mm | |
| Standard individual packing | Gift box, cloth bag | |
| Standard quantity per carton | 10pcs | |
| Standard carton measurement | UT15B/17B PRO: 505mm x 355mm x 205mm; UT18B PRO： 480×370×195mmm | |
| Standard carton gross weight | UT15B PRO: 8.8kg; UT17B PRO: 9.1kg | |
