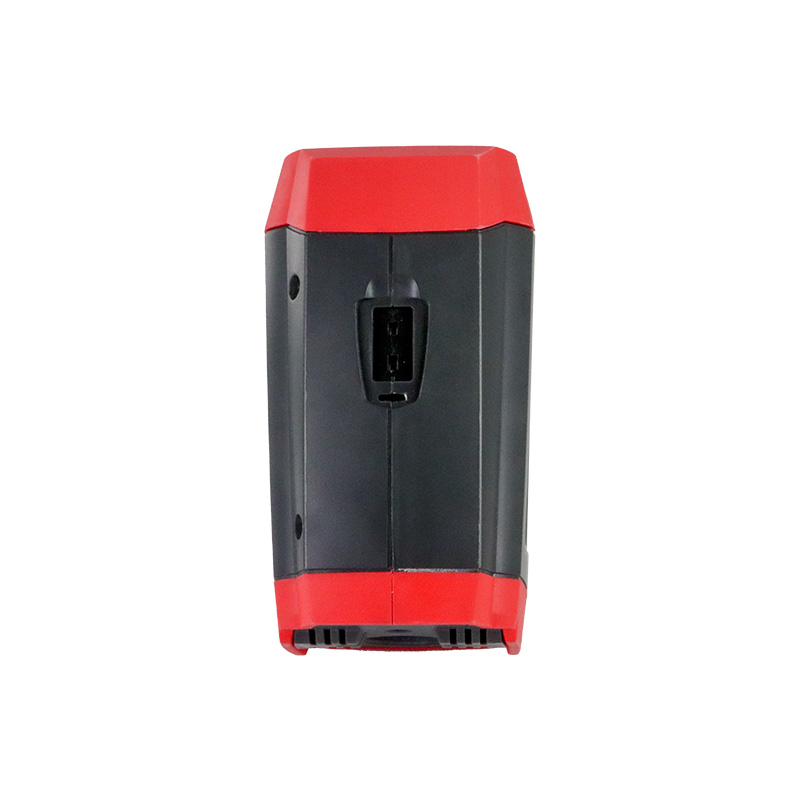

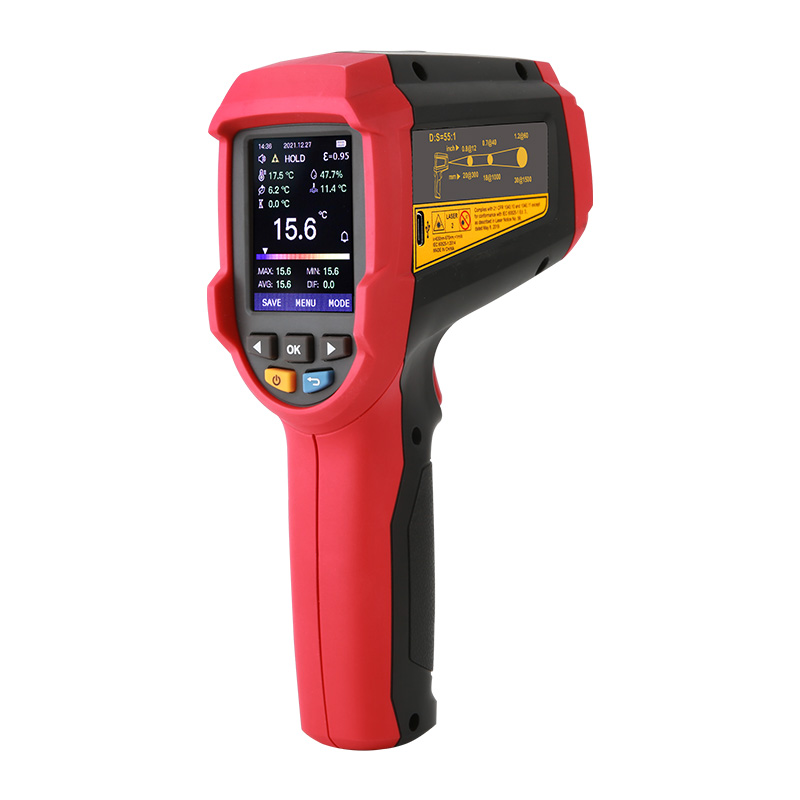

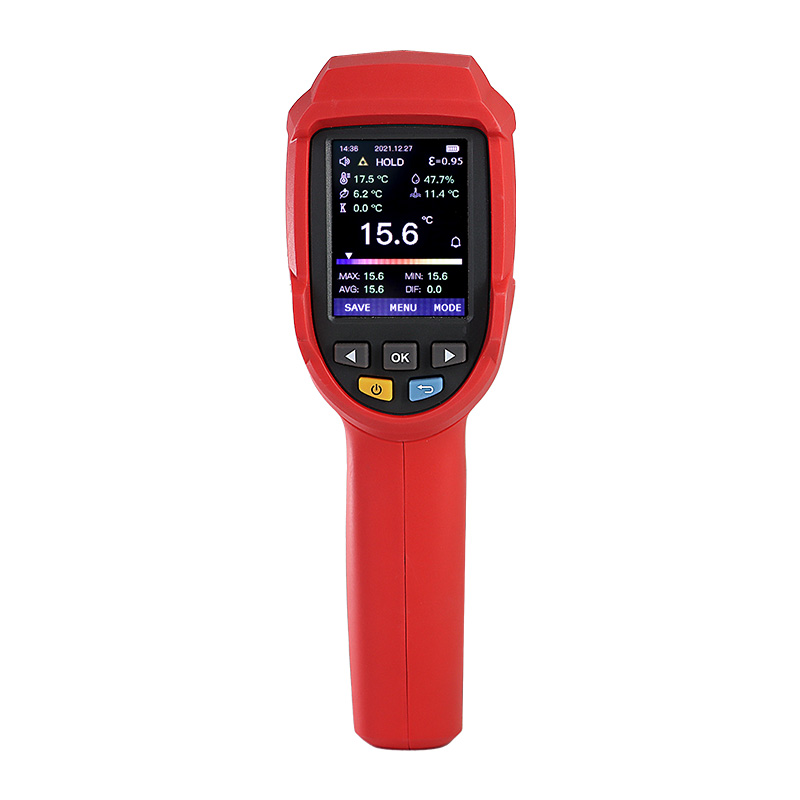

UNI-T UT305A+ Infrared Thermometers
Click To Zoom
UNI-T UT305A+ Infrared Thermometers
UNI-T UT305A+ Infrared Thermometers
The UNI-T UT305A+ is a high-precision, professional-grade infrared thermometer engineered for versatile temperature measurement across diverse industrial applications. With its exceptional 55:1 distance-to-spot ratio, wide temperature range of -50°C to 1350°C (-58°F to 2462°F), and comprehensive measurement capabilities, the UT305A+ delivers superior performance for maintenance professionals, HVAC technicians, electrical inspectors, and facility managers who demand reliable, accurate temperature readings.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 25,459.00
(GST inclusive price) i₹32,995.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Specifications | UT305A+ | |
| Measurement range | Infrared temperature measurement | -50°C~1850°C
(-58.0℉～3362℉) |
| The environment temperature measurement | -10°C~50°C (14℉～122℉) | |
| Relative humidity | 10%RH~90%RH | |
| Type K thermocouple | -50°C~1370°C (-58.0℉～2498℉) | |
| Accuracy | Infrared temperature measurement | -50°C~0°C, ±(1.0℃+0.1℃/℃)
-58℉~32℉, ±(2.0℉+0.1℉/℉) 0°C~2200°C, ±1.0℃ or ±0.01×t℃ (Which is greater) |
| The environment temperature measurement | -10°C~0°C (14℉~32℉), ±1.0°C (±2.0℉) 0°C~40°C (32℉~104℉), ±0.5℃ (±1.0℉)
40°C~50°C (104℉~122℉), ±1.0℃ (±2.0℉ ) | |
| Relative humidity | ±5%RH | |
| Type K thermocouple | ±(0.005×t+1.5)℃, ±(0.005×t+3.0)℉ | |
| Certification | CE UKCA | |
| Diastance ratio（D:S) | 55:1 | |
| Emissivity | 0.1~1.0 (adjustable) | |
| Spectral response | 8µm~14µm | |
| Repeatability of infrared temperature measurement | ±0.005×t℃（℉）or 1℃（2℉） （Which is greater） | |
| Display resolution | 0.1℃（0.1℉） | |
| Unit conversion | ℃ / ℉ | |
| Laser point | Single laser, output < 1 mW, class II | |
| Data storage | 999 groups | |
| Data output format | PDF、CSV | |
| Data communication or charging interface | Type-C USB | |
| Battery | Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery | |
| Charging time | No more than 3 hours | |
| Continuous working time | Work continuously for no less than 20 hours on full charge | |
| Buzzer alarm | √ | |
| Trigger lock function and reservation measurement | √ | |
| Real time, date | √ | |
| LCD type | 2.4 inch TFT LCD 320 * 240 pixels | |
| temperature coefficient | ±0.1℃/℃ or ±0.1%℃/℃, ±0.1℉/℉ or ±0.1%℉/℉（Which is greater） | |
| Work at an altitude of | No more than 2000 meters | |
| Drop test | 1m | |
| Standard k-type thermocouple probe (bead type) | ||
| Measurement range | -40°C to 260°C (-40°F to 500°F) | |
| Accuracy | 0.075× T (t is measured temperature) | |
| Lenth | 1 m (40 in) long K type thermocouple cable with standard micro thermocouple connector and bead probe | |
| General Characteristics | ||
| Power | Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery | |
| LCD screen size | 37mm x 49mm | |
| Product color | red and gray | |
| Net weight | 375 g | |
| Product size | 205 x 65 x 124 mm | |
| Standard packing | Gift box, tool box, instruction manual, warranty card | |
| Standard packing quantity | 1 pc | |
| Standard packing size | 365*160*300 mm | |
