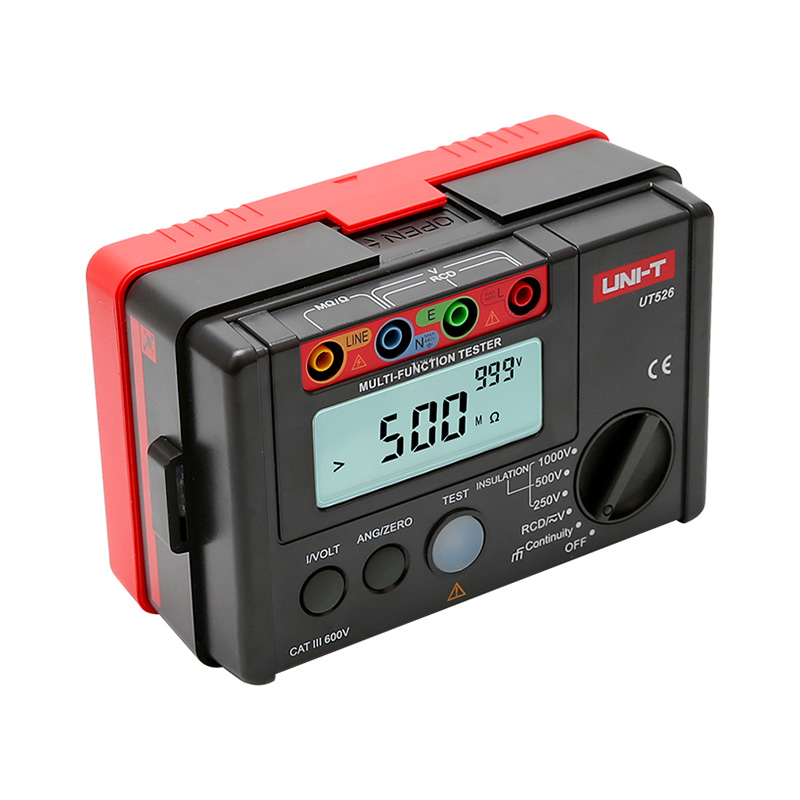

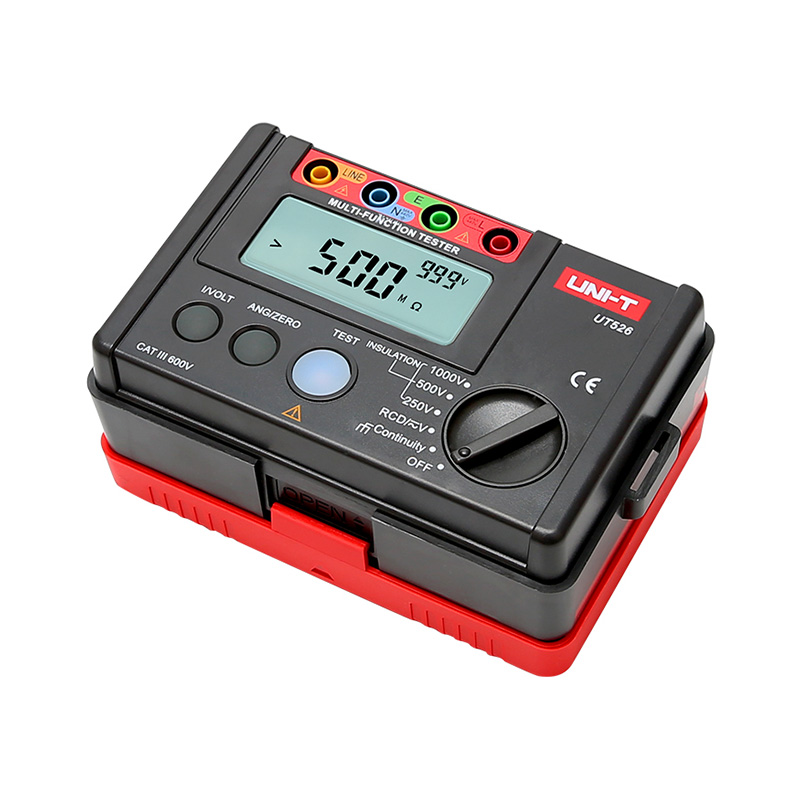

UNI-T UT526 Ground Resistance Meter Digital Electrical Meter Insulation Resistance Tester
Click To Zoom
UNI-T UT526 Ground Resistance Meter Digital Electrical Meter Insulation Resistance Tester
UNI-T UT526 Ground Resistance Meter Digital Electrical Meter Insulation Resistance Tester
UT526 is a multifunctional electrical installation tester. It can be used to test insulation resistance, RCD status, low resistance continuity, and voltage measurements. UT526 can be used to test power distribution system, lightning protection system and wiring systems to ensure safe operations.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 15,499.00
(GST inclusive price) i₹21,000.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Specifications | Range | UT526 | |
| Insulation resistance (Ω) | Test voltages | 250V/500V/1000V | ±10% |
| 250V | 0.05MΩ~200MΩ | ±(5%+5) | |
| 500V | 0.05MΩ~300MΩ | ±(5%+5) | |
| 1000V | 0.05MΩ~500MΩ | ±(5%+5) | |
| Load current | 250V (R=250kΩ) 1mA | ±10% | |
| 500V (R=500kΩ) 1mA | ±10% | ||
| 1000V (R=1MΩ) 1mA | ±10% | ||
| Short circuit current | <2mA | √ | |
| RCD | Operating voltage (Freq.) | 220V (45Hz~65Hz) | ±10% |
| Test current | 10mA/30mA/100mA/300mA | 0~20% | |
| Trip time | 0ms~2000ms, 1Δn general (10mA) | ±(5%+2) | |
| 0ms~500ms, 1Δn general | |||
| 0ms~300ms, 1Δn general (100mA, 300mA) | |||
| Low resistance continuity | Range | 0Ω~2000Ω | ±(2%+5) |
| Test voltage | Around 5V | √ | |
| Test current | >200mA (R<2Ω) | √ | |
| Voltage measurement (V) | DC voltage | 0~440V | ±(5%+2) |
| AC voltage | 0~440V | ||
| Frequency (For reference only) | √ | ||
| Features | |||
| Display count | 10000 | ||
| Manual range | √ | ||
| Phase switch (RCD) | 0°and 180° | √ | |
| Low battery indication | √ | ||
| Auto AC/DC voltage identification | √ | ||
| Red warning lights | √ | ||
| General Characteristics | |||
| Power | 1.5V battery (LR6) x 6 | ||
| Display | 71mm x 34mm | ||
| Product color | Red and grey | ||
| Product net weight | 380g | ||
| Product size | 160mm x 100mm x 71mm | ||
| Standard accessories | |||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 10pcs | ||
| Standard carton measurement | 445mm x 440mm x 180mm (0.063 CBM per standard carton) | ||
| Standard carton gross weight | 12.8kg | ||
