UNI-T UT501A Insulation Resistance Tester
Click To Zoom

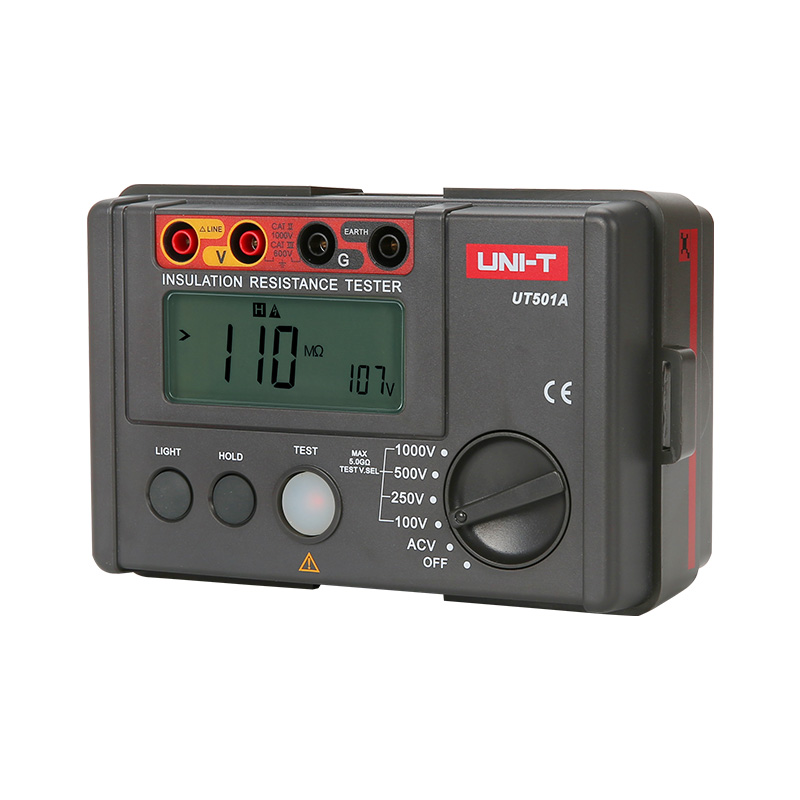

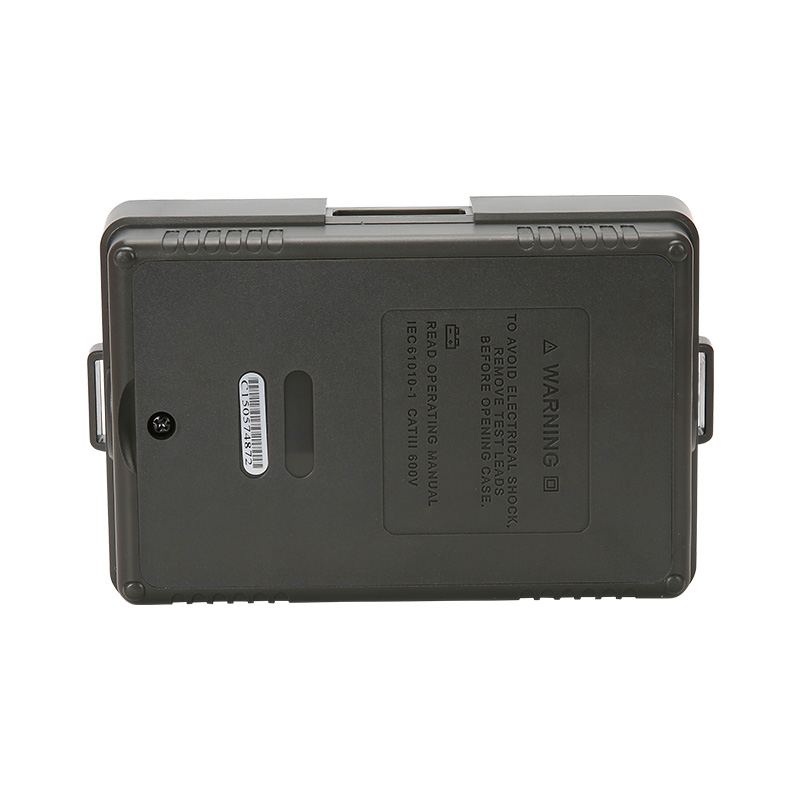

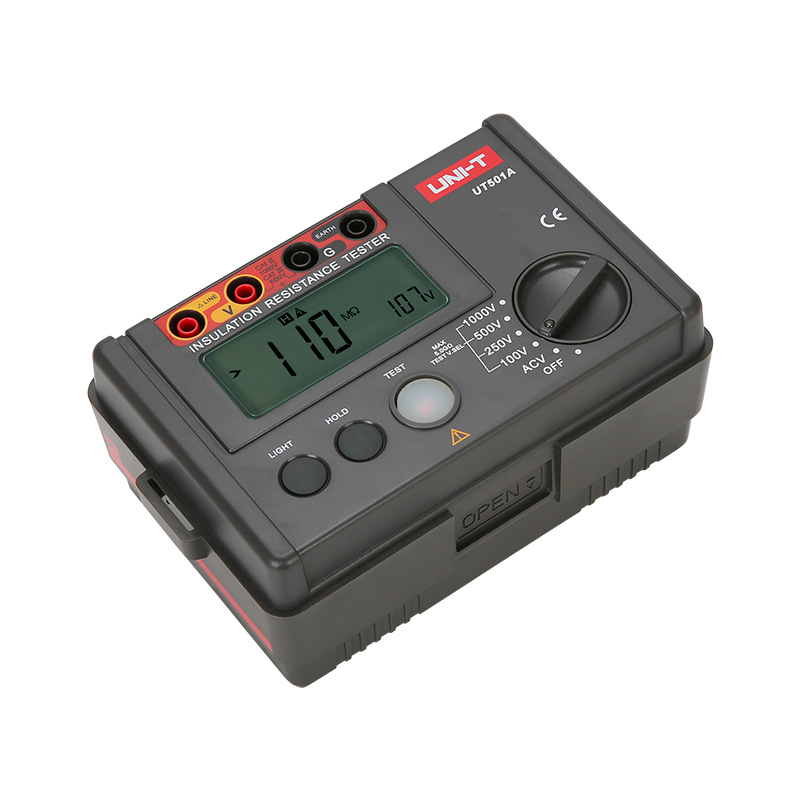

UNI-T UT501A Insulation Resistance Tester
UNI-T UT501A Insulation Resistance Tester
UNI-T’s UT501A is a 2000-count auto range digital insulation resistance tester with low resistance test, high voltage and low battery indication. It adopts latest design and very large-scale integration and digital circuits, combined with measurement functions of insulation resistance, DC voltage, AC voltage. It has advantages such as high precision, stable performance, and simple operation. It is used for insulation resistance measurement of various electrical equipment and insulation materials, such as transformers, motors, cables, switches, electrical appliances.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 5,820
(GST inclusive price) i-
Base Value: ₹ 4932.2
-
GST: (18) % ₹ 887.8
-
Total Value ₹ 5820
₹7,850.00
( - 26% OFF )
Description
Key Features
- Test Voltage: 100V/250V/500V/1000V- 5GΩ
- Display Count: 1999, LCD Backlight
- Auto Range
- Low Battery Indication
- Alarm Indication and Buzzer
- High Voltage Indication
- Overload Indication
- Auto Discharge
- Test Voltage Vice Display
What's in the box?
|
Rating & Reviews
Rating
| Specifications | Range | UT501A | |
| Insulation resistance (Ω) | Test voltages | 100V/250V/500V/1000V | 0%~10% |
| 250V/500V/1000V | |||
| 500V/1000V/2500V | |||
| 100V | 0MΩ~100MΩ | ±(3%+5) | |
| 250V | 0MΩ~99.9MΩ | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ||
| 500V | 0MΩ~99.9MΩ | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ||
| 1000V | 0MΩ~99.9MΩ | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ||
| 2500V | 0MΩ~99.9MΩ | ||
| 100MΩ~9.9GΩ | |||
| 10GΩ~20GΩ | |||
| Load current | 50V (R=50kΩ) 1mA | 0%~10% | |
| 100V (R=100kΩ) 1mA | 0%~10% | ||
| 250V (R=250kΩ) 1mA | 0%~10% | ||
| 500V (R=500kΩ) 1mA | 0%~10% | ||
| 1000V (R=1MΩ) 1mA | 0%~10% | ||
| 2500V (R=1MΩ) 1mA | |||
| Short-circuit current | <2mA | ||
| Low resistance (Ω) | 0.01Ω~200Ω (about 5.0V/>200mA） | ||
| AC voltage (V) | 30V~750V | ±(2%+3) | |
| 30V~600V | |||
| Features | |||
| Display count | 2000 | ||
| DAR | 60s/15s and 60s/30s | ||
| PI | |||
| Auto range/Low battery indication | √ | ||
| LCD backlight/Light alarm | √ | ||
| Buzzer alarm/High voltage indication | √ | ||
| Over load indication/Auto discharge | √ | ||
| Test voltage secondary display | √ | ||
| 10MΩ internal resistance test | √ | ||
| Meets IEC 61557 | 61557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only) | ||
| General Characteristics | |||
| Power | 1.5V battery (LR6) x 6 | ||
| Display | 70.6mm x 34mm | ||
| Product color | Red and grey | ||
| Product net weight | 500g | ||
| Product size | 150mm x 100mm x 71mm | ||
| Standard individual packing | Gift box, carrying bag, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 500mm x 380mm x 330mm (0.063 CBM per standard carton) | ||
| Standard carton gross weight | UT501A: 17.7kg; UT501B: 20.9kg; UT502A: 18.9kg | ||
