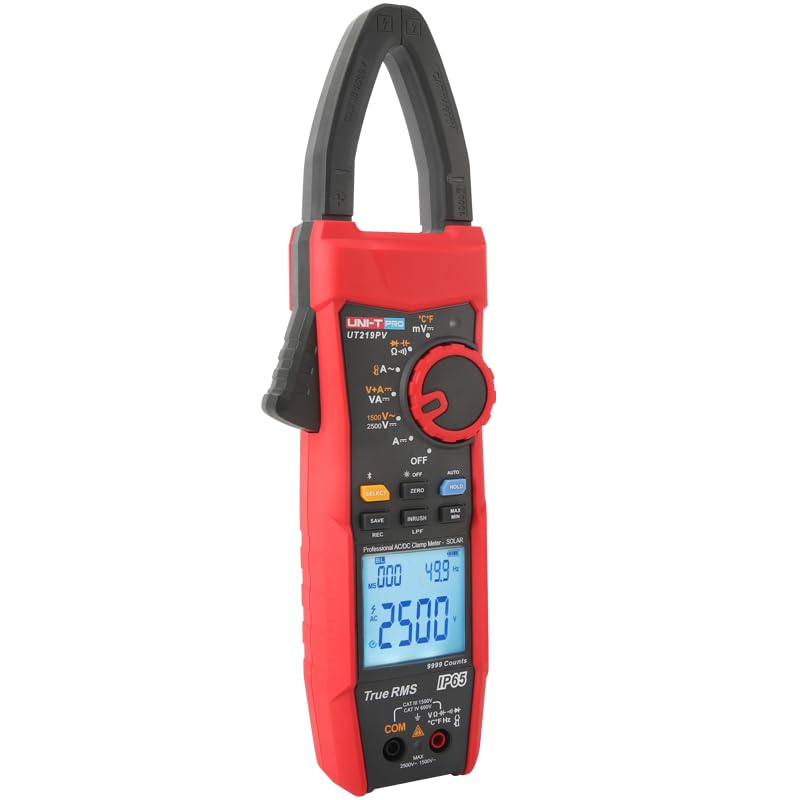

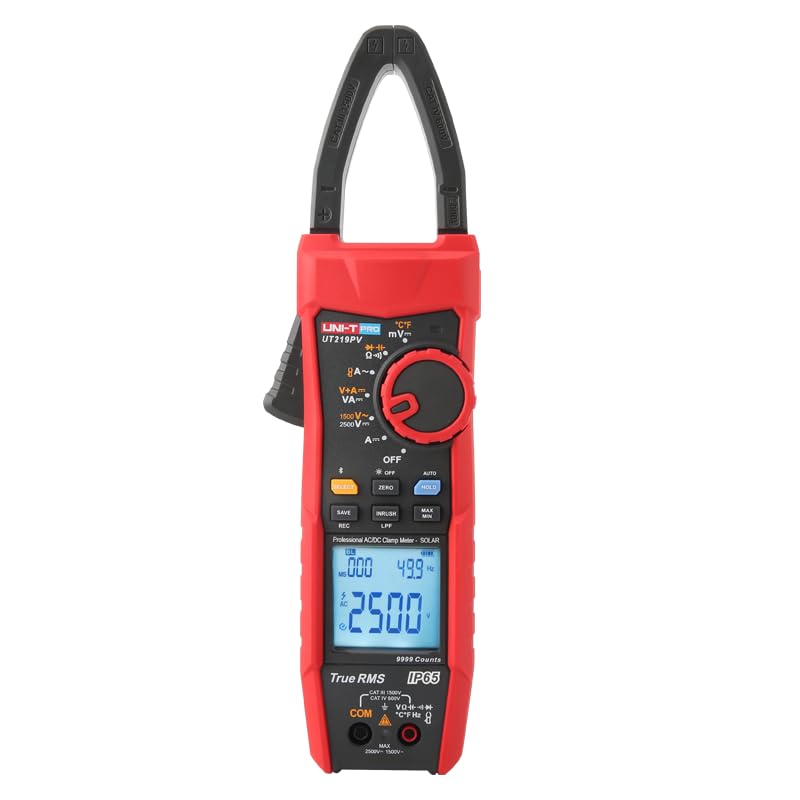

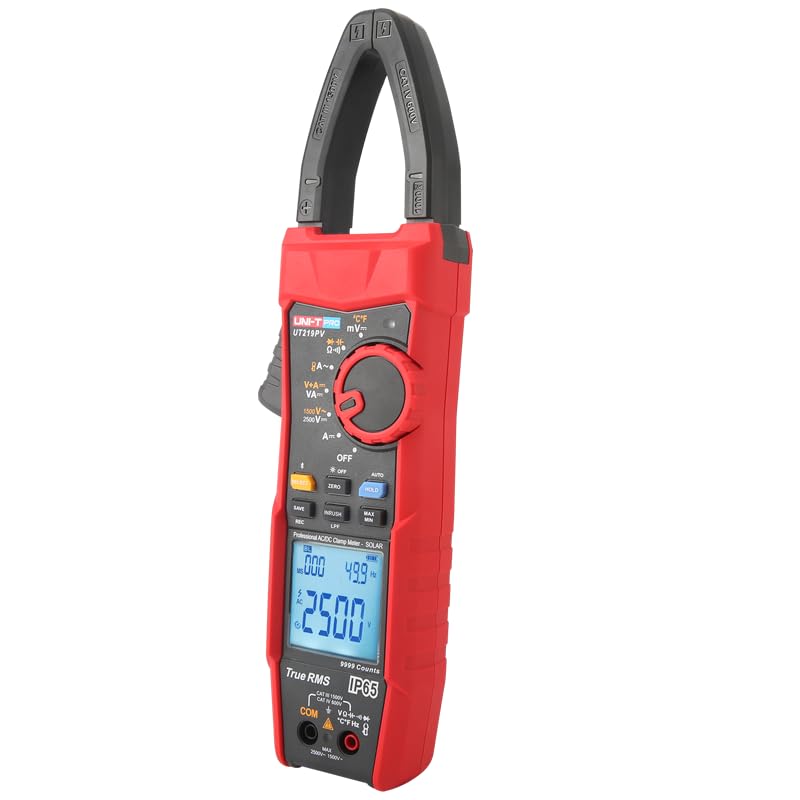

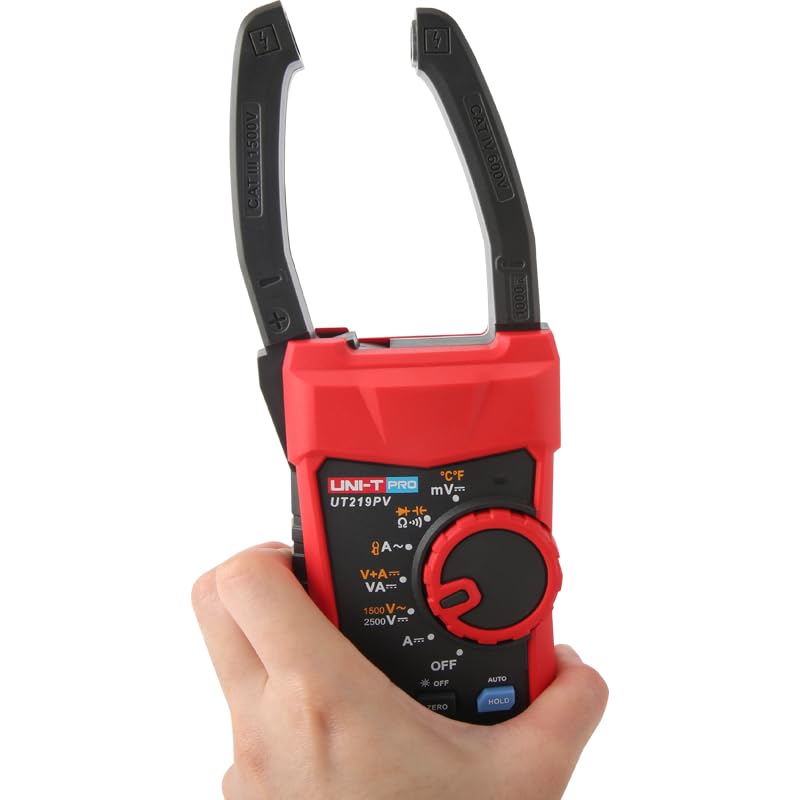

UNI-T UT219PV Professional AC/DC Clamp Meter
Click To Zoom
UNI-T UT219PV Professional AC/DC Clamp Meter
UNI-T UT219PV Professional AC/DC Clamp Meter
The UT219PV is an advanced AC/DC clamp meter specially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features. With its automatic range selection and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC voltage, current, low-pass filtered voltage/current, surge current, peak current, DC power (using an external flexible clamp head), resistance, circuit continuity, diodes, capacitance, and temperature. Its versatility extends beyond photovoltaic applications, as it can also be used in other high-voltage settings like energy storage systems, uninterruptible power supplies (UPS), and large motors.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 21,070
(GST inclusive price) i₹27,300.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Technical Specifications | ||
| Current (ACA) | 999.9 A | 40Hz~100Hz: ±(2.0%+5) 100Hz~1000Hz: ±(2.5%+5) |
| Current (DCA) | 999.9 A | ±(2.0%+5) |
| Voltage (ACV) | 999.9V/1500V | 40Hz~1000Hz: ±(1.0%+5) |
| Voltage (DCV) | 999.9V/2500V | ±(1.0%+5) |
| Voltage (DC mV) | 999.9 mV | ±(1.0%+5) |
| ACV(with LPF) | 999.9V | ±(2.0％＋9) |
| ACA(with LPF) | 999.9A | ±(2.5％＋9) |
| ACA(with LPF): flex clamp sensor | 30.00A/300.0A/3000A | ±(4.0%+9)(center area) |
| ACA;with flex clamp sensor | 30.00A/300.0A/3000A | ±(3.0%+5) (center area) |
| Power (DC) | 999.9 kVA/2500 kVA | ±(2.0%+20) |
| Frequency (A&V) | 5.0 Hz to 999.9Hz | ±(0.5%+5) |
| Resistance (Ω) | 999.9Ω/9.999KΩ/99.99kΩ | ±(1.0％+5） |
| Cpacitance（F） | 100.0μF/1000 μF | ±(1.0％+5） |
| Temperature | -40℃~400℃/-40℉~752℉ | ±(1.0%+30); ±(1.0%+60) |
| Features: | ||
| True RMS | √ | |
| Display count | 9999 | |
| Display | LCD: Dual display (V+A) | |
| Jaw (Max conductor dia.) | 35mm | |
| Diode | √ | |
| Solar panel polarity indication | when <-10 DCV, Audible & Visual alarm | |
| High voltage alarm | √ | |
| Over range indication | √ | |
| AUTO HOLD | √ | |
| Inrush current | √ | |
| PEAK | √ | |
| Bluetooth app | BT 5.0 | |
| Auto backlight | √ | |
| Low battery indication | √ | |
| Flexiable clamp compatible | UT-CS09D (optional) | |
| IP rating | IP65 | |
| Overvoltage category | CAT III 1500V; CAT IV 600V | |
| Certificates | CE, cETLus, RoHS | |
| General Characteristics | ||
| Power supply | 2 * AA | |
| Product dimension | 295mm x 73mm x 50mm | |
| Product color | Grey + Red | |
