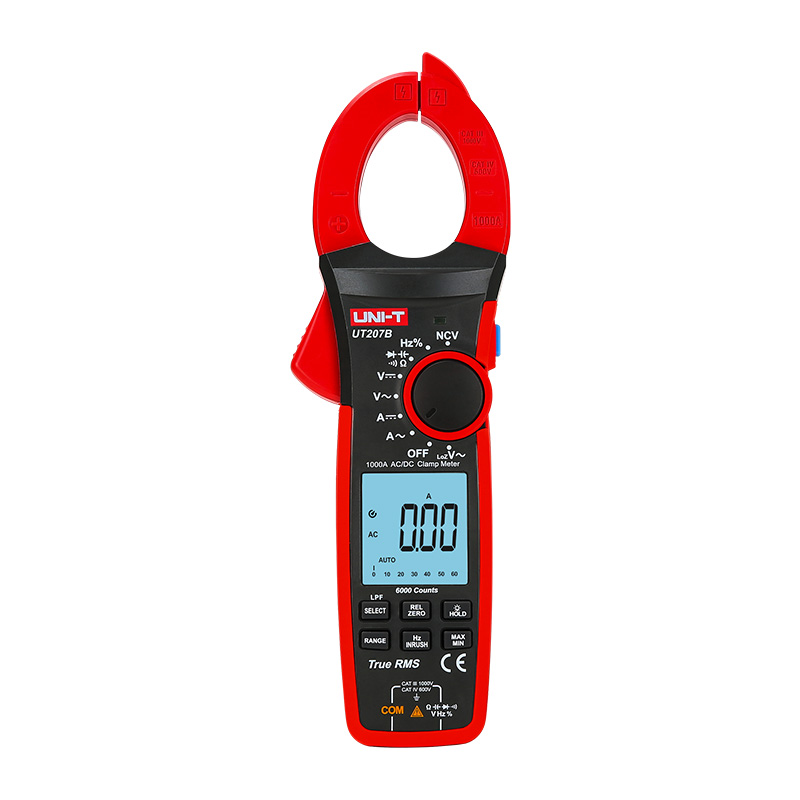

UNI-T UT207B True RMS Digital Clamp Meters
UNI-T UT207B True RMS Digital Clamp Meters
UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT207B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 51,511.00
(GST inclusive price) i₹5,55,555.00
( - 91% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Specifications | Range | UT207B |
| AC current (A) | 1000A | ±(2%+5) |
| DC current (A) | 1000A | ±(2%+5) |
| AC current frequency response | 40Hz~400Hz | |
| Inrush current (A) | 1000A | ±(10%+10) |
| AC voltage (V) | 1000V | ±(1.2%+3) |
| DC voltage (V) | 1000V | ±(0.5%+5) |
| Low pas filter (LPF ACV) | 1000V | ±(2%+5) |
| AC voltage frequency response | 40Hz~400Hz | |
| LoZ ACV | 1000V | ±(2%+5) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Temperature | -40℃~1000℃ | |
| -40℉~1832℉ | ||
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) |
| Analog bar | 31 | |
| Flexible current probe (optional) | Extends up to 3000A | |
| Zero mode | √ | |
| Display count | 6000 | |
| Jaw opening | 42mm | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 43mm x 45mm | |
| Product net weight | UT205E/UT206B: 465g; UT207B/UT208B: 420g | |
| Product size | 272mm x 81mm x 43.5mm | |
| Standard individual packing | Gift box, carrying bag | |
| Standard quantity per carton | UT205E/UT206B/UT207B: 10pcs; UT208B: 5pcs | |
| Standard carton measurement | UT205E/UT206B/UT207B: 355mm x 330mm x 315mm; UT208B: 355mm x 330mm x 165mm | |
| Standard carton gross weight | UT205E/UT206B/UT207B: About 7.1kg; UT208B: About 4.5kg | |
