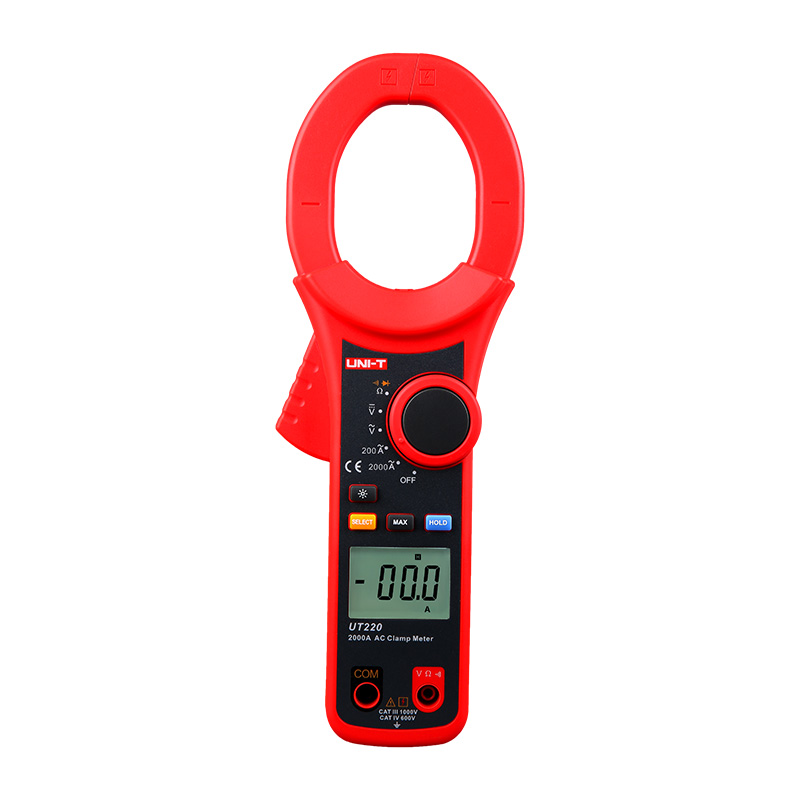

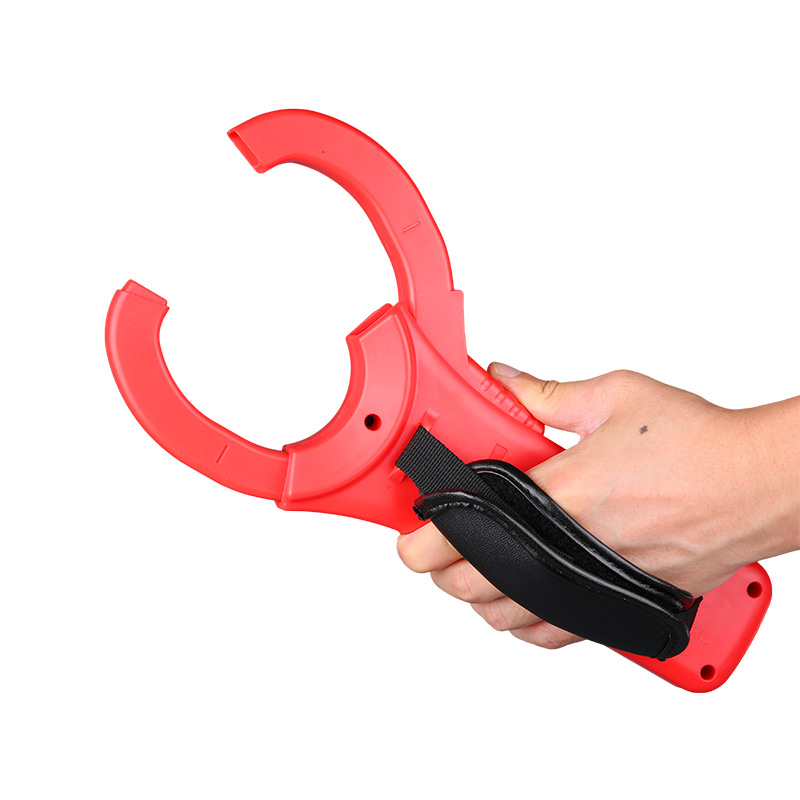

UNI-T UT220 2000A Digital Clamp Meters
Click To Zoom
UNI-T UT220 2000A Digital Clamp Meters
UNI-T UT220 2000A Digital Clamp Meters
UT220 series are 2000A AC/DC digital clamp meters. This series ensures stable performance, safety, and reliability for measuring up to 2000A AC (and DC for UT221) current. It is designed with over-load protection for all ranges, perfect for all professionals measuring currents up to 2000A (2500A for UT222).
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 4,900
(GST inclusive price) i₹6,350.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Specifications | Range | UT220 |
| AC current (A) | 2000A | ±(2.5%+5) |
| 2500A | ||
| DC current (A) | 2000A | |
| 2500A | ||
| AC voltage (V) | 750V | ±(1.2%+5) |
| 1000V | ||
| DC voltage (V) | 1000V | ±(0.8%+1) |
| Resistance (Ω) | 20MΩ | ±(1%+2) |
| 60MΩ | ||
| 66MΩ | ||
| Capacitance (F) | 60mF | |
| Frequency (Hz) | 20MHz | |
| 60MHz | ||
| Temperature | -40°C~1000°C | |
| -40°F~1832°F | ||
| Features | ||
| Display count | 2000 | |
| Auto range/Diode | √ | |
| Jaw opening | 63mm | |
| True RMS (AC voltage/AC current) | ||
| Duty cycle | 10%~90% | |
| Continuity buzzer | √ | |
| AC+DC | ||
| Low pass filter | ||
| Inrush current | AC current | |
| Relative mode | ||
| Data hold/MAX | √ | |
| MIN/I-OUT function | ||
| Data storage | ||
| Analog bar graph | ||
| Full icon display | √ | |
| Low battery indication | √ | |
| Input impedance | ≥10MΩ | √ |
| General Characterisitics | ||
| Power | 9V battery (6F22) | |
| Display | 43mm x 30mm | |
| Product color | Red and grey | |
| Product net weight | UT220: 389g; UT221/UT222: 726g | |
| Product size | 298mm x 107mm x 47mm | |
| Standard individual packing | Gift box, carrying bag (UT220), tool box (UT221/UT222), English manual | |
| Standard quantity per carton | UT220: 40pcs; UT221/UT222: 5pcs | |
| Standard carton measurement | UT220: 645mm x 600mm x 330mm; UT221/UT222: 510mm x 375mm x 320mm | |
| Standard carton gross weight | UT220: 30.1kg; UT221: 12.1kg; UT222: 11.9kg | |
