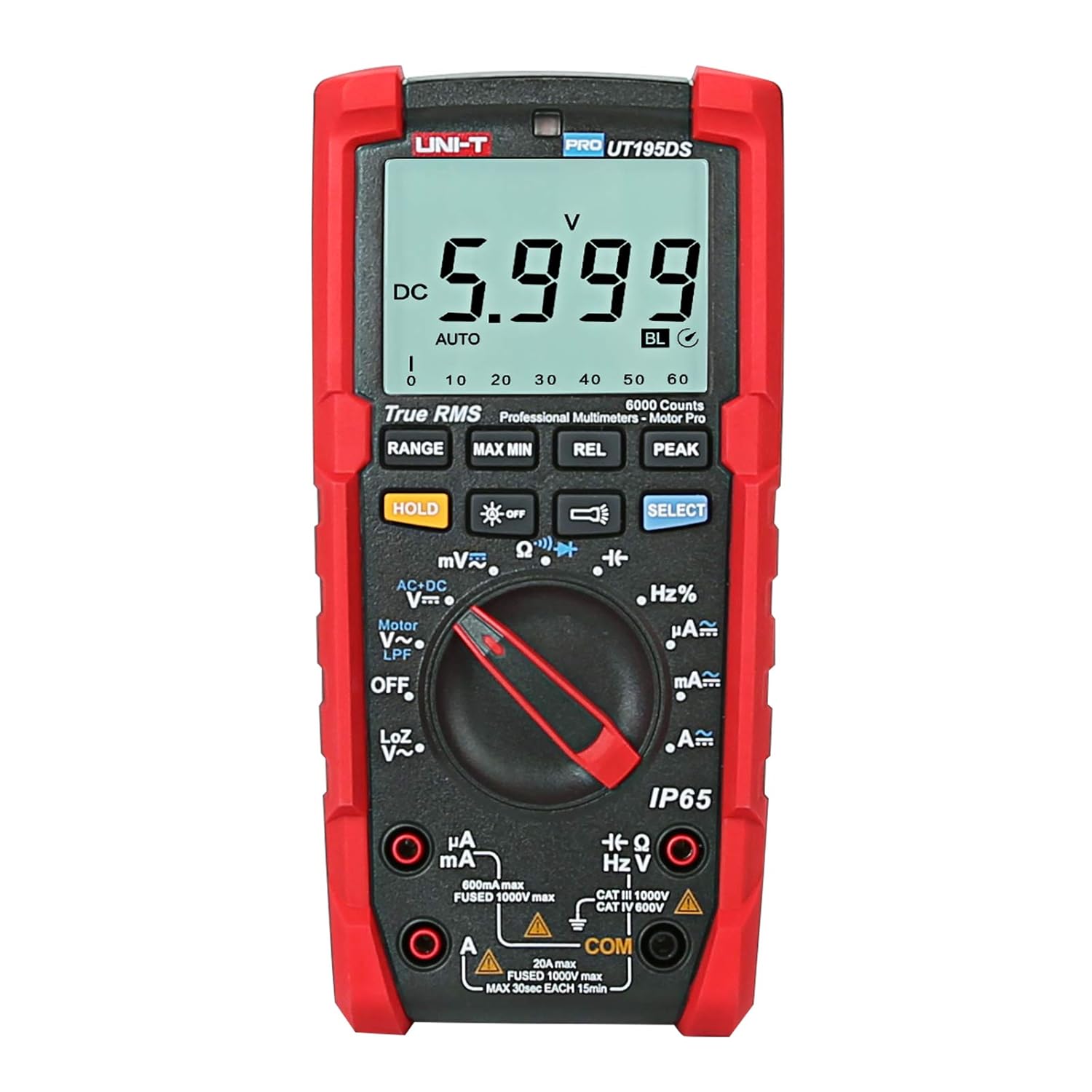

UNI-T UT195DS Industrial Digital Multimeter
Click To Zoom
UNI-T UT195DS Industrial Digital Multimeter
UNI-T UT195DS Industrial Digital Multimeter
UT195DS handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 13,199
(GST inclusive price) i-
Base Value: ₹ 11185.6
-
GST: (18) % ₹ 2013.4
-
Total Value ₹ 13199
₹18,000.00
( - 27% OFF )
Description
Key Features
- IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
- Large 6000-count LCD screen
- True RMS
- ACV 750V 5kHz bandwidth
- Flashlight
- Auto LCD backlight controlled by light sensor (can be turned off)
- LoZ voltage test, for ghost voltage measurement
- 20A current measurement (max 30 seconds)
- 31 analog bar

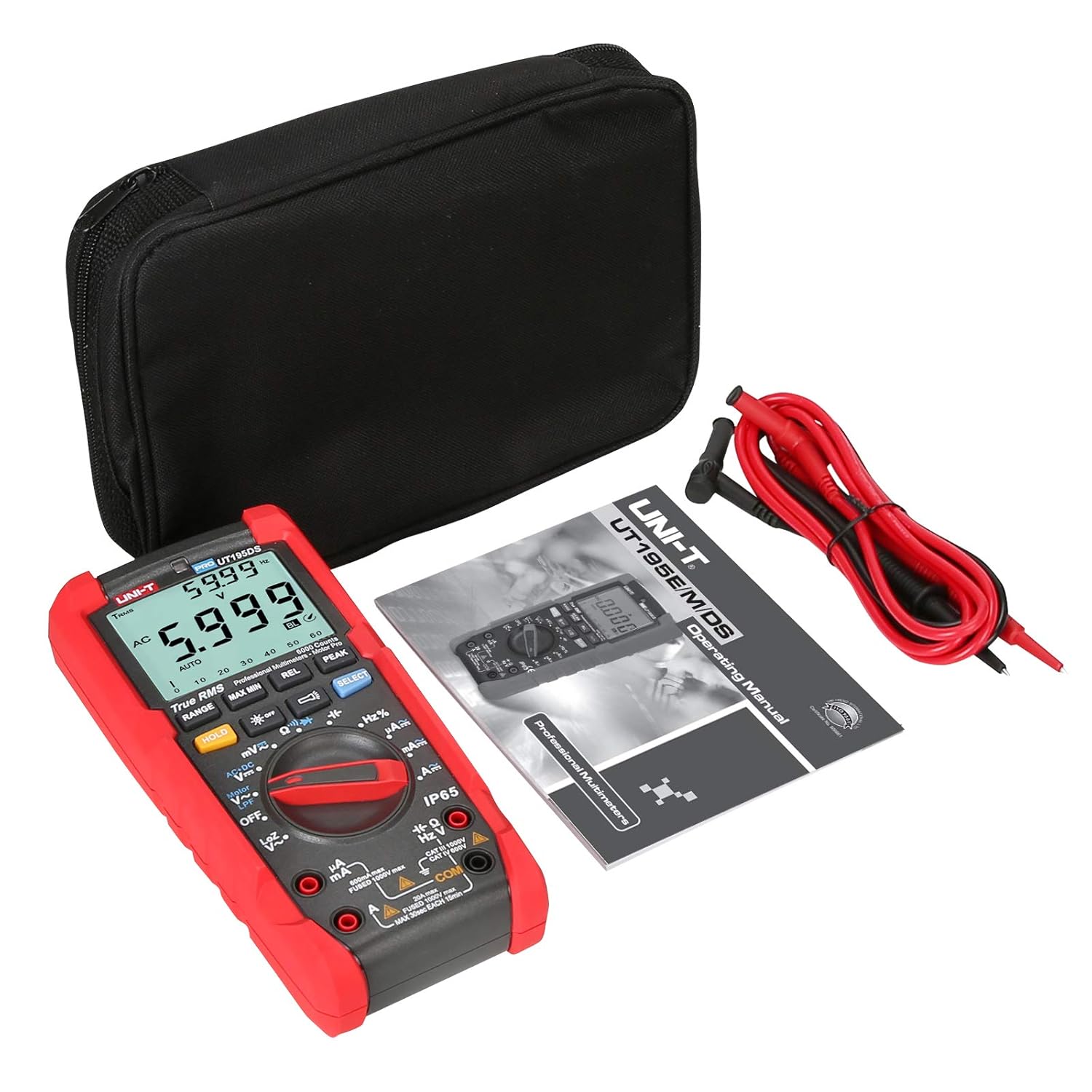

What's in the box?
|
Rating & Reviews
Rating
| Specifications | Range | UT195DS |
| DC voltage (V) | 1000V | ±(0.2%+5) |
| AC+DC | 750V | ±(1.5%+4) |
| AC voltage (V) | 1000V | ±(1%+3) |
| LoZ ACV | 600V | ±(2%+3) |
| DC current (A) | 20A | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) |
| Capacitance | 60mF | ±(3%+5) |
| Frequency | 60Hz~10MHz | |
| 60Hz~40MHz | ±(0.1%+4) | |
| Duty cycle | 0.1%~99.9% | ±(2%+5) |
| Temperature (°C) | -40°C~1000°C | |
| Temperature (°F) | -40°F~1832°F | |
| Features | ||
| Display count | 6000 | |
| Display interface (LCD) | Dual | |
| Measurement sampling rate | times/s | 5 |
| Analog bar sampling rate | times/s | 20 |
| Analog bar | 31 sections | ✔ |
| True RMS | ✔ | |
| AC voltage frequency response | 45~5kHz | |
| AC current frequency response | 45~5kHz | |
| 3-phase motor sequence test | 600V | ✔ |
| Low pass filter | 1kHz 3dB attenuation | ✔ ±(2%+3) |
| Diode/Continuity test | 3V | |
| Peak hold | 250μs | ✔ |
| Auto/Manual range | ✔ | |
| Continuity buzzer | ✔ | |
| Low battery indication | ✔ | |
| Data hold/Auto power off | ✔ | |
| MAX/MIN | ✔ | |
| Function selection | ✔ | |
| Flashlight/Auto backlight | ✔ | |
| General Characteristics | ||
| Power | 9V battery | |
| LCD size | 66mm x 51mm | |
| Product color | Red and grey | |
| Product net weight | 437g | |

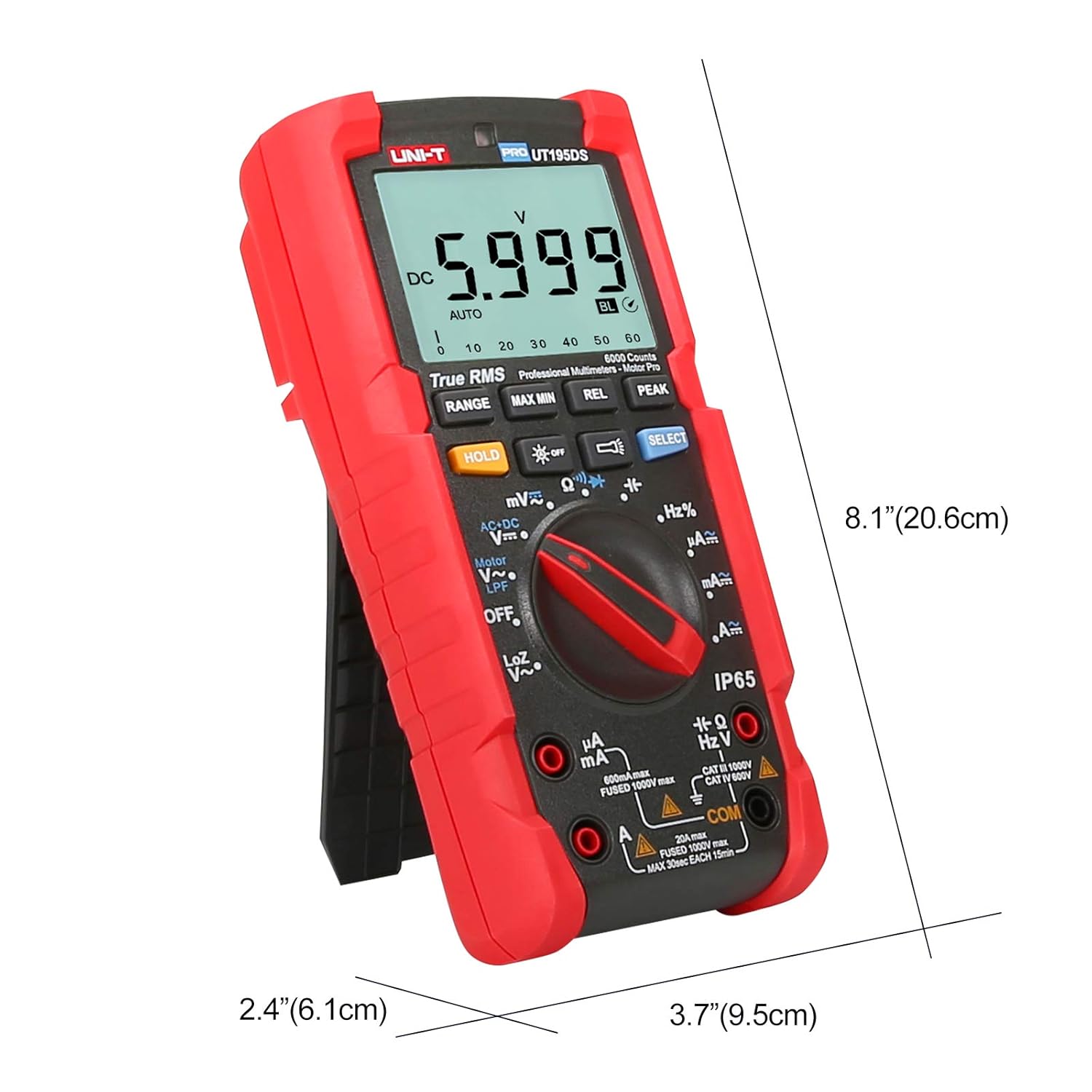

| Product size | 195mm x 95 mm x 58mm | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 6pcs | |
| Standard carton measurement | 580mm x 375mm x 215mm | |
| Standard carton gross weight | 7.2kg | |
