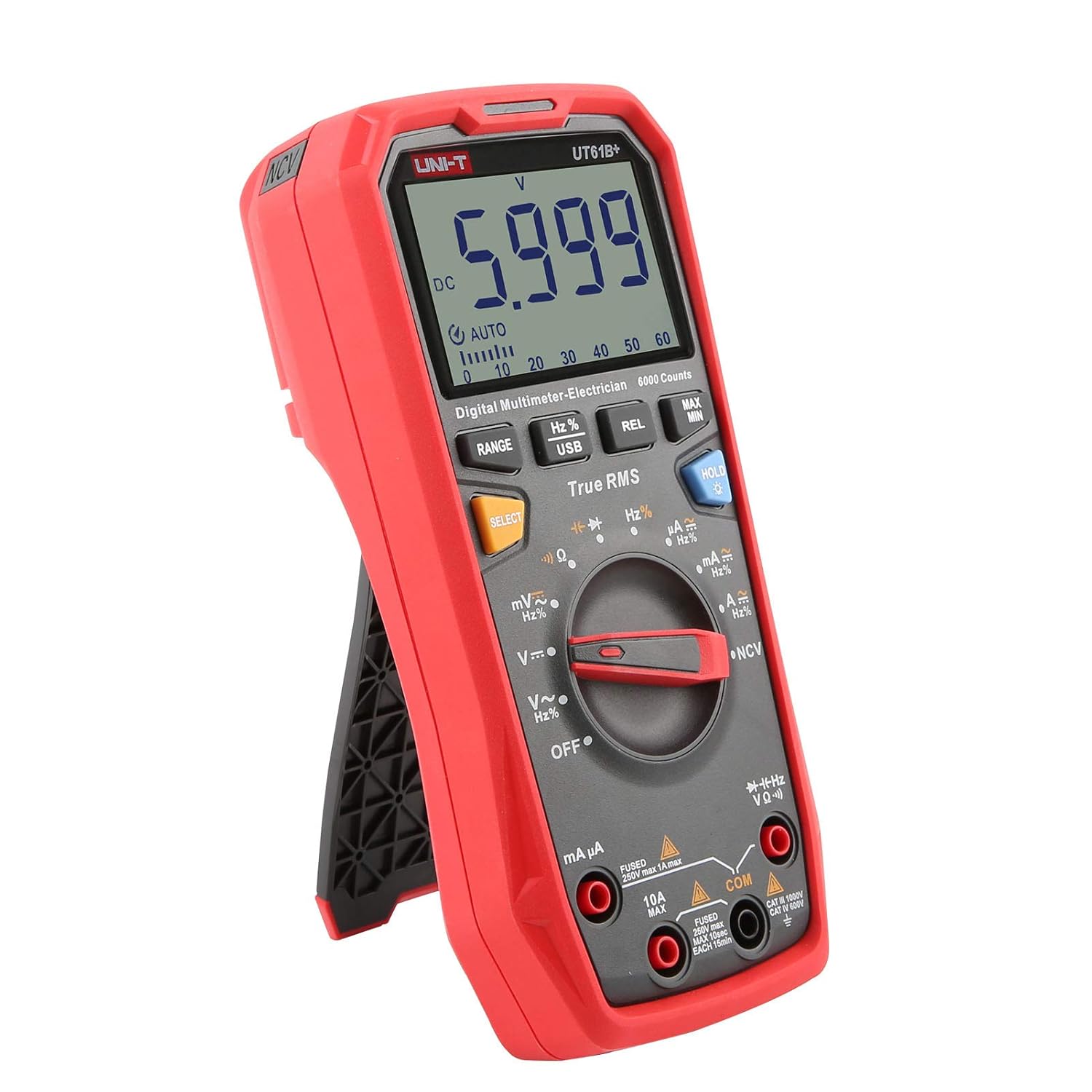

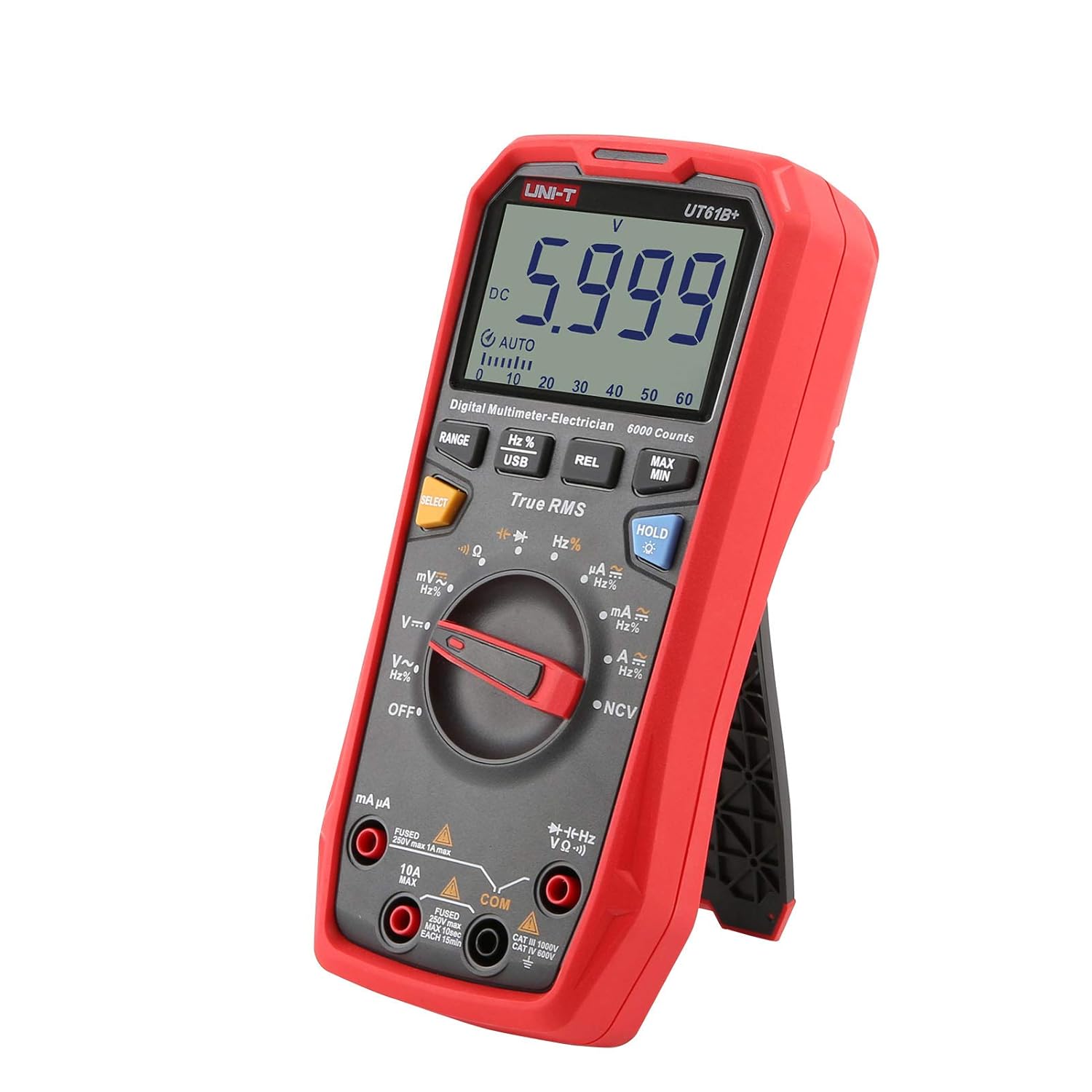

UNI-T UT61B+ Digital Multimeter True RMS
Click To Zoom
UNI-T UT61B+ Digital Multimeter True RMS
UNI-T UT61B+ Digital Multimeter True RMS
The UT61B+ True RMS Digital Multimeter are reliable true RMS digital multimeters featuring a display count of 6000 (models UT61B+ and UT61D+). UT61B+ True RMS Digital Multimeter are capable of measuring voltages up to 1000V AC/DC, making them suitable for a wide range of electrical testing applications.
These Digital Multimeter are equipped with both audible and visible alarms, providing an important safety feature by alerting users to potentially dangerous high voltage or current levels during measurements. This combination of accuracy, versatility, and safety makes the UT61+ series an excellent choice for professionals and hobbyists alike.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 5,000
(GST inclusive price) i-
Base Value: ₹ 4237.3
-
GST: (18) % ₹ 762.7
-
Total Value ₹ 5000
₹6,700.00
( - 25% OFF )
Description

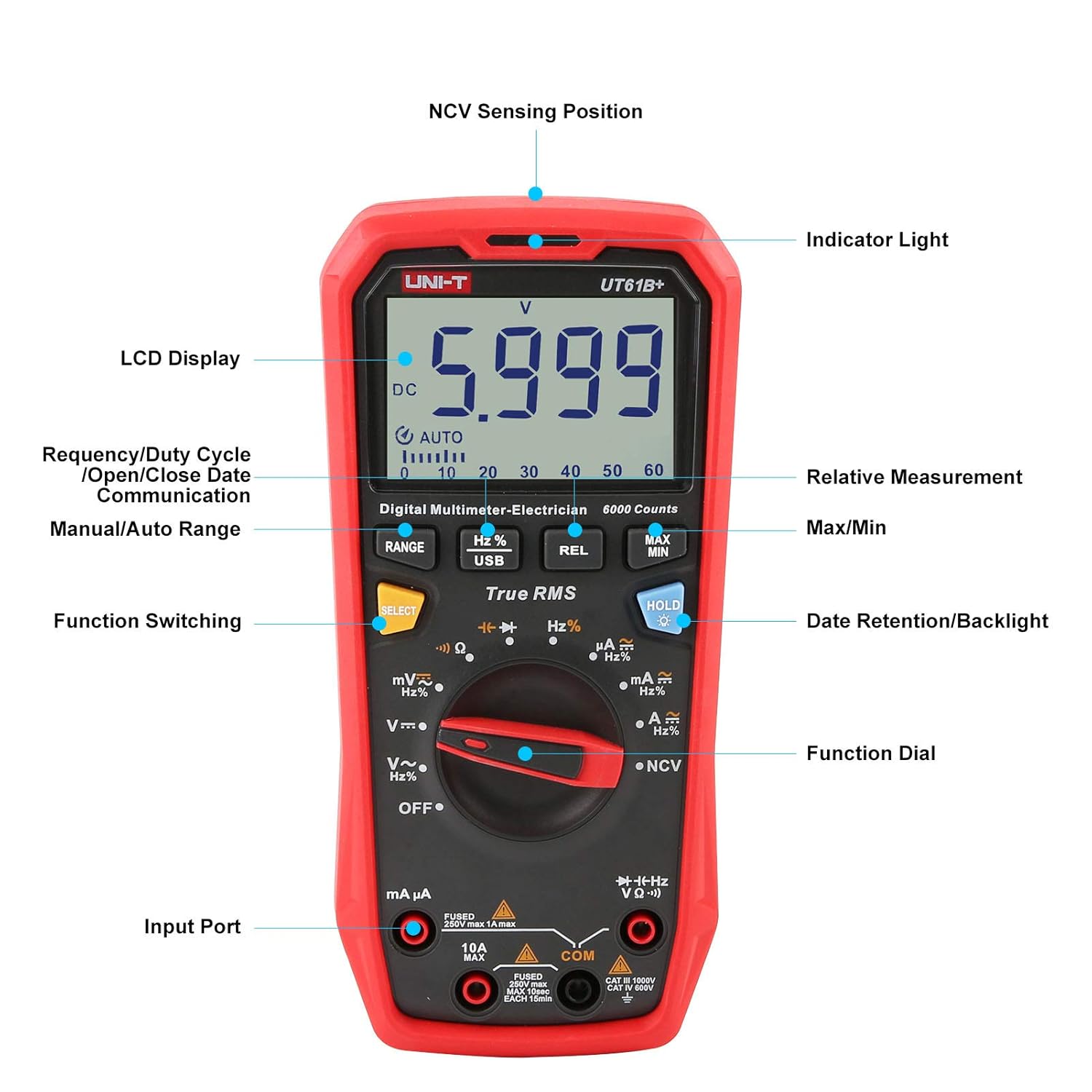

Key Features
- True RMS
- Data hold/backlight
- Max/Min/Relative mode
- USB communication
- Input protection
- Diode/continuity test
- NCV (audible/visual alarm)
What's in the box?
|
Rating & Reviews
Rating
| Specifications | Range | UT61B+ |
| AC voltage (V) | 1000V | ±(1%＋3) |
| DC voltage (V) | 1000V | ±(0.5%＋3) |
| AC current (A) | 10A | ±(1.2%＋5) |
| 20A | ||
| DC current (A) | 10A | ±(1%＋2) |
| 20A | ||
| Resistance (Ω) | 60MΩ | ±(1%＋2) |
| 220MΩ | ||
| Capacitance (F) | 60mF | ±(3%＋5) |
| 220mF | ||
| Frequency (Hz) | 10MHz | ±(0.1%＋4) |
| 220MHz | ||
| Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) |
| Temperature (℃/℉) | -40℃~1000℃ | |
| -40℉~1832℉ | ||
| Display count | 6000 | |
| Bandwidth (Hz) | 40Hz~500Hz | |
| LPF ACV | ||
| LoZ ACV | ||
| ACV+DCV | ||
| Transistor hFE | ||
| Peak Hold | ||
| Analog bar | 31 | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 4 | |
| Product net weight | 350g | |

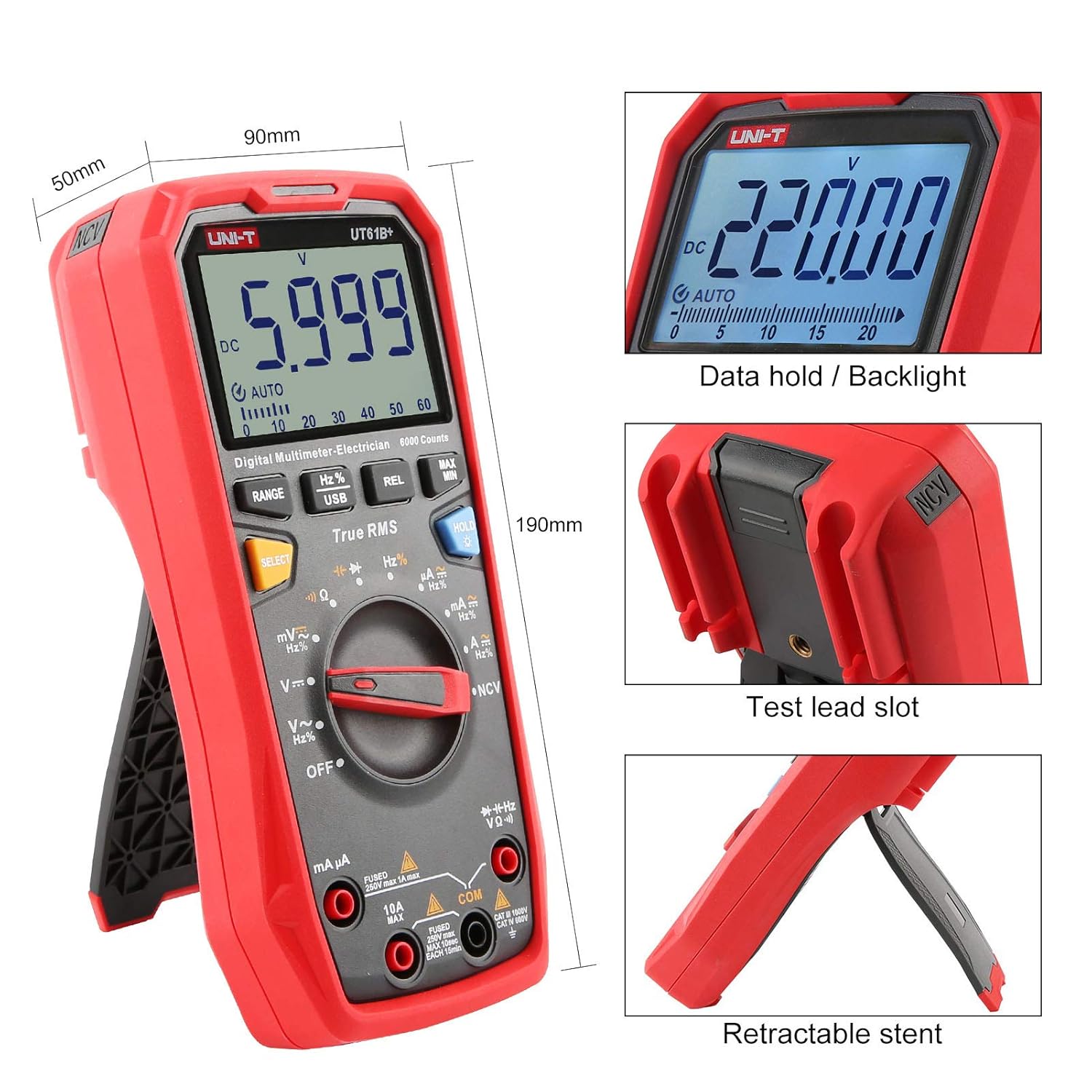

| Product size | 190mm x 90mm x 50mm | |
| Standard accessories | Battery, gold plated test leads, USB cable, English manual | |
| Standard individual packing | Gift box, cloth bag | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | UT61+ series: 480mm x 370mm x 365mm | |
| Standard carton gross weight | UT61+ series: 15.2kg | |
| Optional accessories | Bluetooth/APP | |
