UNI-T UT107+ Automotive Multimeter with RPM Measurement
Click To Zoom

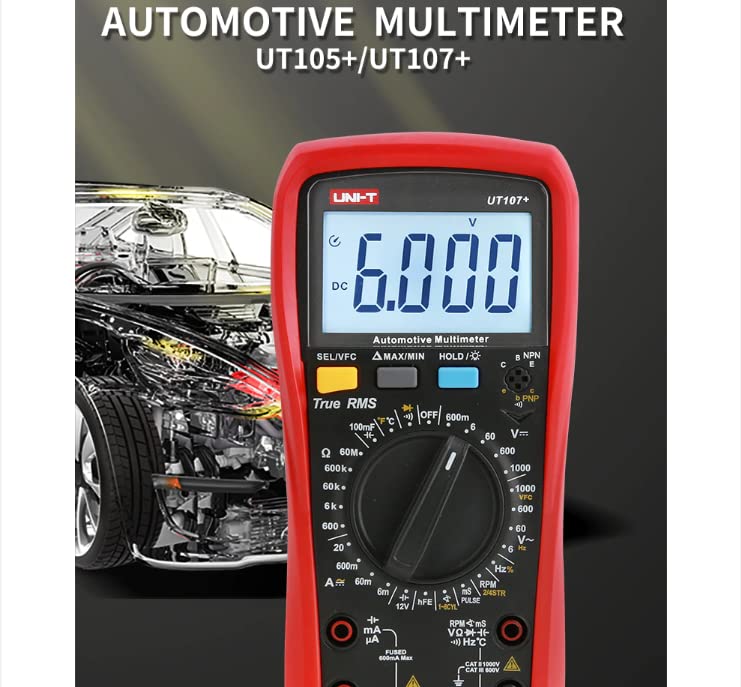

UNI-T UT107+ Automotive Multimeter with RPM Measurement
UNI-T UT107+ Automotive Multimeter with RPM Measurement

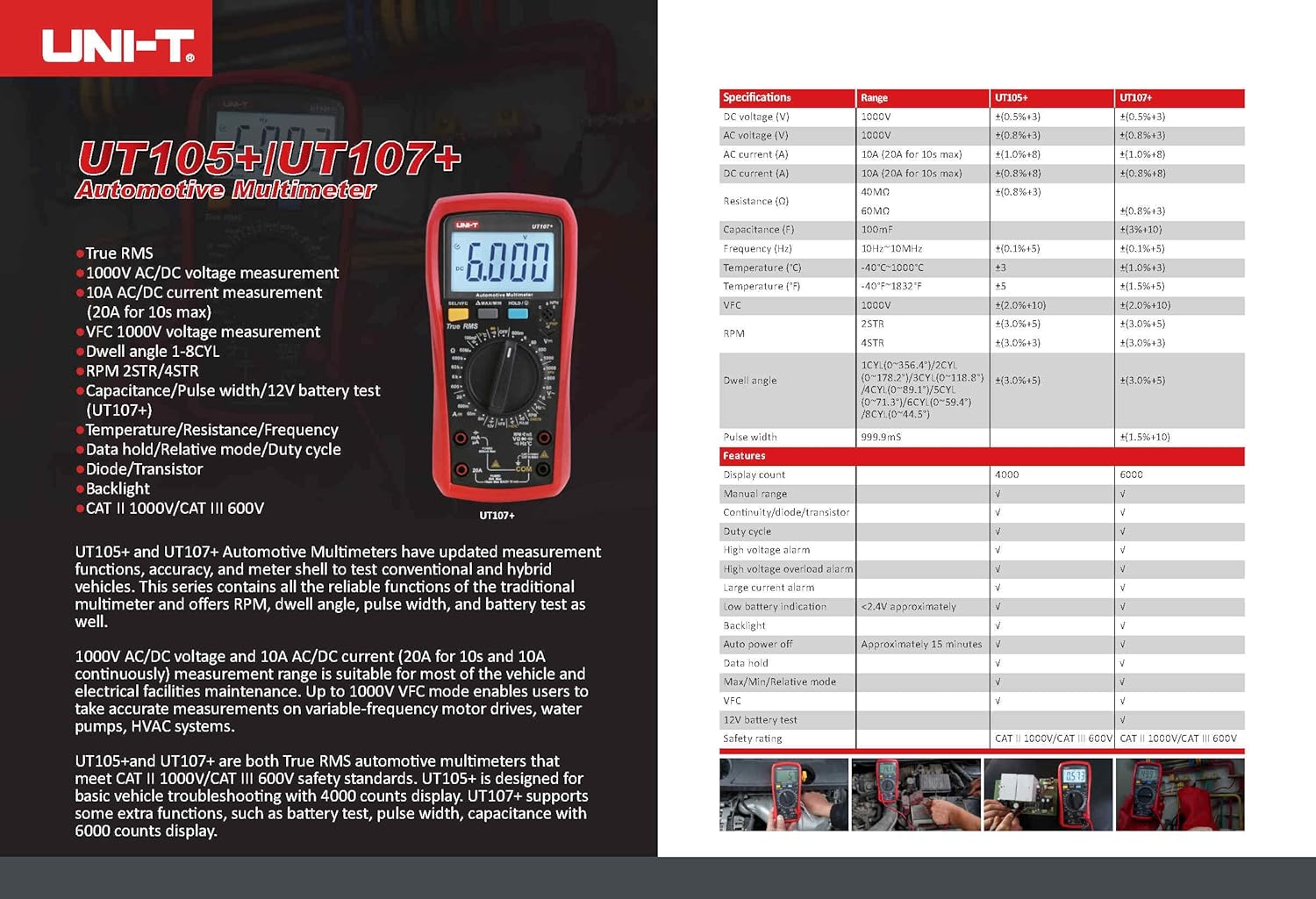

UT107+ Automotive Multimeters have updated measurement functions, accuracy, and meter shell to test conventional and hybrid vehicles. This series contains all the reliable functions of the traditional multimeter and offers RPM, dwell angle, pulse width, and battery test as well.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 3,010
(GST inclusive price) i-
Base Value: ₹ 2550.8
-
GST: (18) % ₹ 459.2
-
Total Value ₹ 3010
₹4,050.00
( - 26% OFF )
Description
Key Features
- True RMS
- 1000V AC/DC voltage measurement
- 20A AC/DC current measurement (20A for 10s max)

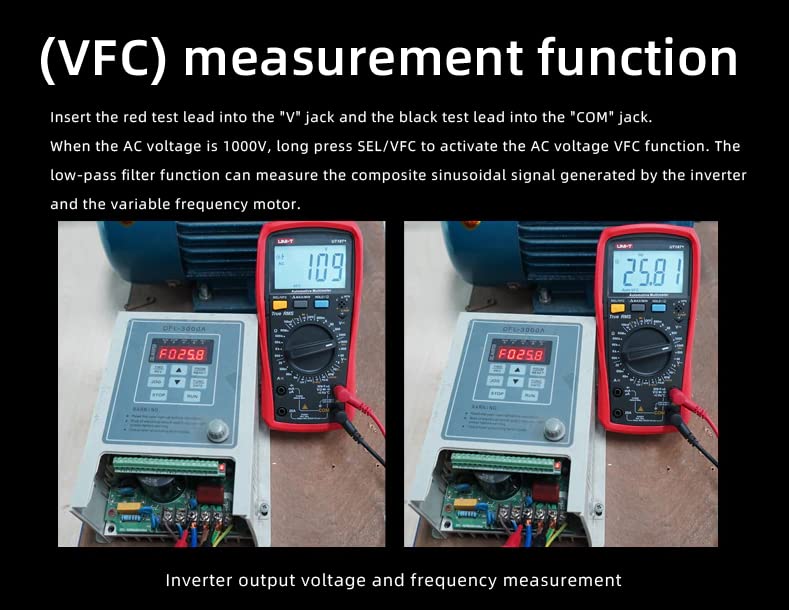

- VFC 1000V voltage measurement
- Dwell angle 1-8CYL
- RPM 2STR/4STR
- Capacitance/Pulse width/12V battery test (UT107+)
- Temperature/Resistance/Frequency
- Data hold/Relative mode/Duty cycle
- Diode/Transistor
- Backlight
- CAT II 1000V / CAT III 600V.

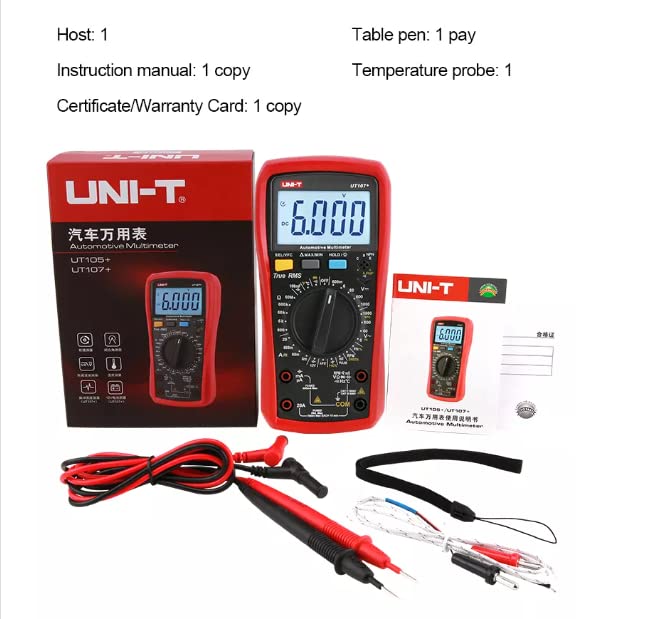

What's in the box?
|
Rating & Reviews
Rating
| Specifications | Range | UT107+ |
| DC voltage (V) | 400mV/4V/40V/400V/1000V | |
| 600mV/6V/60V/600V/1000V | ±(0.5%+3) | |
| AC voltage (V) | 4V/40V/400V/1000V | |
| 6V/60V/600V/1000V | ±(0.8%+3) | |
| AC current (A) | 4mA/40mA/400mA/10A (20A for 10s max) | |
| 6mA/60mA/600mA/10A (20A for 10s max) | ±(1.0%+8) | |
| DC current (A) | 4mA/40mA/400mA/10A (20A for 10s max) | |
| 6mA/60mA/600mA/10A (20A for 10s max) | ±(0.8%+8) | |
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | |
| 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(0.8%+3) | |
| Capacitance (F) | 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF | ±(3%+10) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+5) |
| Temperature (℃) | -40℃~1000℃ | ±(1.0%+3) |
| Temperature (℉) | -40℉~1832℉ | ±(1.5%+5) |
| VFC | 1000V | ±(2.0%+10) |
| RPM | 2STR | ±(3.0%+5) |
| 4STR | ±(3.0%+3) | |
| Dwell angle | 1CYL(0～356.4°)/2CYL(0～178.2°)/3CYL(0～118.8°)/4CYL(0～89.1°)/5CYL(0～71.3°)/6CYL(0～59.4°)/8CYL(0～44.5°) | ±(3.0%+5) |
| Pulse width | 999.9mS | ±(1.5%+10) |
| Features | ||
| Display count | 6000 | |
| Manual range | √ | |
| Continuity/diode/transistor | √ | |
| Duty cycle | √ | |
| High voltage alarm | √ | |
| High voltage overload alarm | √ | |
| Large current alarm | √ | |
| Low battery indication | ＜ Approximately 2.4V | √ |
| Backlight | √ | |
| Auto power off | Approximately 15 minutes | √ |
| Data hold | √ | |
| Max/Min/Relative mode | √ | |
| VFC | √ | |
| 12V battery test | √ | |
| Safety rating | CAT II 1000V/CAT III 600V | |
| General Characteristics | ||
| Power | AAA 1.5V x2 | |
| Product color | Red+Gray | |
| Product net weight | 348g (Including batteries) | |
| Product size | 183 x 88 x 56mm | |
| Standard individual packing | Gift box,carrying bag | |
| Standard quantity per carton | 20 pcs | |
| Standard carton measurement | 420×320×300mm | |
