UNI-T UT89X Digital multimeter
Click To Zoom
UNI-T UT89X Digital multimeter
UNI-T UT89X Digital multimeter
UT89X is a reliable hand-held 3 5/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. It attracts users with its bi-color durable case, modern exterior and multiple functions.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 2,159.00
(GST inclusive price) i₹2,800.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Specifications | Range | UT89X |
| DC voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.5%+2) |
| 200mV/2V/20V/200V/1000V | ||
| AC voltage (V) | 6V/60V/600V/1000V | ±(0.8%+5) |
| 200mV/2V/20V/200V/1000V | ||
| DC current (A) | 60μA/60mA/600mA/20A | ±(0.8%+8) |
| 60μA/6mA/60mA/600mA/20A | ||
| 2000μA/200mA/20A | ||
| AC current (A) | 60mA/600mA/20A | ±(1%+12) |
| 2000uA/200mA/20A | ||
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) |
| 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | ||
| Capacitance (F) | 100mF | ±(2.5%+20) |
| 200mF | ||
| Conductance (ns) | 200nS | |
| Frequency (Hz) | 9.999Hz/9.999MHz | ±(0.1%+4) |
| 60MHz | ||
| Duty cycle | 0.1%~99.9% | ±(2%+5) |

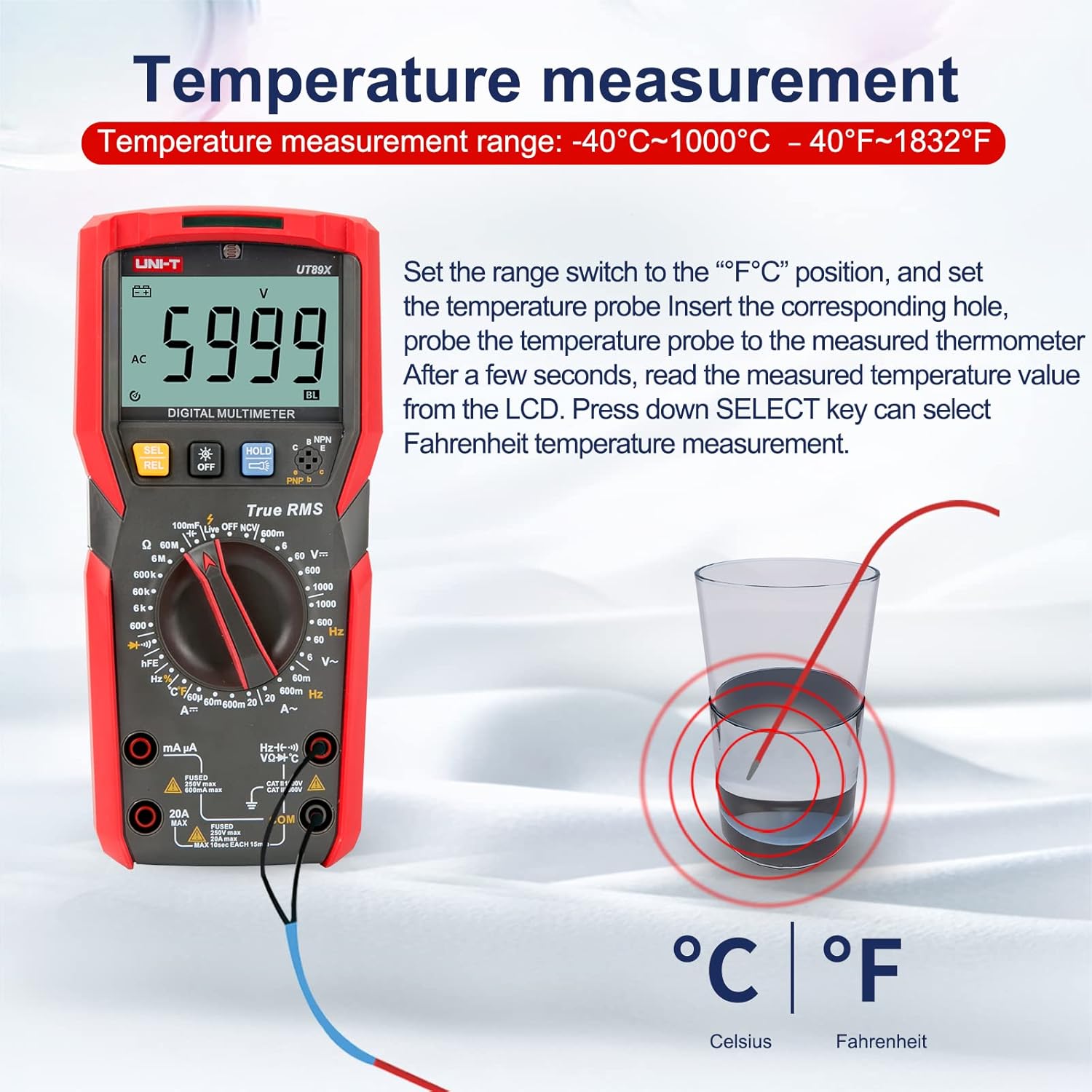

| Temperature (℃) | -40℃~1000℃ | ±(2%+4) |
| Temperature (℉) | -40℉~1832℉ | ±(2%+8) |
| Live wire test | √ | |
| LED test | ||
| Audible/visual alarm | V/A/Cap/Diode | Live/hFE/NCV |
| Transistor Hfe | √ | |
| Dual range NCV test | √ | |
| Flashlight | √ | |
| MAX/MIN | ||
| Peak Hold | ||
| LPF measurement | ||
| General Characteristics | ||
| Power | 1.5V battery (R03) x 4 | |
| Display | 61mm x 36mm | |
| Product net weight | 345g | |

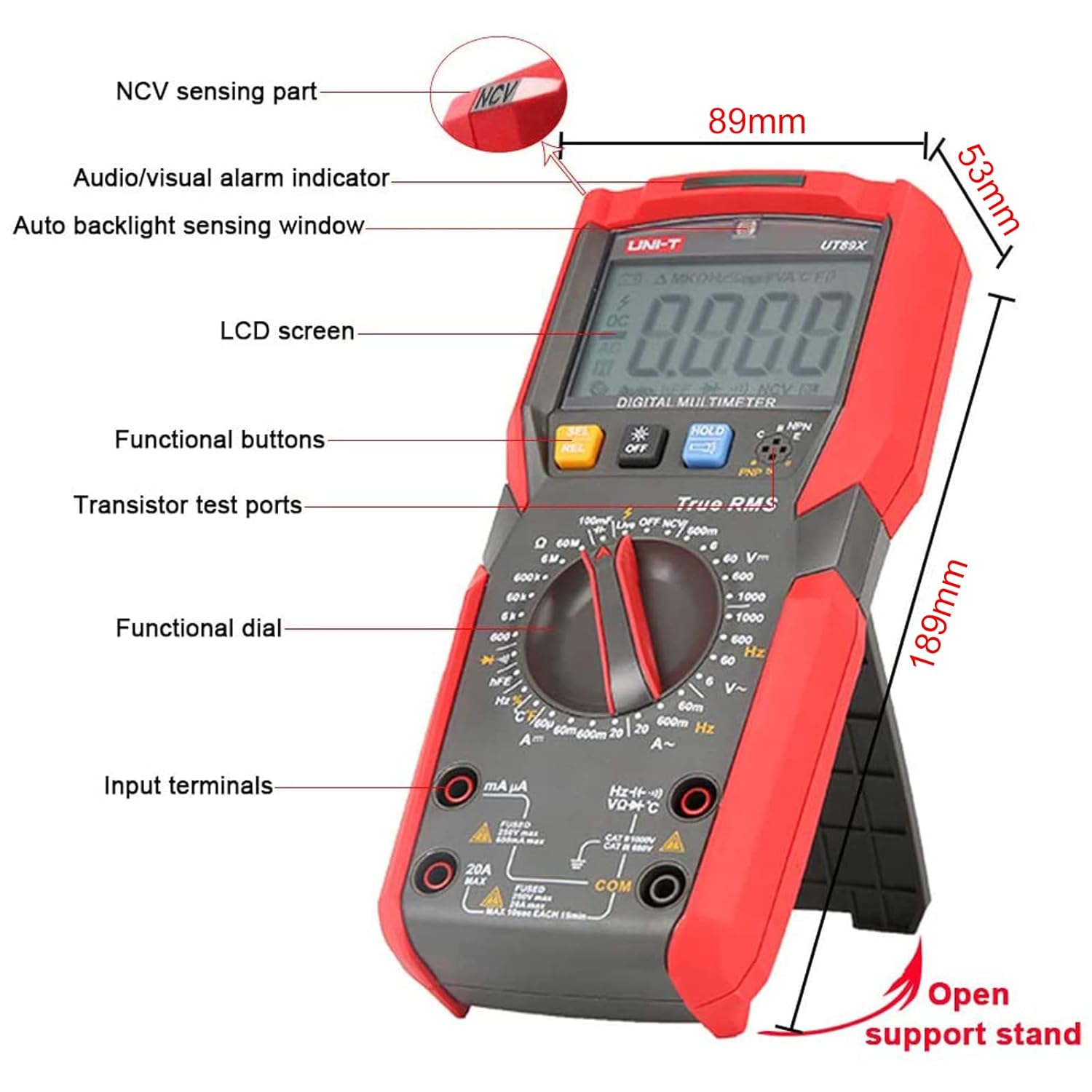

| Product size | 189mm x 89mm x 53mm | |
| Standard accessories | Batteries, test lead, k-type temperature probe (UT89X/UT89XE), English manual | |
| Standard individual packing | Gift box | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 450mm x 355mm x 340mm | |
| Standard carton gross weight | 12.2kg | |
