UNI-T UT890D+ Digital Multimeter
Click To Zoom
UNI-T UT890D+ Digital Multimeter
UNI-T UT890D+ Digital Multimeter

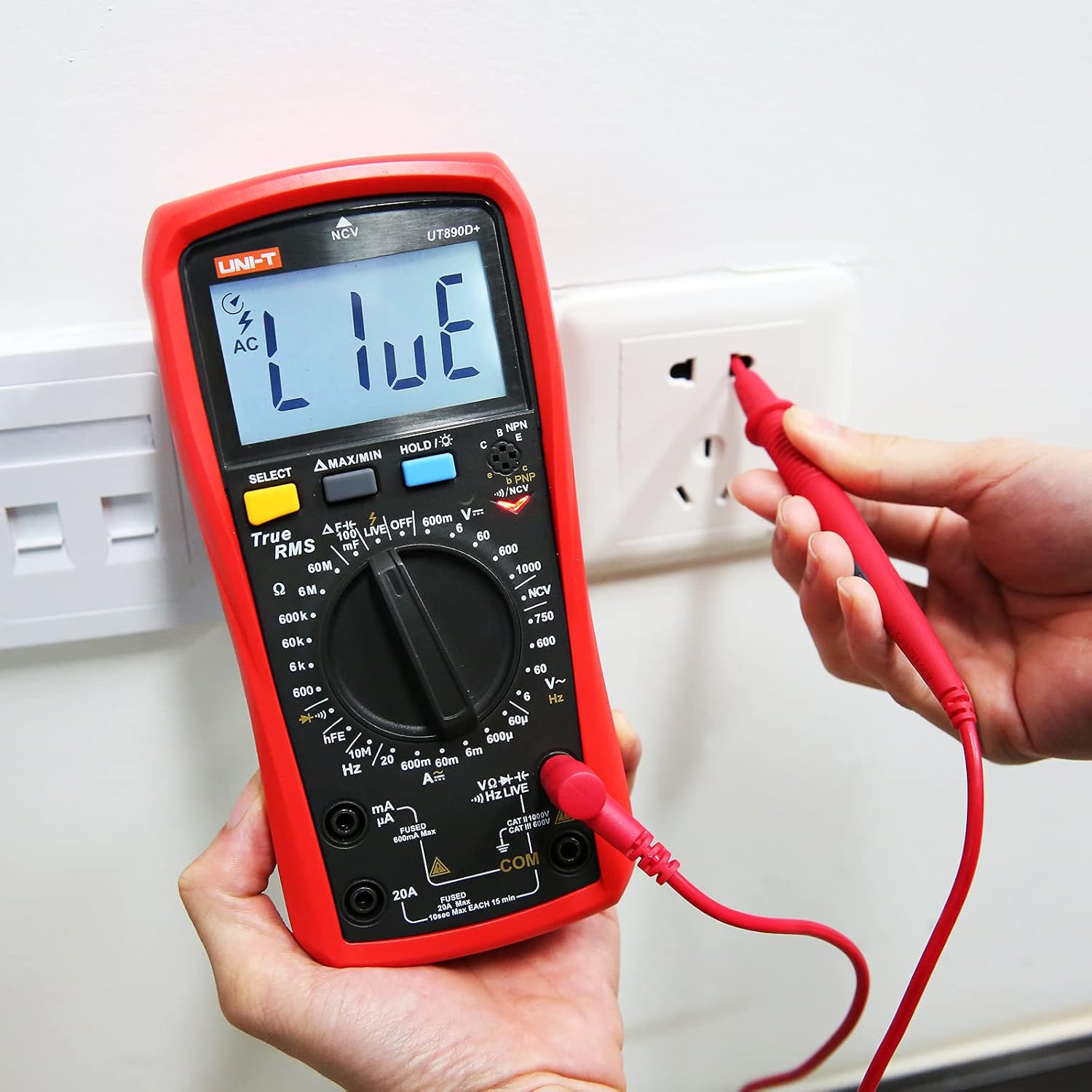

The UT890 series 6000-count true RMS digital multimeters are designed with large LCD display. The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 2,000
(GST inclusive price) i-
Base Value: ₹ 1694.9
-
GST: (18) % ₹ 305.1
-
Total Value ₹ 2000
₹2,500.00
( - 20% OFF )
Description
Key Features
- Manual range/True RMS
- Data hold/REL
- Audible/visual alarm (NCV/continuity)
- Current (AC/DC) mode memory
- Low battery indication: ≤2.5V
- NCV/hFE/Max/Min
- Diode test/Continuity test
- High voltage false detection: 1000Vrms
- Over-current alarm: ≥20A
- Auto power off/LCD backlight
What's in the box?
|
Rating & Reviews
Rating
| Specification | Range | UT890D+ |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+2) |
| AC Voltage | 6V/60V/600V/750V | ±(0.8%+3) |
| ACV Frequency | 10Hz～10kHz | ±（0.1%+5) |
| DC Current | 60uA//600uA/6mA/60mA/600mA/20A | ±(0.8%+8) |
| AC Current | 60uA/600uA/6mA/60mA/600mA/20A | ±(1%+12) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) |
| Capacitor | 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/ 600.0μF/6.000mF/60.00mF/100.0mF | ±(3%+10) |
| Frequency | 9.999Hz～9.999MHz | ±(1.0%+5) |
| Temperatue | –40℃～1000℃/–40°F～1832°F | |
| Fetures | ||
| Display Count | 6000 | |
| Manual Range | √ | |
| NCV | √ | |
| hFE | √ | |
| Diode Test | √ | |
| Continuity Test | √ | |
| Live | √ | |
| True RMS | √ | |
| Fuse blowing alarm | √ | |
| Acousto-optic indication(NCV/continuity) | √ | |
| High voltage false detection | 1000Vrms | √ |
| Current (AC/DC) mode memory | √ | |
| Over-current alarm | ≥20A | √ |
| Low Battery Indication | ≤2.5V | √ |
| Data Hold | √ | |
| REL | √ | |
| Max/Min | V 、A | √ |
| Auto Power Off | 15Min | √ |
| Back light | 30s | √ |
| Operation Temperature | 0℃～40℃ | |
| Safety | CAT II 1000V/CAT III 600V | |
| General Characteristics | ||
| Power | 1.5V x 2 | |
| Product color | Red and Gray | |
| Product Net Weight | 346g | |

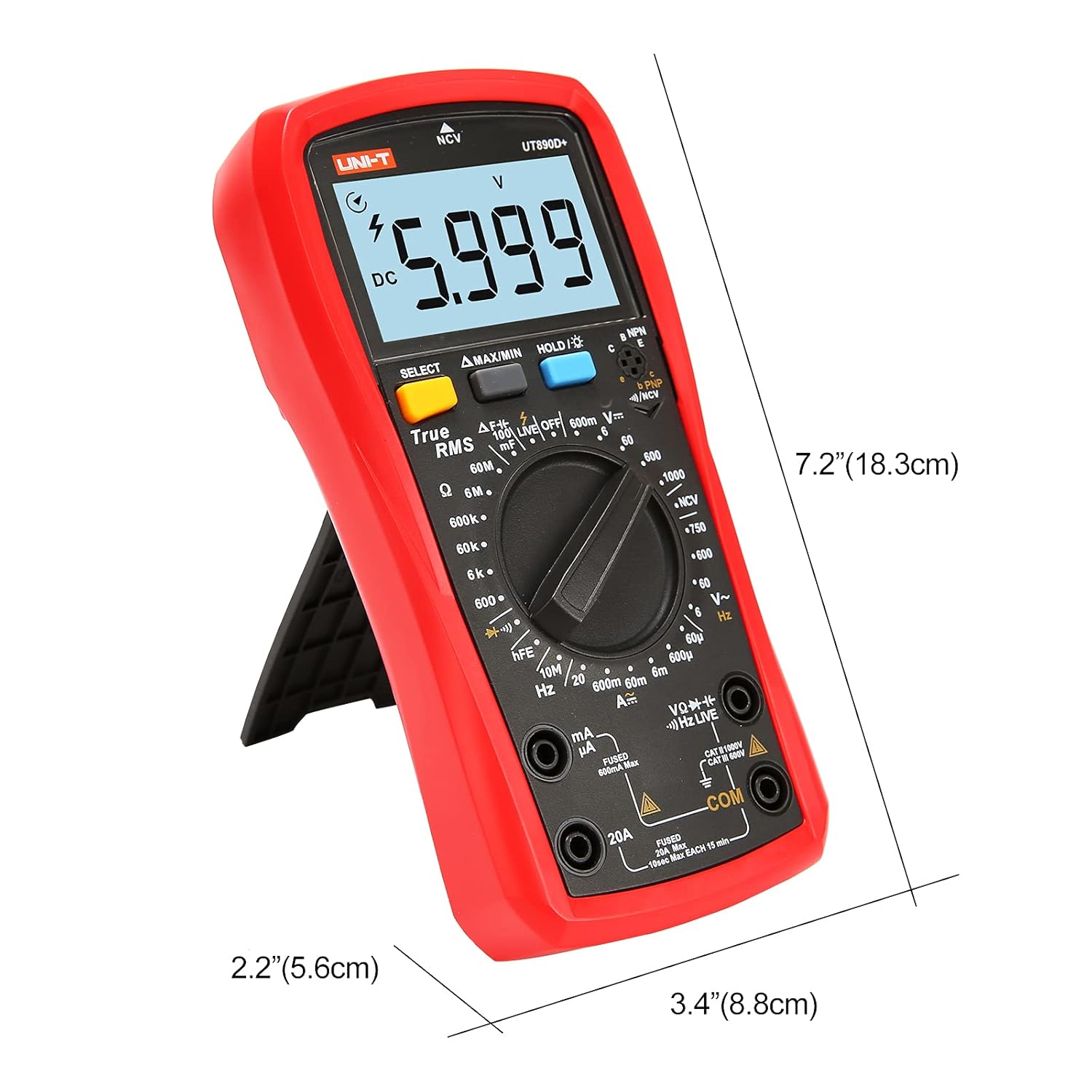

| Product Size | 183mm x 88mm x 56mm | |
| Standard Quantity Per Carton | 40pcs | |
| Standard carton measurement | 690mm x 450mm x 340mm | |
| Standard carton gross weight | 23Kg | |
