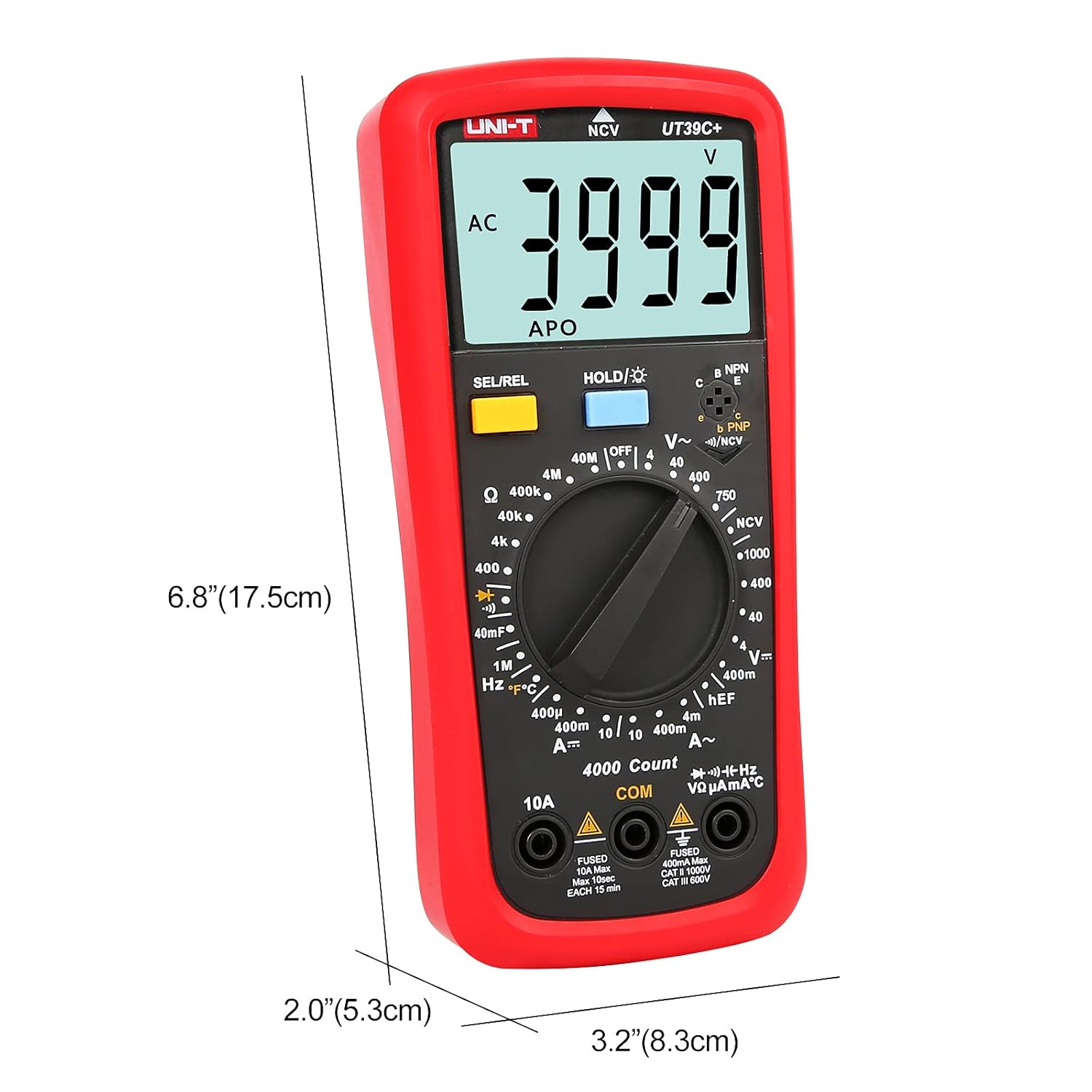

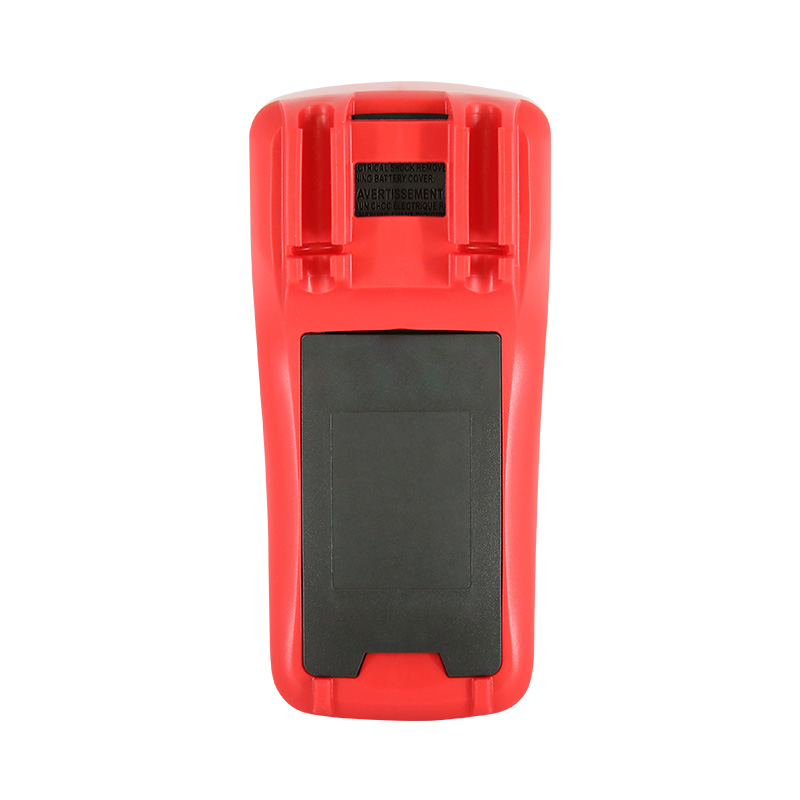

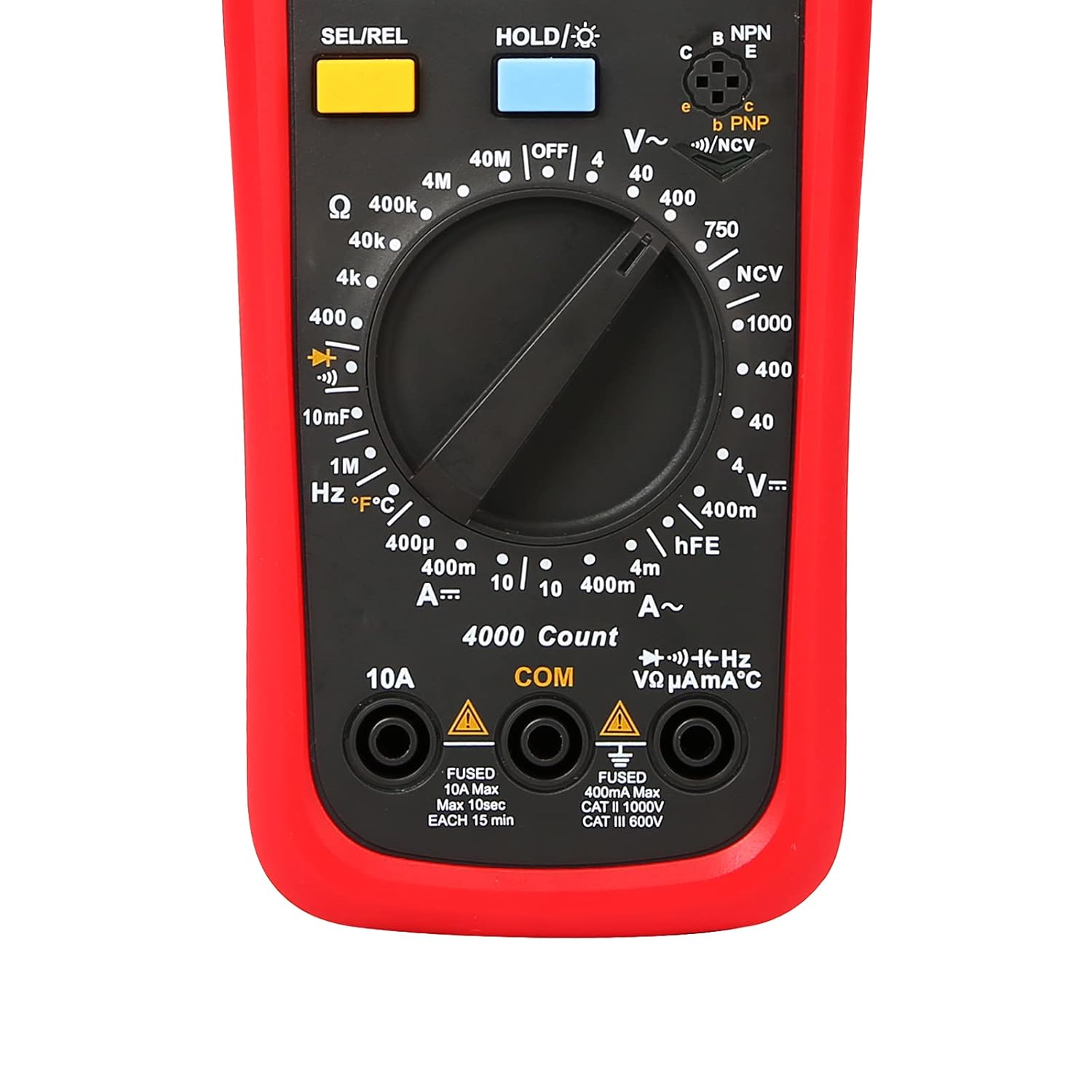

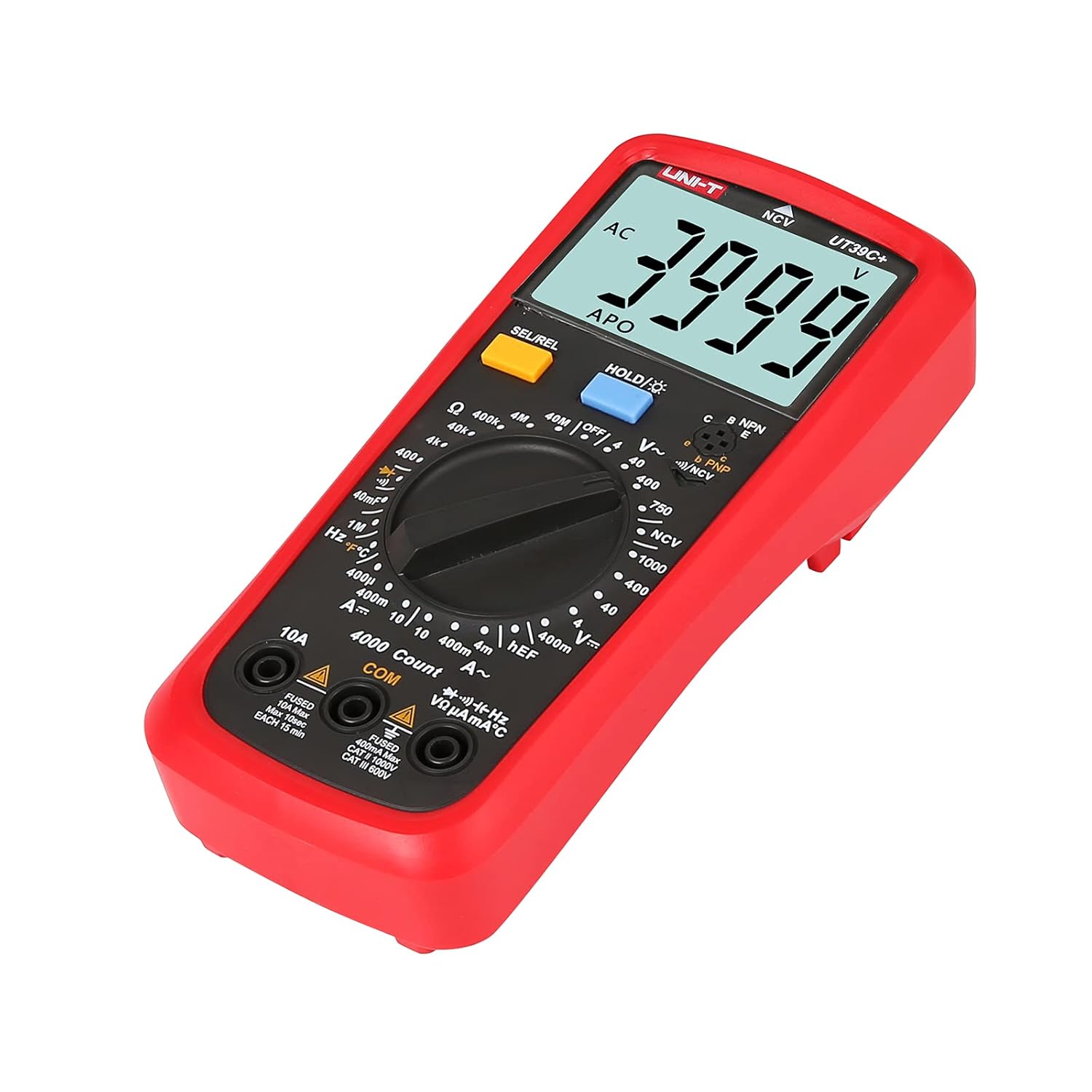

UNI-T UT39C+ Series Digital Multimeters
Click To Zoom
UNI-T UT39C+ Series Digital Multimeters
UNI-T UT39C+ Series Digital Multimeters

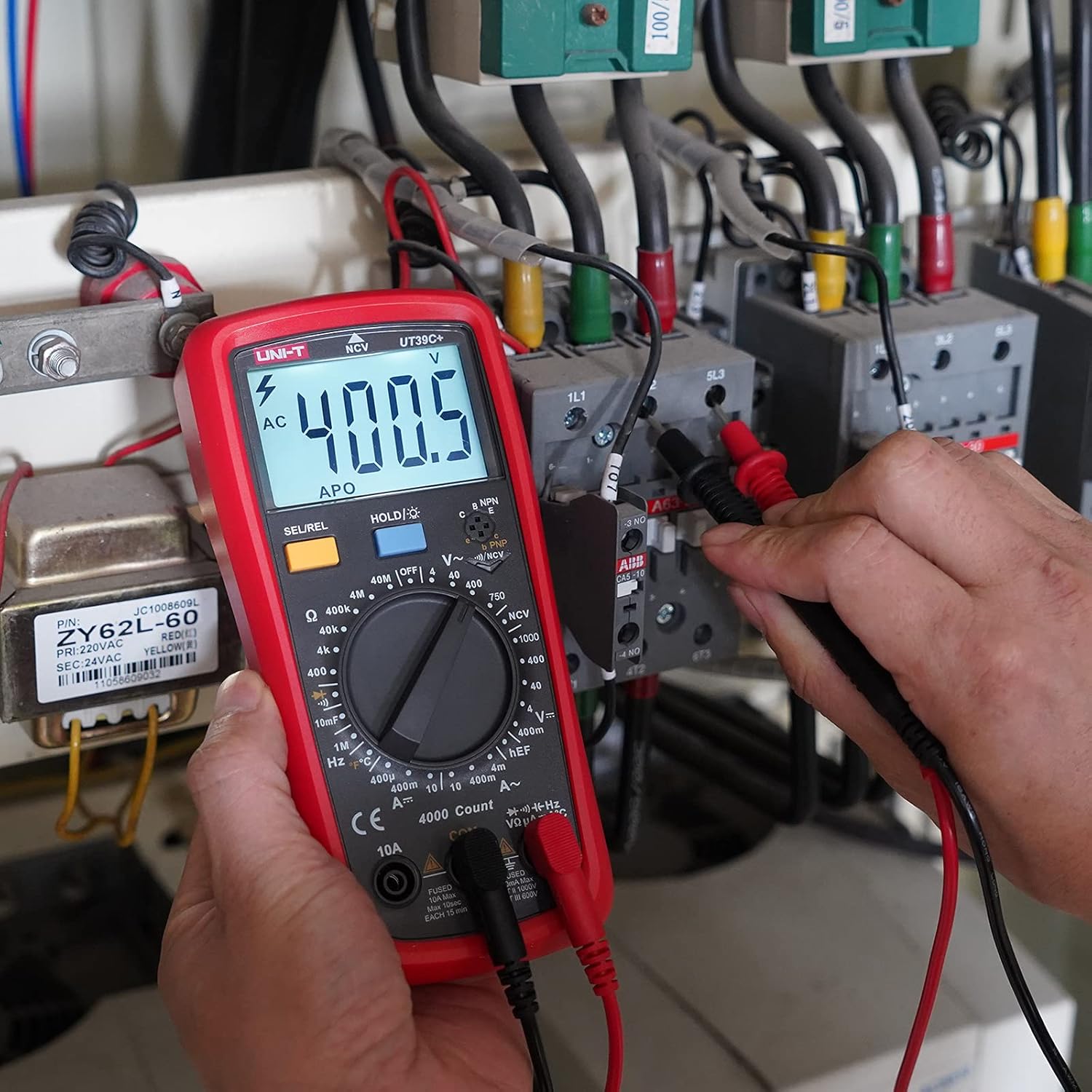

UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation. UT39C+ is suitable for HVACR maintenance with its temperature measurement feature. Designed according to CAT II 1000V/CAT III 600V safety standards.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 1,559.00
(GST inclusive price) i₹2,100.00
( - 26% OFF )
Description

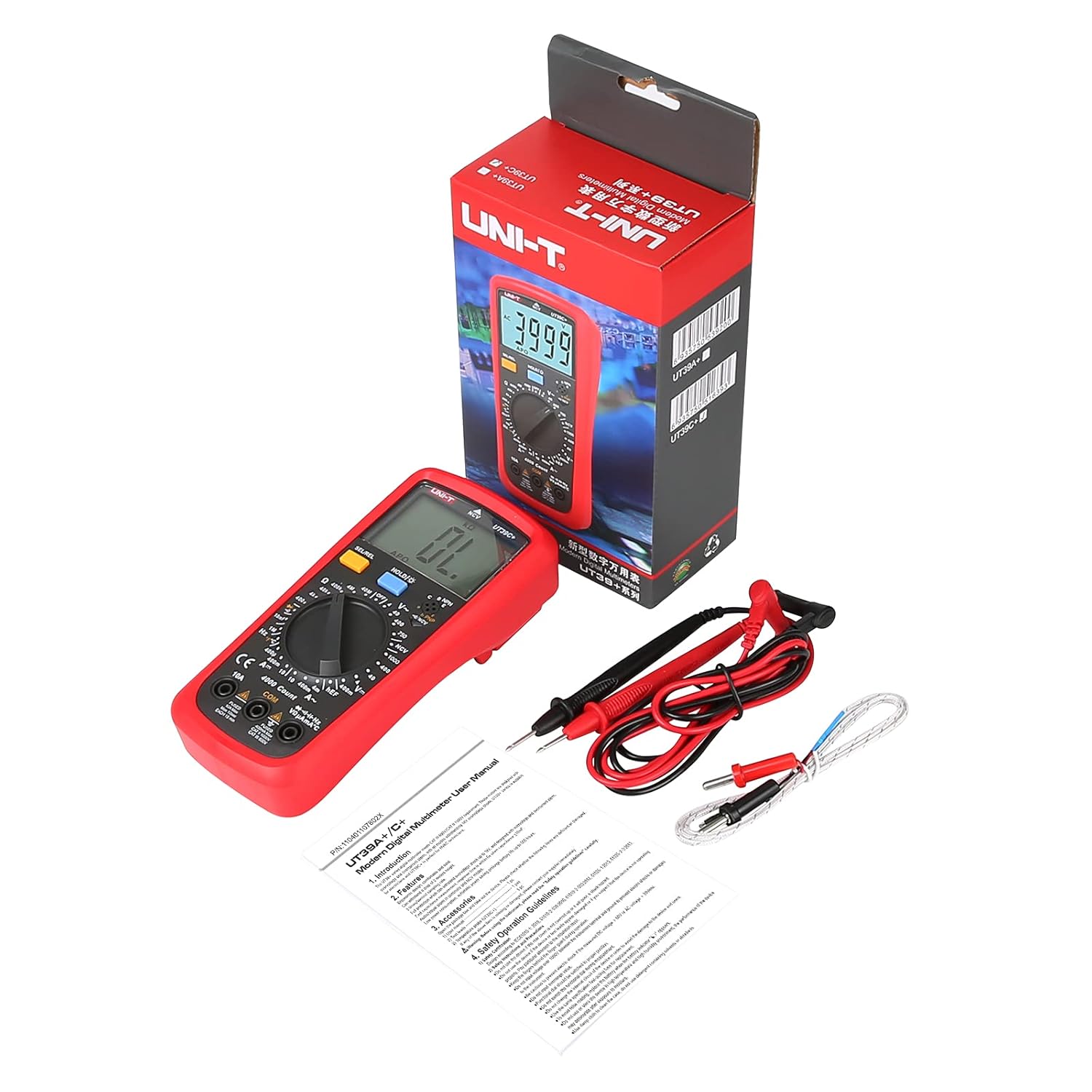

What's in the box?
|
Rating & Reviews
Rating
| Specifications | Range | UT39C+ |
| Category ratings | CAT II 1000V, CAT III 600V | |
| DC voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.5%+5) |
| 200mV/2V/20V/200V/1000V | ||
| AC voltage (V) | 4V/40V/400V/750V | ±(0.8%+3) |
| 200mV/2V/20V/200V/1000V | ||
| DC current (A) | 40μA/400μA/4mA/40mA/400mA/10A | |
| 400μA/400mA/10A | ±(0.8%+3) | |
| 2000uA/20mA/200mA/2A/20A | ||
| AC current (A) | 40mA/400mA/10A | |
| 4mA/400mA/10A | ±(1%+2) | |
| 2000uA/20mA/200mA/2A/20A | ||
| Resistance (Ω) | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ | |
| 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+2) | |
| 200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ | ||
| Capacitance (F) | 10mF | ±(4%+5) |
| 2000uF | ||
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) |
| 10Hz~2MHz | ||
| Temperature | -40℃~1000℃ | ±(1%+4) |
| -40℉~1832℉ | ±(1.5%+5) | |
| Conductance (nS) | 0.1~100nS | |
| Display count | 4000 | |
| NCV | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 56.5mm x 36mm | |
| Product net weight | 330g | |
| Product size | 175mm x 83mm x 53mm | |
| Standard individual packing | Gift box | |
| Standard quantity per carton | 30pcs | |
| Standard carton measurement | 390mm x 355mm x 340mm | |
| Standard carton gross weight | 14.5kg | |
