Metravi PRO 587 Digital TRMS Professional & Industrial 6000 counts Multimeter
Click To Zoom
Metravi PRO 587 Digital TRMS Professional & Industrial 6000 counts Multimeter
Metravi PRO 587 Digital TRMS Professional & Industrial 6000 counts Multimeter
Professional True-RMS Industrial Digital Multimeter with a 6000/60000 count LCD display. This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency (electrical & electronic), Duty Cycle, Diode Test and Continuity plus Thermocouple Temperature. It features a waterproof, rugged design for heavy-duty use. Proper use and care of this meter will provide many years of reliable service.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 13,700
(GST inclusive price) i-
Base Value: ₹ 11610.2
-
GST: (18) % ₹ 2089.8
-
Total Value ₹ 13700
₹19,575.00
( - 30% OFF )
Description
Key Features
- True RMS – Accurate for non-sinusoidal signals.
- Selectable Display – 6000 / 60000 count resolution.
- High Range – Measures up to 1000V and 10A (AC/DC).
- Wide Frequency – AC bandwidth up to 100kHz.
- Multi-function – Measures voltage, current, resistance, temp, frequency, etc.
- Advanced Modes – Includes low pass filter, Min/Max, Peak, Relative.
- Rugged Design – Drop-proof, waterproof, CAT III 1000V / CAT IV 600V.

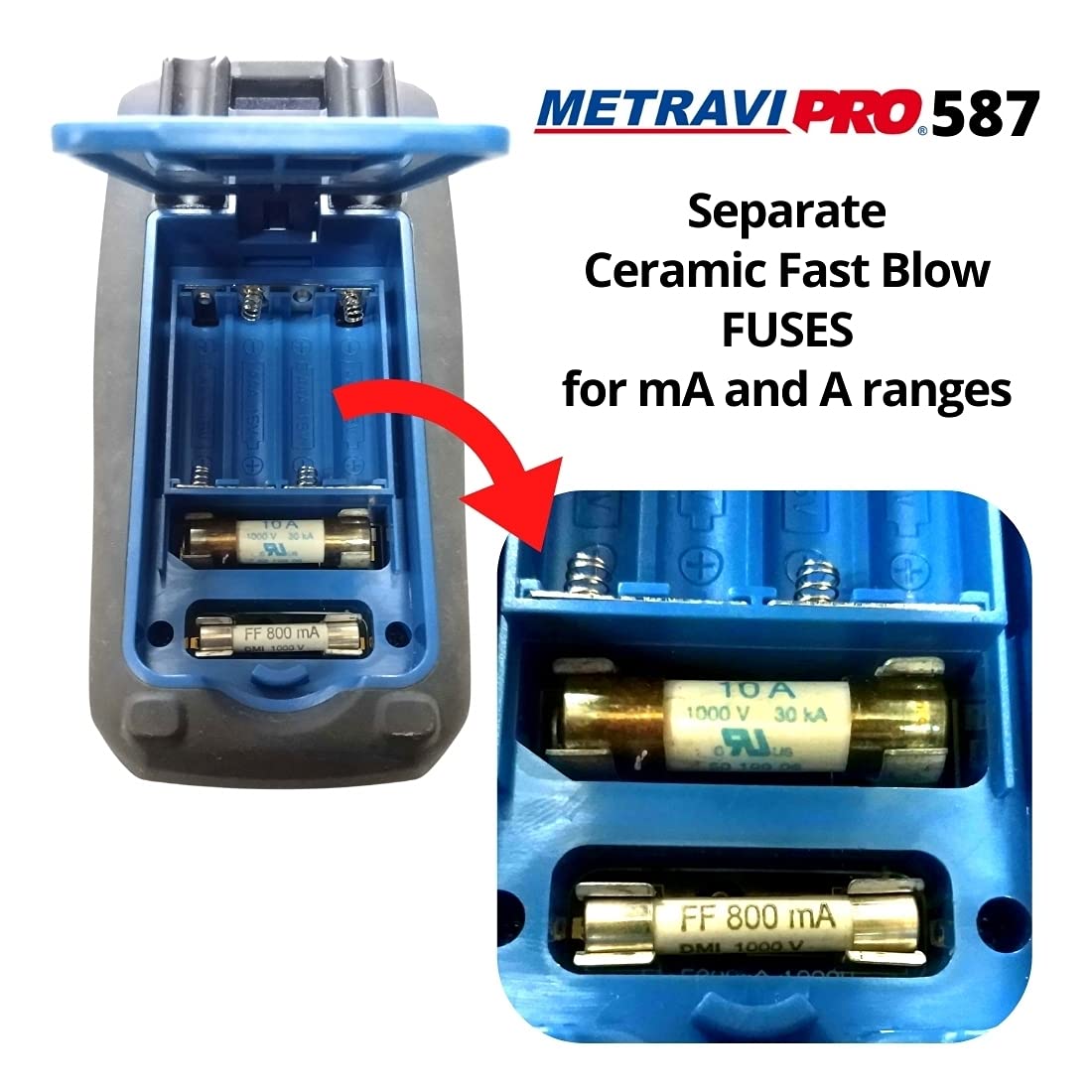

- Easy Fuse Access – Fast-blow ceramic fuse, user-accessible.
- User-Friendly – Backlight, bargraph, auto hold, auto power off.
- Temperature Ready – Measures -50°C to 760°C.

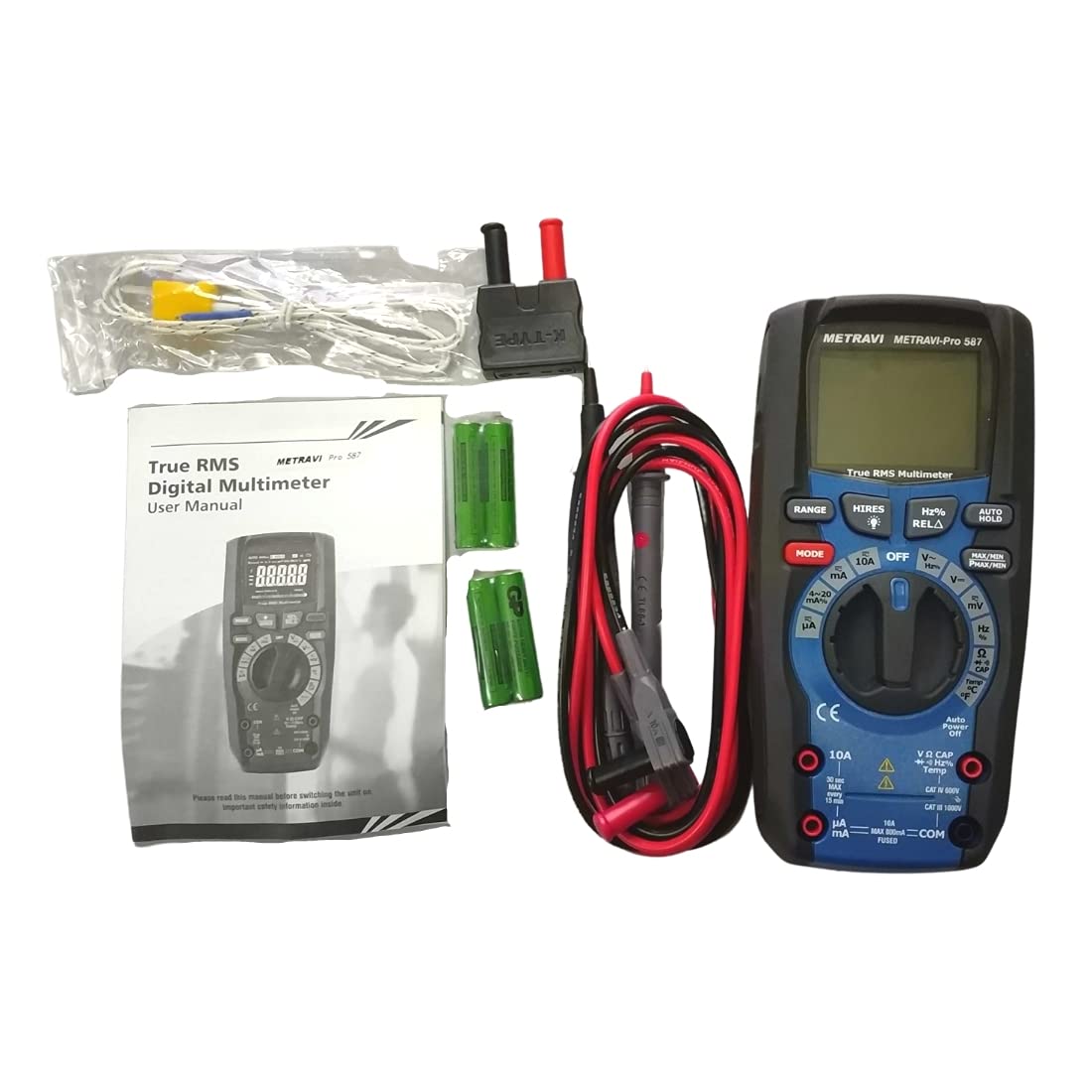

What's in the box?
|
Rating & Reviews
Rating
GENERAL
Enclosure : Double-moulded, Waterproof
Shock (Drop Test) : 6.5 feet (2 meters)
Diode Test : Test current of 0.9mA maximum, open circuit voltage 2.8V DC typical
Continuity Check : Audible signal will sound if the resistance is less than
35 (approx.), test current <0.35mA
PEAK : Captures peaks > 1 ms Temperature Sensor : Requires K-type thermocouple Input Impedance : >10M VDC
AC Response : True-RMS
AC True RMS : The term stands for “Root-Mean-Square” which represents the
method of calculation of the voltage or current value. Average responding multimeters are calibrated to read correctly only on sine waves and they will read inaccurately on non-sine wave or distorted signals. True-RMS meters read accurately on either type of signal.
ACV Bandwidth : 50Hz to 100KHz
Display : 6000/60,000 count backlit liquid crystal with bargraph
Overrange Indication : “OL” is displayed
Auto Power Off : 15 minutes (approximately) with disable feature
Polarity : Automatic (no indication for positive); Minus (-) sign for negative
Measurement Rate : 3 times per second, nominal
Low Battery Indication : “ ” is displayed if battery voltage drops below operating voltage
Battery : 4*1.5 volt (NEDA 1604) battery
Fuses : mA, μA ranges; 0.8A/1000V ceramic fast blow A range; 10A/1000V ceramic fast blow
Operating Temperature : 5°C to 40°C (41°F to 104°F)
Storage Temperature : -20°C to 60°C (-4°F to 140°F)
Operating Humidity : Max 80% up to 87°F (31°C) decreasing linearly to
Storage Humidity : 50% at 40°C (104°F)
Operating Altitude : <80% 7000ft. (2000 meters) maximum.
Safety : This meter is intended for origin of installation use and protected, against the users, by double insulation per EN61010-1 and IEC61010-1 2nd Edition(2001) to Category IV 600V and Category III 1000V; Pollution Degree 2. The meter also meets UL 61010-1, 2nd Edition (2004), CAN/CSA C22.2 No. 61010-1 2nd Edition (2004), and UL 61010-2-032 61010-2-033
MAX/ MIN - Records the Maximum and Minimum values while taking measurements
AUTO-HOLD - As soon as a reading is stable, once pressed, would hold the stable reading on the screen
DATA-HOLD - Freezes the data displayed on the screen
RELATIVE MEASUREMENT - Allows to make measurements relative to a stored reference value
TECHNICAL
| Function | Maximum Input |
| V DC or V AC | 1000V DC/ACRMS |
| mA AC/DC | 800mA 1000Vfast acting fuse |
A AC/DC | 10A 1000V fast acting fuse (20A for 30 secondsmax every 15 minutes) |
Frequency, Resistance, Capacitance, DutyCycle, Diode Test, Continuity Temperature |
600V DC/ACRMS |
DC Voltage
RANGE | RESOLUTION | ACCURACY |
600mV | 0.1mV |
±(0.9% reading+ 5digits) |
6V | 0.001V | |
60V | 0.01V | |
600V | 0.1V | |
1000V | 1V | ±(1.2% reading+ 5digits) |
AC Voltage
RANGE | RESOLUTION | ACCURACY |
|
|
| 50 to 1000Hz | 1KHz to 5KHz [1] | 5-100KHz [1] | |
600mV | 0.1mV |
±(1.0% reading + 5digits) |
±(3.0% reading + 5digits) | ±(5.5% reading + 30digits) |
6V | 0.001V | |||
60V | 0.01V | |||
600V | 0.1V | Unspecified | ||
1000V | 1V | Unspecified | Unspecified | |
All AC voltageranges are specifiedfrom 5% of range to 100% of range. [1] upper 10% of range,sine wave. Low Pass Filter : Range 1000V 50/60Hz,±(1% + 20) 60~400Hz ±(3%+20) >3KHz (-3dB) | ||||
DC Current
RANGE | RESOLUTION | ACCURACY |
600μA | 0.1μA |
±(1.5% reading + 5digits) |
6000μA | 1μA | |
60mA | 0.01mA | |
600mA | 0.1mA | |
10A | 0.01A |
AC Current
RANGE | RESOLUTION | ACCURACY | |
| 50 to 1000Hz | 1K to 5KHz | |
600μA | 0.1μA |
±(2.5% reading + 5digits) |
±(3.5% reading + 5digits) |
6000μA | 1μA | ||
60mA | 0.01 mA | ||
600mA | 0.1mA | ||
10A | 0.01A | Unspecified | |
Resistance
RANGE | RESOLUTION | ACCURACY |
| 600W | 0.1W | ±(2.0% reading + 9digits) |
| 6kW | 0.001kW |
±(1.2% reading+ 5digits) |
| 60kW | 0.01kW | |
| 600kW | 0.1kW | |
| 6MW | 0.01MW | ±(2.0% reading + 10digits) |
| 60MW | 0.01MW |
Capacitance
RANGE | RESOLUTION | ACCURACY |
60nF | 0.01nF |
±(3.5% reading+ 10digits) |
| 600nF | 0.1nF | |
6μF | 0.001μF |
±(2.5% reading+ 10digits) |
60μF | 0.01μF | |
| 600μF | 0.1μF | |
| 6000μF | 1μF | ±(3.5% reading + 10digits) |
Frequency (Electronic)
RANGE | RESOLUTION | ACCURACY |
| 60Hz | 0.001Hz |
±(1.0% reading + 2digits) |
| 600Hz | 0.01Hz | |
| 6kHz | 0.0001kHz | |
| 60kHz | 0.001kHz | |
| 600kHz | 0.01kHz | |
| 6MHz | 0.0001MHz | |
| 10MHz | 0.001MHz |
Frequency (Electrical)
RANGE | RESOLUTION | ACCURACY |
| 40.00-10KHz | 0.01Hz | ±0.5% reading |
Duty Cycle
RANGE | RESOLUTION | ACCURACY |
0.1 to 99.90% | 0.1% | ±(1.2% reading + 2digits) |
Temperature(Type-K)
RANGE | RESOLUTION | ACCURACY |
| -58 to 1400°F | 1°F | ±(2.0% reading + 5.5°F) |
-50 to 760°C |
1°C | ±(2.0% reading +3°C) (probe accuracy not included) |
4-20mA%
RANGE | RESOLUTION | ACCURACY |
-25 to 125% | 0.1% | ±20 digits |
