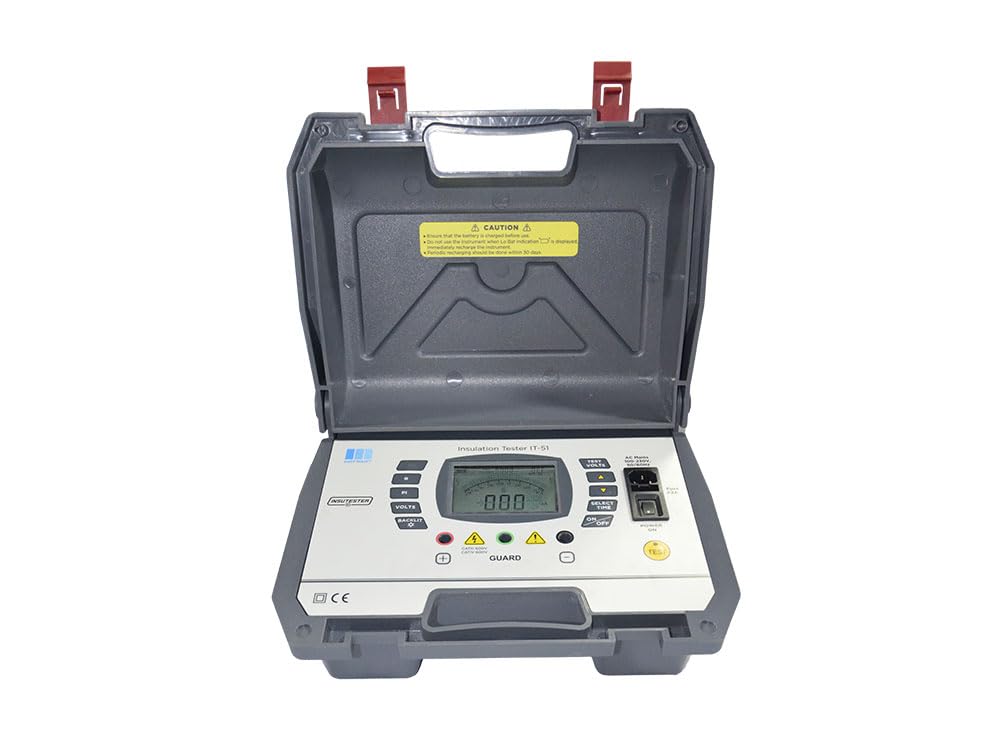

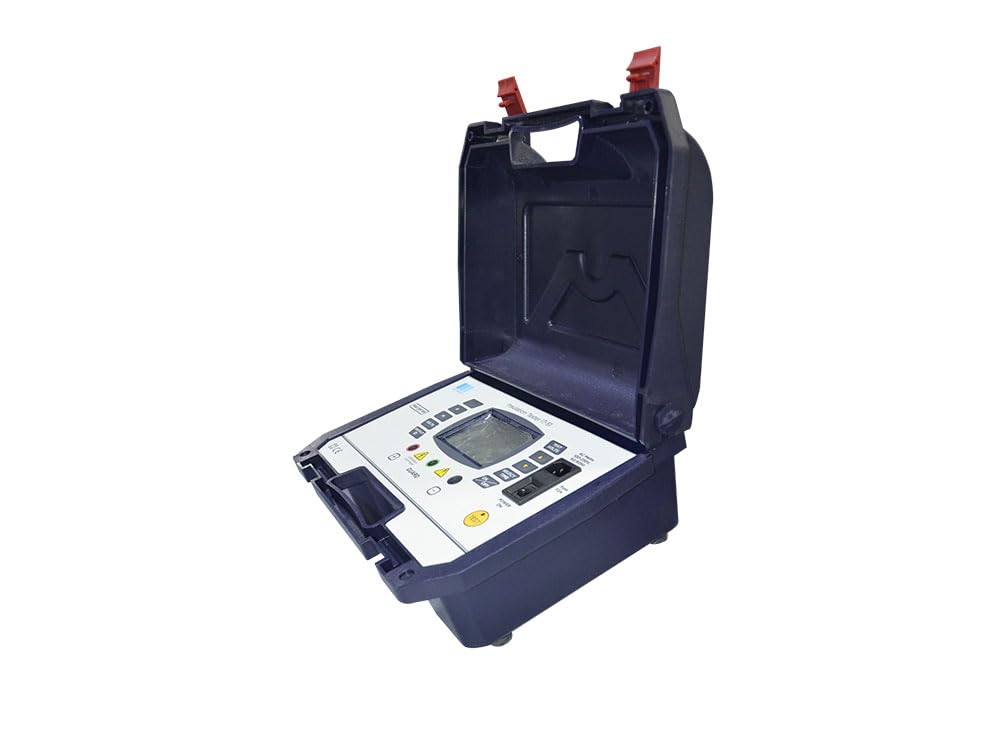

Motwane IT-51-5 KV Digital Insulation Tester
Motwane IT-51-5 KV Digital Insulation Tester
The Motwane IT-51 is a microprocessor based digital insulation tester designed for testing various types of electrical apparatus like transformers, switchgear, motors, generators, cables, and substation products. IT-51 has a digital display and an analog for arc display. It automatically performs IR Test and Polarization Index by selecting modes. IT-51 has a large LCD white backlight display that shows leakage current in scrolling form along with its IR value and PI value
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 1,03,200
(GST inclusive price) i-
Base Value: ₹ 87457.6
-
GST: (18) % ₹ 15742.4
-
Total Value ₹ 103200
₹1,39,800.00
( - 26% OFF )
Description
Key Features
- Selectable Test Voltage from 250V, 500V, 1000V, 2500V, 5000V DC.
- Insulation Resistance Measurement up to 1TΩ
- Polarization Index Measurement Facility
- Short Circuit Current < 1.4 mA. approx..
- AC/DC Voltage Measurement up to 600V.
- Two Programmable Timer from 0 sec to 99 minutes
- Liquid Crystal Display with pleasant white backlit.
- Internal rechargeable Battery.
- Safety - IP 54, CAT IV 600V and CE conformity.
- Robust ABS body with self-carrying handle for easy portability.
- Automatic discharge for capacitive circuits.
- Guard Terminal to minimize the surface leakage

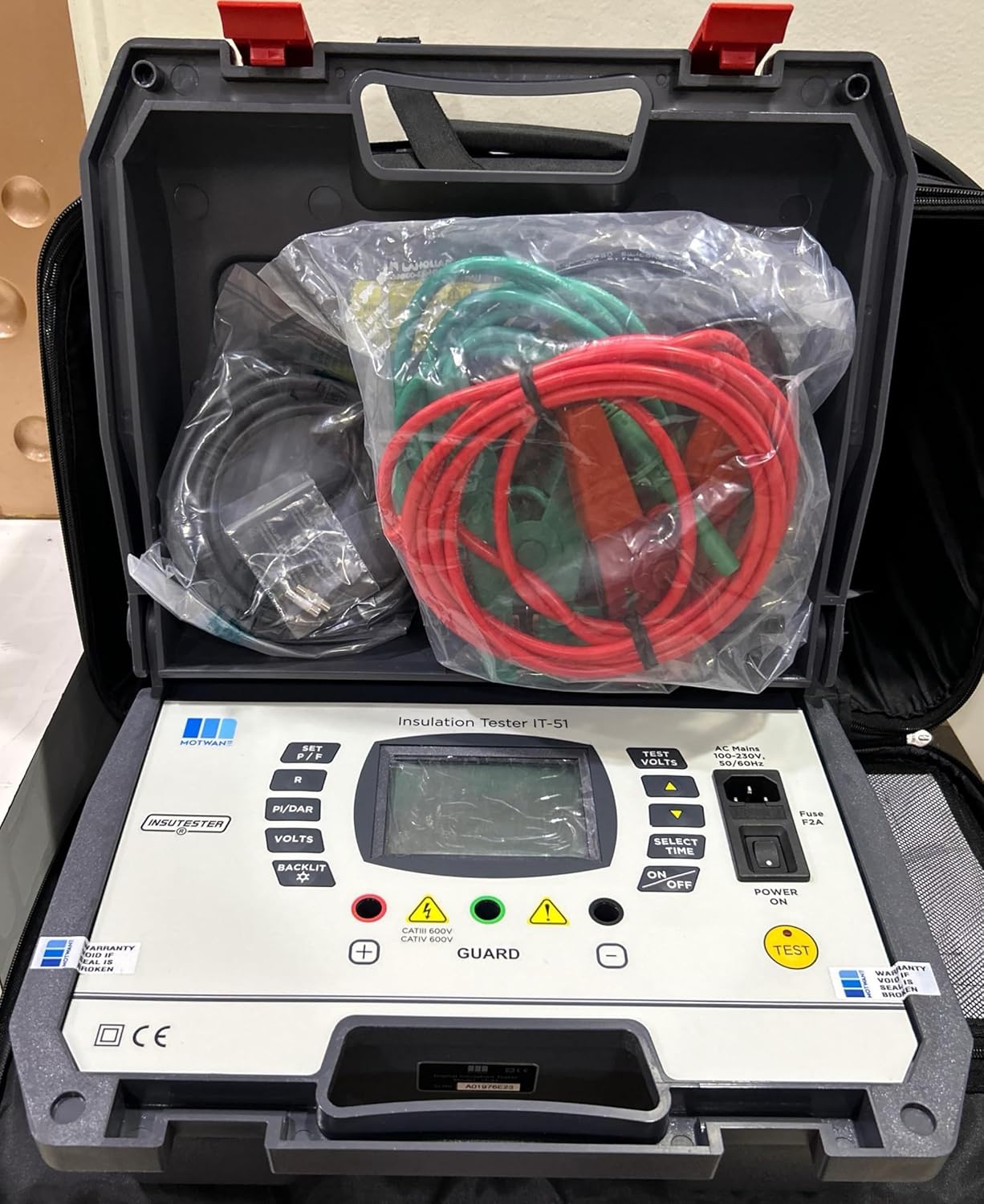

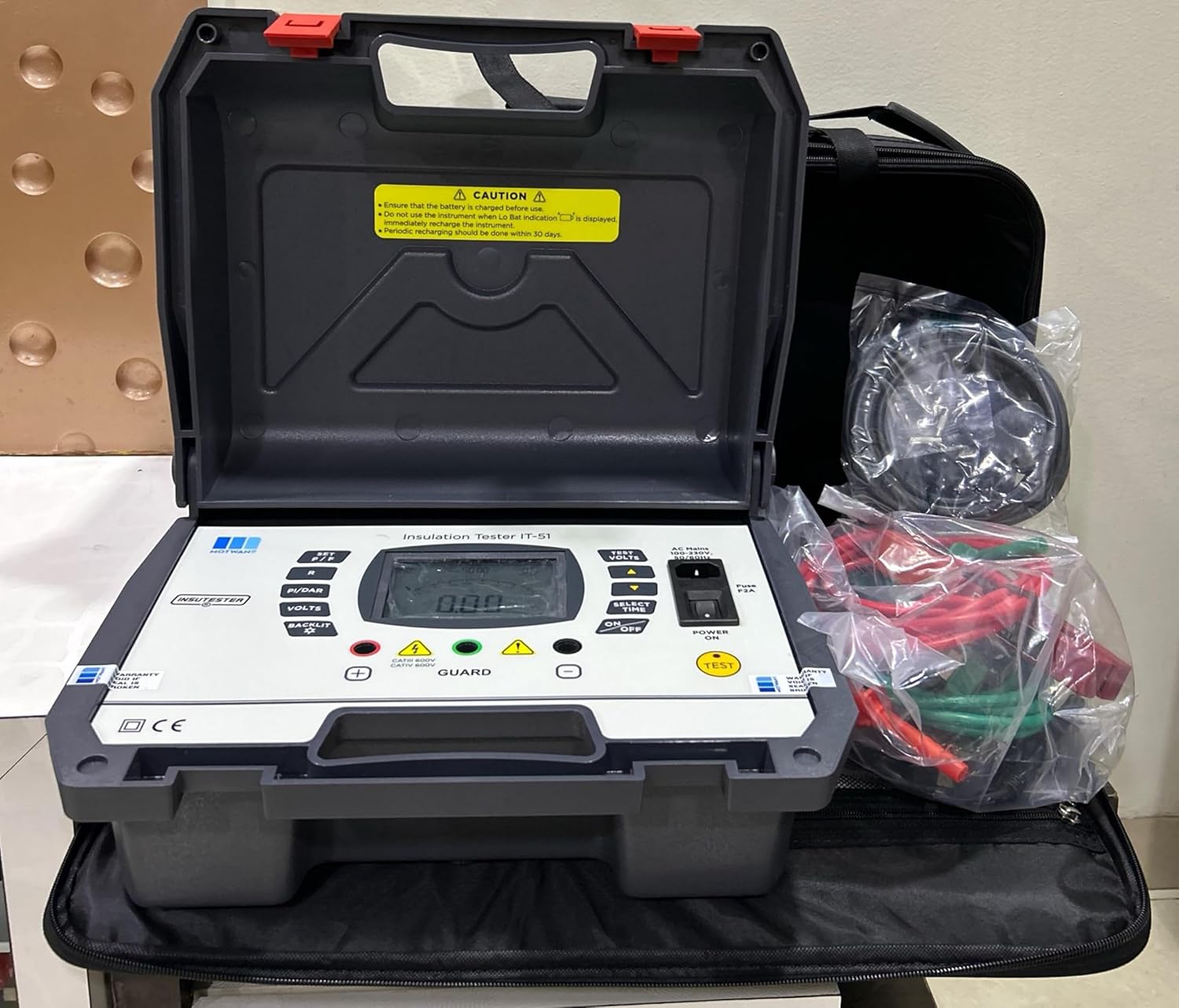

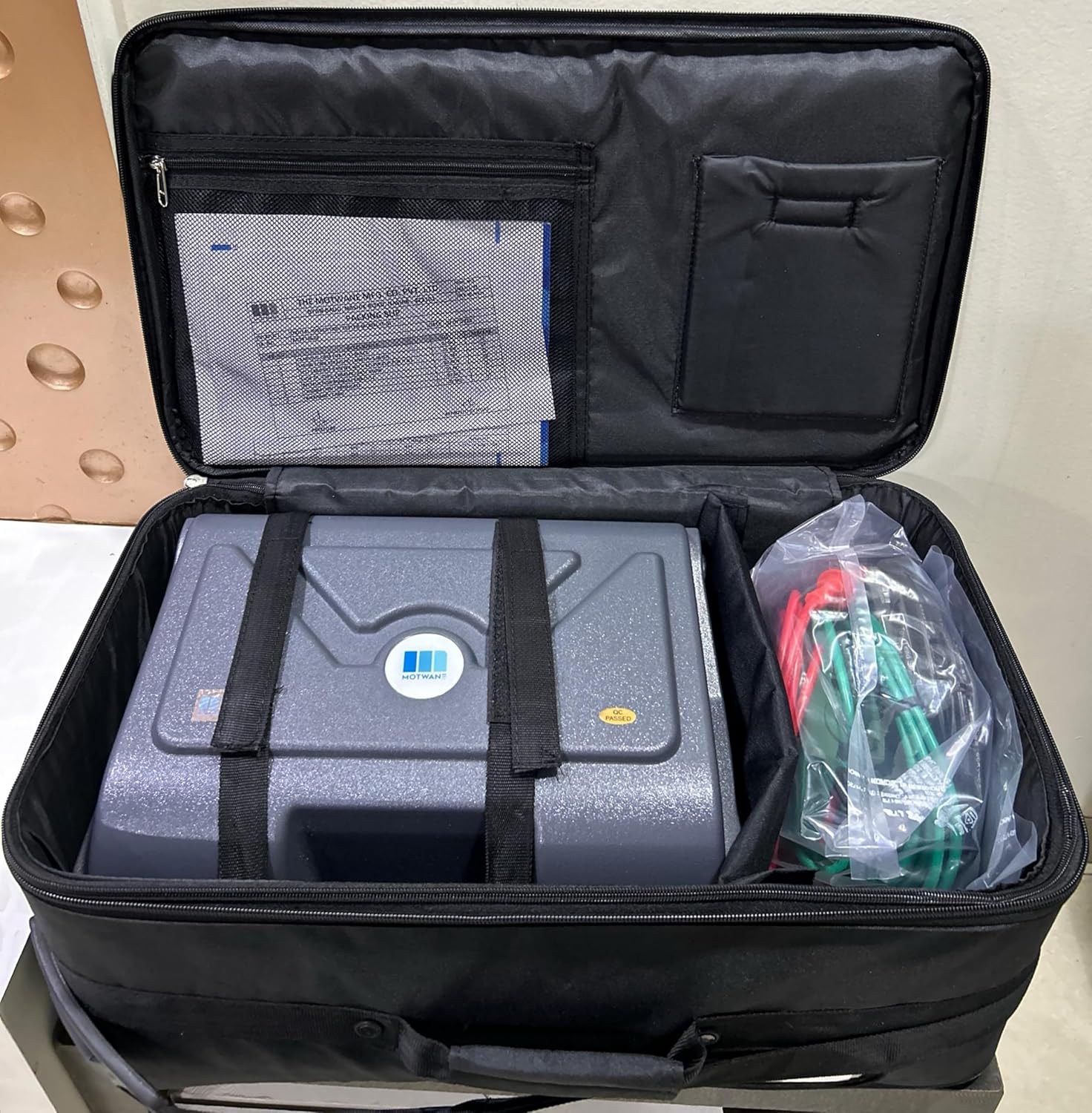

What's in the box?
|
Rating & Reviews
Rating
Terminal Voltage
Test Voltage : 250V, 500V, 1000V, 2500V, 5000V
Test Voltage Accuracy : ± 5 % of rdg
Short circuit current : 1.4 mA ± 0.5 mA
Programmable Timers : T1 and T2
Insulation Resistance
Analog Display : 1 KΩ to 1 TΩ
Digital Display : (3 Digit Display) 1 KΩ to 1 TΩ
Insulation Accuracy
Up to 1GΩ : All Ranges ±( 5 % + 2 digits)
Over 1 GΩ : 5000V ± (5 % + 0.04% per GΩ)
2500V ± (5 % + 0.08% per GΩ)
1000V ± (5 % +0.2% per GΩ)
500V ± (5 % + 0.4% per GΩ)
250V ±( 5 % + 0.8% per GΩ)
AC/DC Voltage Measurement
Range : Up to 600V
Accuracy : ± (5 % of rdg + 5 digits)
Polarization index (PI)
Display range : 0 – 99.9
Accuracy : ±(5 % of reading + 5 digits)
Resolution : 0.01
Power Supply Specifications
Battery: Internal Rechargeable
Display: Custom Built LCD with white a backlight
Mains Power Supply: 110/ 230VAC 50/60Hz
General
Weight: 5.0 Kg (Approx) (without Accessories)
Dimensions (H X W X L) : 195 mm X 290 mm X 360 mm (Approx)
Environmental Specifications
Operating Temperature: -10°C to 55°C
Storage Temp: -20°C to 70°C
Humidity: less than 95% RH, non 0 condensing max at 40°C
Safety and Standards
Safety in accordance with : EN 61010-1 : 2001
EMC in accordance with EN 61326-1 : 2006
Type Test in accordance with IS 11994
Ingress Protection IP 54
CE & CAT IV 600V
Safety of test lead in accordance with
EN 61010-031 : 2002 +A1 : 2008
