Mitutoyo Outside Micrometer
Click To Zoom
Mitutoyo Outside Micrometer
Mitutoyo Outside Micrometer

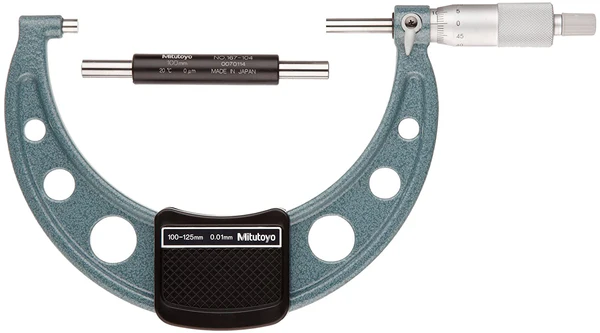

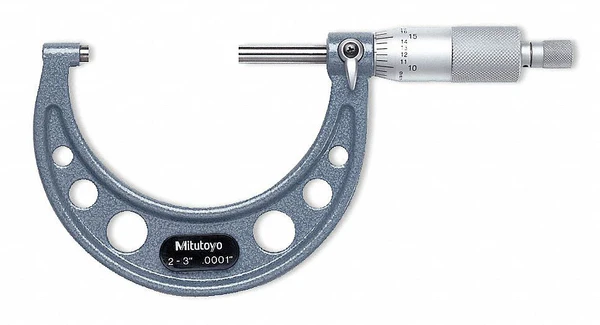

The Mitutoyo Outside Micrometer offers precise external measurements with a ratchet stop for consistent force. Its carbide-tipped measuring faces ensure durability and accuracy, while the clear thimble scale and ergonomic design make it ideal for professional machining and inspection tasks.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 3,260
(GST inclusive price) i-
Base Value: ₹ 2762.7
-
GST: (18) % ₹ 497.3
-
Total Value ₹ 3260
₹6,030
( - 54% OFF )
Description
Key Features
- Hammertone-green, backed- enamel-finished frame.
- Ratchet stop or friction thimble for excellent repeatability
- Supplied with a setting standard (except for 0-25mm/0-1'' models)
Rating & Reviews
Rating
Product Specifications
| TITLE | CODE | RANGE | LEAST COUNT | ACCURACY |
| Outside Micrometers (MM) | 103-129 | 0-25MM | 0.001MM | ±2µm |
| 103-130 | 25-50MM | 0.001MM | ±2µm | |
| 103-137 | 0-25MM | 0.01MM | ±2µm | |
| 103-138 | 25-50MM | 0.01MM | ±2µm | |
| 103-139 | 50-75MM | 0.01MM | ±2µm | |
| 103-140 | 75-100MM | 0.01MM | ±3µm | |
| 103-141 | 100-125MM | 0.01MM | ±3µm | |
| 103-142 | 125-150MM | 0.01MM | ±3µm | |
| 103-142 | 150-175MM | 0.01MM | ±4µm | |
| 103-144 | 175-200MM | 0.01MM | ±4µm | |
| Outside Micrometers (INCH) | 103-177 | 0-1" | 0.001" | ±0.0001" |
| 103-178 | 1-2" | 0.001" | ±0.0001" | |
| 103-179 | 2-3" | 0.001" | ±0.0001" | |
| 103-180 | 3-4" | 0.001" | ±0.00015" |
| TECHNICAL DATA | |
| Accuracy | Refer to the list of specifications. |
| Graduation | 0.01mm, 0.001mm, 001'' 0r .0001 |
| Flatness | 0.6µm/.000024'' for models up to 300mm/12'' |
| 1µm/.00004'' for models over 300mm/12'' | |
| Parallelism | (2+R/100)µm R=max. range (mm) |
| [.00008+.00004(R/4)]'' , R=max, range (inch) | |
| *fraction rounded down | |
| Measuring faces carbide | |
