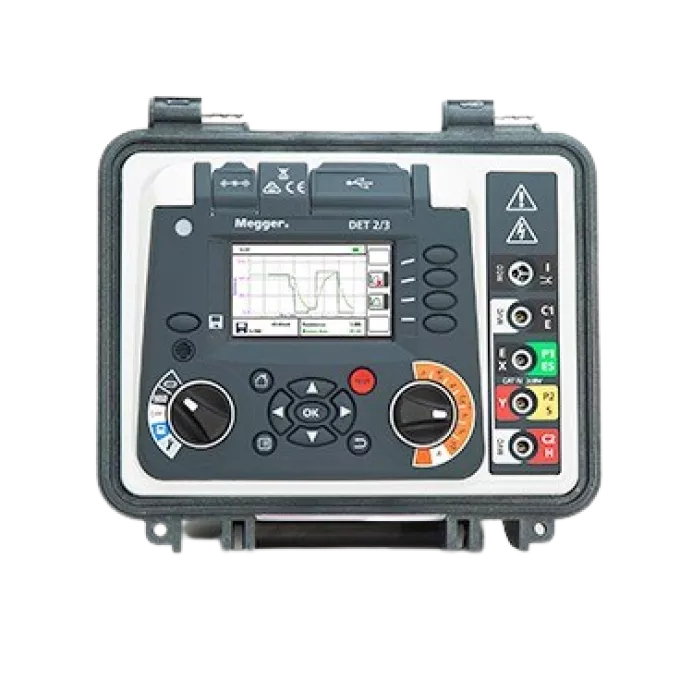

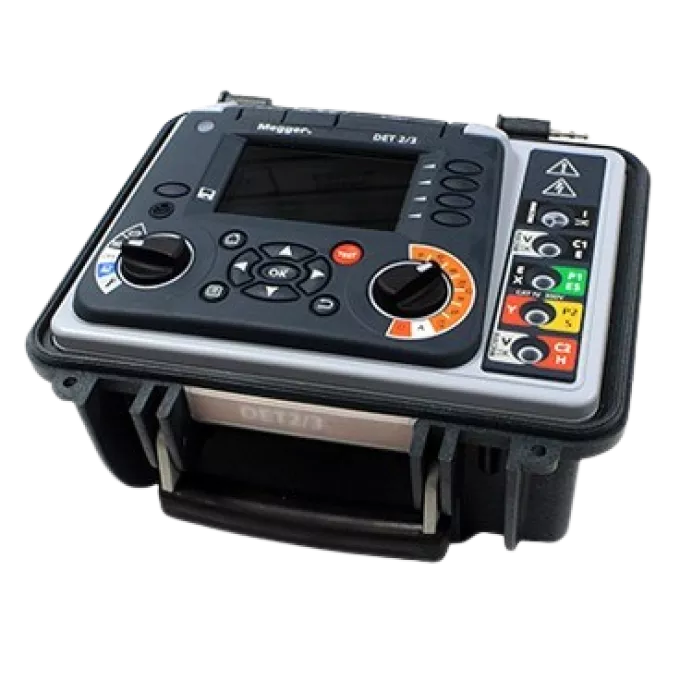

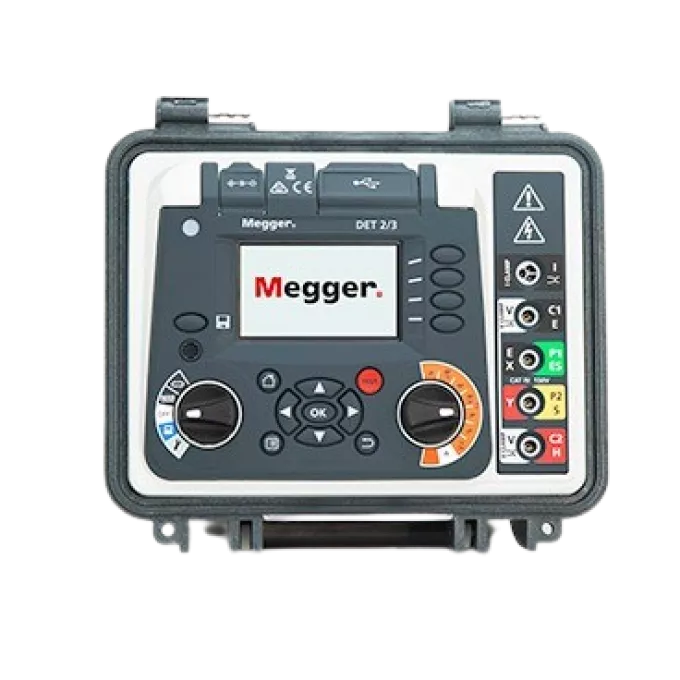

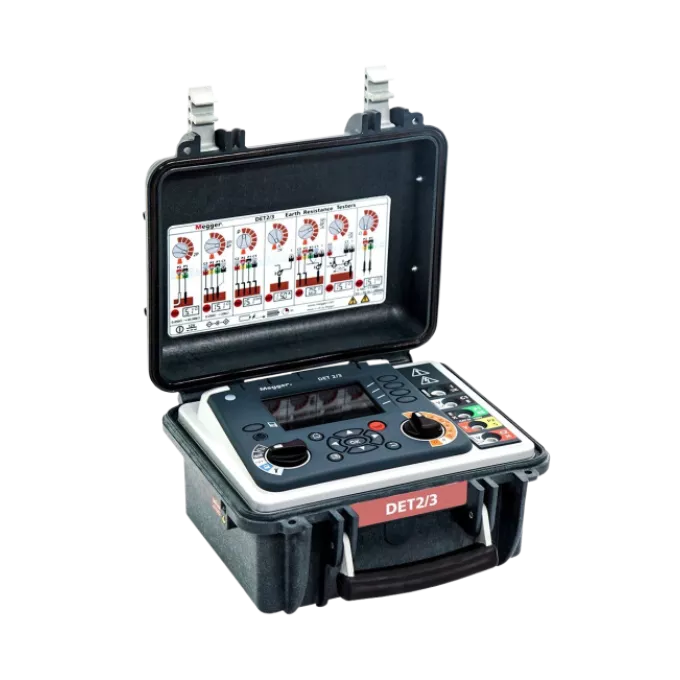

Megger DET2/3 Advanced Earth (Ground) Tester
Megger DET2/3 Advanced Earth (Ground) Tester
The Megger® DET2/3 is a durable and compact instrument designed for accurate testing of earth electrode resistance and soil resistivity. It supports multiple test methods, with a focus on the four-terminal method, which ensures high accuracy by eliminating current circuit resistance. Ideal for large or complex earthing systems, it meets standards like BS 7430, BS EN 62305, and IEEE 81. It’s also suitable for lightning protection systems, railway applications, and even archaeological or geological investigations.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 4,42,750
(GST inclusive price) i-
Base Value: ₹ 375211.9
-
GST: (18) % ₹ 67538.1
-
Total Value ₹ 442750
₹5,31,300.00
( - 17% OFF )
Description
Key Features
- High accuracy earth (ground) measurements
- The DET2/3 provides accurate 1 mΩ resolution measurements of earth (ground) electrode resistance.
- With its microprocessor controlled system it provides a flexible and ‘user-friendly’ approach to earth tests by the provision of excellent error detection capabilities and full test information shown on a large colour display.
- Test frequency, test voltage and filtering can be quickly and easily adjusted so that adverse conditions, which can influence the test, can be overcome.
- A wide band of test frequencies, with a resolution of 0.5 Hz, can be used to eliminate errors caused by noise in the earth.
- The DET2/3 also includes an automatic frequency selection feature that scans for frequencies with the lowest noise level and then runs a test at that frequency.
Continuity measurements and bonding
- Single resistance range: One fully automatic range from 0.01 Ω to 1.0 kΩ
- Display: Three digit display
- Accuracy: ±3% (±2 digits)
- Short circuit current: 200 mA continuity test currents
- Lead null: Lead resistance compensation (NULL) operates with a lead resistance up to 10 Ω
What's in the box?
|
Rating & Reviews
Rating
| Measurement Types | 2, 3, and 4 pole resistance measurements |
| Resistance Measurement Range | 0.001 Ω to 20.00 kΩ (auto range) |
| Display (Main) | Four-digit display |
| Accuracy at 23°C | ±0.5% of reading ±2 digits |
| 3P Accuracy | ±10 mΩ |
| 2P Accuracy | ±20 mΩ |
| Operational Uncertainty | ±2% of reading ±2 digits (spike resistance <100 Ω, readings >10 mΩ) |
| ±5% of reading ±2 digits ±10 mΩ (readings >50 mΩ) | |
| Test Standards | BS 7430, BS 62305, BS EN 50122, IEEE Standard 81 |
| Test Frequency (2P, 3P, 4P) | 10 Hz to 200 Hz (0.5 Hz steps) |
| Test Frequency (Dual Clamp/ART) | 70 Hz to 200 Hz (0.5 Hz steps) |
| Test Current | Max. 50 mA |
| Max. Output Voltage | Less than 50 V rms |
| Max. Interference Handling | Up to 50 V peak-to-peak |
| 3 and 4 pole ART (selective) resistance measurements | |
| ART Resistance Measurement Range | 0.01 Ω to 10.00 kΩ (Auto range) |
| ART Accuracy | ±5% of reading ±3 digits at 23°C ±2°C |
| Stakeless Measurement Range | 0.01 Ω to 200 Ω |
| Stakeless Accuracy | ±7% ±3 digits @ 128 Hz |
| Continuity Range | 0.01 Ω to 1 kΩ (3 digits) |
| Continuity Accuracy | ±3% (±2 digits) |
| Continuity Test Current | 12 V, 205 mA |
| Lead Null Compensation | Up to 10 Ω |
| Leakage Current Range | 0.00 A to 2.00 A |
| Leakage Current Accuracy | ±5% (±3 digits) |
| General Instrument Specifications | |
| Main Display | 5.25-inch QWVGA, daylight-viewable, backlit colour |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | Max 90% RH at 40°C |
| Temperature Coefficient | < ±0.1% per °C |
| Altitude | Up to 2000 m above sea level |
| IP Rating | IP54 (lid open), IP65 (lid closed) |
| Measurement Rating | CAT IV 300 V |
| Output Rating | 50 V, 50 mA AC (switching DC) |
| Power Supply | Internal Li-ion battery / External 12–18 V, 65 W DC |
| Battery Life | Up to 10 hours of use |
| Charging Time | Fast charge to 50%; 3 hours to full charge |
| Ambient Temp (Charging) | 0°C to 40°C |
| Safety Standard | Meets IEC 61010 |
| EMC Standard | Meets IEC 61326 |
| Dimensions (L × W × H) | 315 × 285 × 181 mm (12.4 × 11.2 × 7.1 in) |
| Weight | 4.5 kg (9.9 lb) |
| Data & Connectivity | |
| Data Storage | On board 500 record storage downloadable as *.txt |
| USB Type A | For USB drive data download |
| USB Type B | For PC connection |
| PC Connectivity | USB 2.0 |
| Secondary Display Parameters | Noise, voltage, and current |
| Advanced Functions | |
| Resistivity Calculations | Wenner: PE = 2πaRW Schlumberger: PE = πb(b+a)R/a |
| Test Modes | 2P, 3P, 4P, ART (Selective), Stakeless (Clamp) |
| Auxiliary Inputs | MCC1010, MVC1010 |
| RoHS Compliance | Yes |
