MEXTECH DT1812BL
Click To Zoom
MEXTECH DT1812BL
MEXTECH DT1812BL
ELCB Tester is designed to test the leakage initiating separation time, line AC Voltage of various leakage protectors online, the test Current from 3-500mA with 18. The leakage initiating time range is 0-999ms, AC Voltage Range: 0-600V.
The Tester equip with large LCD displayer, white screen backlight, bar diagram indication. Output current, initiating time, battery power and phase are displayed on the same screen, with the functions of automatic shutdown, setting fault voltage indication, phase selection, Backlight selection, data storage, etc. The tester operates easy, with high precision, small size, light weight, delicate appearance and easy to carry, the tester is an ideal tool for on-site or indoor detection of various leakage protectors.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 14,250
(GST inclusive price) i-
Base Value: ₹ 12076.3
-
GST: (18) % ₹ 2173.7
-
Total Value ₹ 14250
₹20,350.00
( - 30% OFF )
Description
Key Features
- Display Mode: 4 digital large LCD Display, white screen backlight
- Data Hold: After testing finish, the interface will hold the test result automatic
- Failure Information Indication: LCD display “999” over time indication, it is possible that the rated initiating current grade of tested is too small or the leakage protector is faulty.
- Battery Voltage: when the battery voltage lower than 7.4V, low battery voltage symbol display
- Working Current: 100mA Max.
- Operating Temperature & Humidity: -10°C – 40°C, Below 80% RH.
- Storage Temperature & Humidity: -10°C – 60°C, below 70% RH.

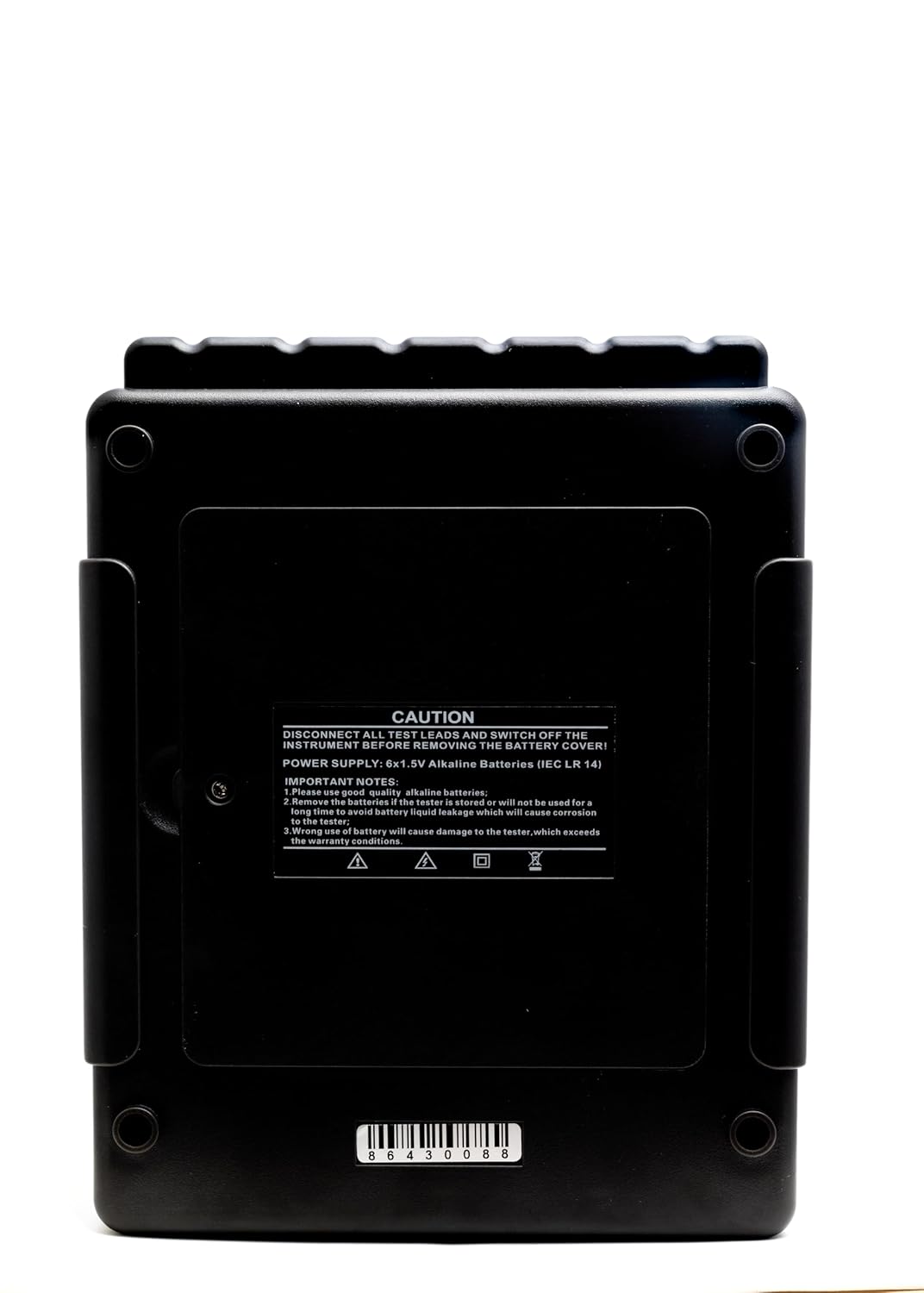

- Power Supply: 1.5V X 6PCS (DC 9V)
- Test wire Length: 1.5M
- Unit Size: 215 X 178 X 83 mm.
- Weight – 2kg (including all accessories)
What's in the box?
|
Rating & Reviews
Rating
| Function | Test leakage initiating time and line AC Voltage of various leakage protector. |
| Rated Voltage | AC 220V |
| Leakage Current Gears | 3mA, 5mA, 7mA, 10mA, 15mA, 20mA, 30mA, 35mA, 50mA, 100mA, 125mA, 150mA, 175mA, 250mA, 275mA, 300mA, 375mA, 500mA. |
| Current Accuracy | ±10%rgt±5dgt |
| Rotary Knob Gear | OFF; V; X1; X2; X3; Auto(6gears) |
| Test Mode: | Manual: X1 (3mA, 5mA, 7mA, 10mA, 15mA, 20mA) X2 (30mA, 35mA, 50mA, 100mA, 125mA, 150mA) X3 (175mA, 250mA, 275mA, 300mA, 375mA, 500mA) |
| Auto: 3mA-500mA | |
| Leakage Initiating Time Range | 0-999ms. |
| Leakage initiating Time Accuracy | 5%rgt±3%dgt |
| Ac Voltage Range | 0-600V |
| AC Voltage Accuracy | 2%rgt±5%dgt |
| Phase Select | 0°/180° |
| Insulation Strength | ≥100MΩ, AC 2kV/rms(between the shell and the screw). |
