Mextech DIT54 10KV Digital Insulation Tester
Click To Zoom
Mextech DIT54 10KV Digital Insulation Tester
Mextech DIT54 10KV Digital Insulation Tester
Suitable for insulation resistance testing of cable, motor, generator, transformer, mutual inductor, high voltage switch, arrester and other large equipment. Insulation resistance measurement (IR); polarization index measurement (PI); absorption ratio (DAR); 4 kinds of filter chose (10S, 20S, 30S, 40S); Voltage measurement (V); capacity measurement (uF); Leakage current measurement (nA）
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 58,000
(GST inclusive price) i-
Base Value: ₹ 49152.5
-
GST: (18) % ₹ 8847.5
-
Total Value ₹ 58000
₹80,200.00
( - 28% OFF )
Bulk quantity Discounts!!
Reset
-
Select Quantity Discounted Price Per Piece
Description
Key Features
- Automatic discharge function, instantly release the high voltage of the measured object, and display the discharge voltage.
- Quickly charge for capacitive load, especially suitable for cable insulation resistance measurement.
- Button, band rotary knob and touch color screen combination, make the function test convenient and easily, query record operation simple.
- Various display content: insulation resistance value, output voltage, leakage current, test timing, test date and time (display hour, minute, second), battery power.
- Double shell structure, firm and durable, protection grade IP65.
- Two power supply mode of rechargeable lithium battery pack and power adapter.
- Automatically store 1000 groups of real-time test data with test date, time and timing. The recorded data can be uploaded to the computer by USB communication cable for data statistical analysis

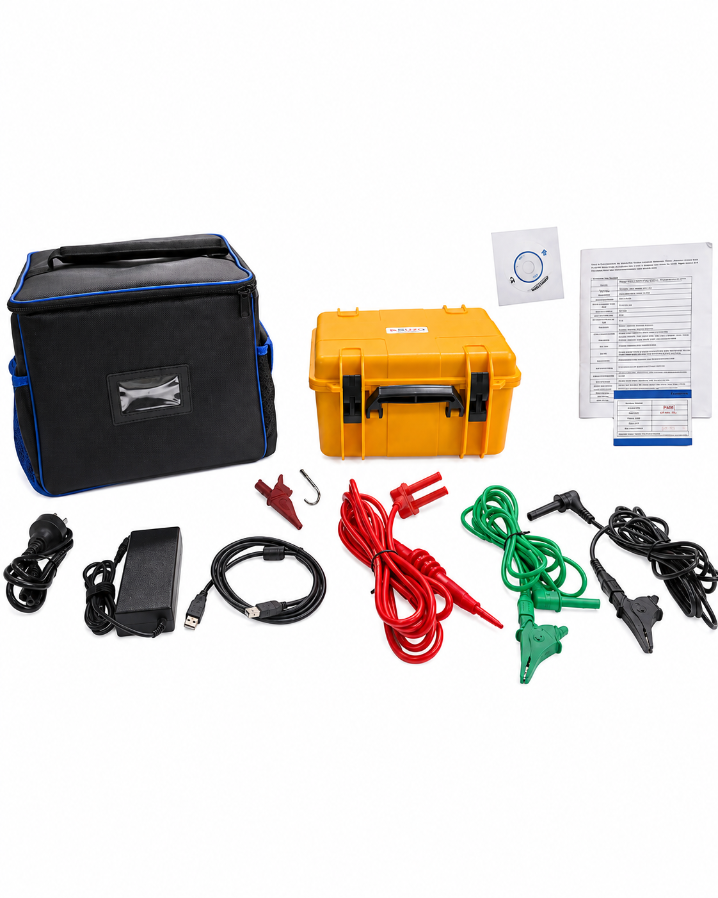

What's in the box?
|
Rating & Reviews
Rating
| BASIC FUNCTION | RANGE | ||||||
| Rate Voltage | 250 V | 500 V | 1000 V | 2500 V | 5000 V | 10 KV | |
| Range and Accuracy | ±5%-±20% | 50 GΩ | 100 GΩ | 200 GΩ | 500 GΩ | 1 TΩ | 5 TΩ |
| Model | DIT-54 |
| Rated Voltage | 250v，500v，1000v，2500v，5000v, 10kv |
| Output Voltage Accuracy | (5%～0%）±10V |
| Insulation Resistance Range | 0.5MΩ～5TΩ |
| Output Short Circuit Current | ≥5mA Max |
| Power Supply | Rechargeable lithium battery pack, charge AC 220V |
| Filter | 10S、20S、30S、40S (4 choice) |
| Voltage Measurement | Range: AC/DC 30V～1000V；Accuracy: ±（3%+3V）；Resolution: 1V |
| Current Measurement | Range: 0.00nA～6.00mA；Accuracy: ±（5%+0.2nA）；Resolution: 1pA |
| Capacitance Measurement | Range: 10nF～25uF；Accuracy: ±（10%+5nF）；Resolution: 1nF |
| Timing Range | 0s～9999s |
| Storage Function | Automatically store the real-time test data with test date, time and timing, total of 1000 groups |
| Upload Function | Upload the stored data to computer with USB communication cable. |
| Battery Voltage | Battery voltage symbol display, when battery voltage low will remind to replace the battery |
| Auto Shut Down | After 15 minutes start up will shut down automatically without any operation |
| Meter Dimension | 280mm×260mm×160mm |
| Meter Weight | 6400g (include battery) |
| Test Wire | Red color high voltage test wire 1 pcs (with alligator clip 1PCS and hook 1PCS), green color test wire 1PCS, black color test wire 1PCS |
| Working Environment | -10℃～50℃；80%rh |
| Insulation Resistance | 50MΩ（1000v）（between the test circuit and shell） |
| Withstand Voltage | AC 3Kv 50Hz 1min（between the test circuit and shell） |
