Fluke 1550C FC 5 kV Insulation Tester Kit

Fluke 1550C FC 5 kV Insulation Tester Kit
Fluke 1550C FC 5 kV Insulation Tester Kit
Fluke 1550C FC 5 kV Insulation Tester Kit
Fluke 1550C FC 5 kV Insulation Tester Kit

Fluke 1550C FC 5 kV Insulation Tester Kit

Click To Zoom

Fluke 1550C FC 5 kV Insulation Tester Kit

Fluke 1550C FC 5 kV Insulation Tester Kit

(Based On 10 Reviews)

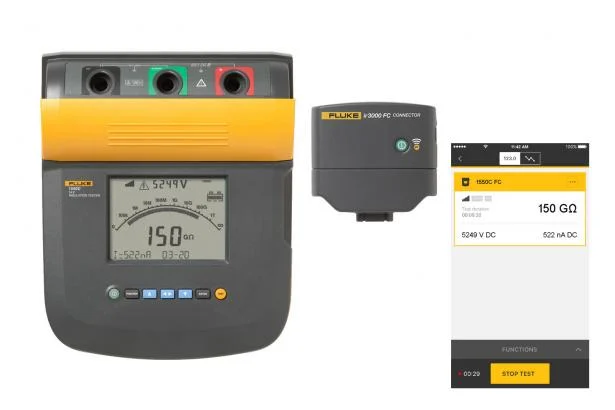

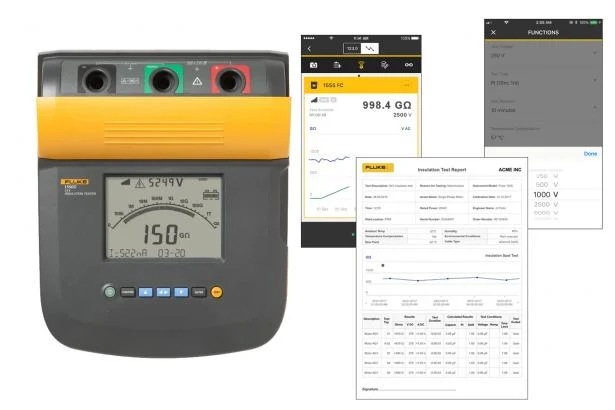

The Fluke 1550C, combined with the ir3000 FC Connector and Fluke Connect App, are designed to improve worker safety and save time while conducting insulation on high-voltage equipment including switchgear, motors, generators and cables. Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage, a PC interface and the ability to store, share and analyze measurements through Fluke Connect, the 1550C are perfect tools for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur. The Fluke Connect mobile app is an easy to use, advanced wireless system for capturing and trending anomalies for troubleshooting, commissioning and preventative maintenance of insulation resistance applications.*

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

3 YEARS WARRANTY
3 Years Warranty Against Any Manufacturing Defects.

3 YEARS WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 4,65,895

(GST inclusive price) i
  • Base Value: ₹ 394826.3
  • GST: (18) % ₹ 71068.7
  • Total Value ₹ 465895

₹6,27,075.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Select test voltages up to 5 kV (1550C) and 10 kV (1555) and save time by trending on the spot using Fluke Connect*
  • CAT III 1000 V, CAT IV 600 V safety rating
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
  • Reduce paperwork while creating an auditable data trail by wirelessly storing results in Fluke Connect*
  • Long battery life gives the user over 750 tests between charges
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Historical tracking and trending of assets identifies degradation over time, allows real-time decisions to be made in the field with Fluke Connect Assets (sold separately)
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 1TΩ/2TΩ
  • Timer settings up to 99 minutes for timed tests



What's in the box?

  • Fluke 1550C FC 5 kV Insulation Tester Kit

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

Display475 mm x 105 mm
Power12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input(AC) 85 V to 250 V ac 50/60 Hz 20 VA
Dimensions170 mm x 242 mm x 330 mm (6.7 in. x 9.5 in. x 13.0 in.)
Weight3.6 kg (7.94 lb)
Temperature (operating)-20 ºC to 50 ºC (-4 ºF to 122 ºF)
Temperature (storage) -20 ºC to 65 ºC (-4 ºF to 149 ºF)
Humidity80% to 31 ºC decreasing linearly to 50 % at 50 ºC
Altitude2000 m
Enclosure sealingIP40
Input overload protection1000 V ac
Electromagnetic compatibilityEN 61326
Safety compliance

IEC 61010-1: Overvoltage category II, pollution degree 2.

IEC 61010-2-030: Measurement 600V CAT IIV/1000V CAT III

IEC 61557-1, IEC 61557-2

Fluke Connect CompatibleYes



TECHNICAL

Test voltage (dc)RangeAccuracy (± reading)
250 V < 250 kΩ
250 kΩ to 5 GΩ
5 GΩ to 50 GΩ
> 50 GΩ		unspecified 5 % 20 % unspecified
500 V< 500 kΩ
500 kΩ to 10 GΩ
10 GΩ to 100 GΩ
> 100 GΩ 		unspecified 5 % 20 % unspecified
1000 V< 1 MΩ
1 MΩ to 20 GΩ
20 GΩ to 200 GΩ
> 200 GΩ		unspecified 5 % 20 % unspecified
2500 V< 2.5 MΩ
2.5 MΩ to 50 GΩ
50 GΩ to 500 GΩ
> 500 GΩ		unspecified 5 % 20 % unspecified
5000 V < 5 MΩ
5 MΩ to 100 GΩ
100 GΩ to 1 TΩ
> 1 TΩ 		unspecified 5 % 20 % unspecified
10000 V< 10 MΩ
10 MΩ to 200 GΩ
200 GΩ to 2 TΩ
> 2 TΩ		unspecified 5 % 20 % unspecified
Bar graph range

0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555)

-0 %, +10 % at 1 mA load current

2 mA maximum

5 seconds per μF

1.5 s/μF

Insulation test voltage accuracy
Induced ac mains current rejection
Charging rate for capacitive load
Discharge rate for capacitive load
 RangeAccuracy
Leakage current measurement1 nA to 2 mA± (20 % + 2 nA)
Capacitance measurement0.01 uF to 20.00 μF± (15 % rdg + 0.03 μF)
 RangeResolution
Timer 0 to 99 minutesSetting: 1 minute
Indication: 1 second
 Warning rangeVoltage accuracy
Live circuit warning30 V to 1100 V ac/dc, 50/60 Hz± (15 % + 2 V)
