Metravi AT500 Non-contact High Voltage Detector (Arm Type)
Click To Zoom

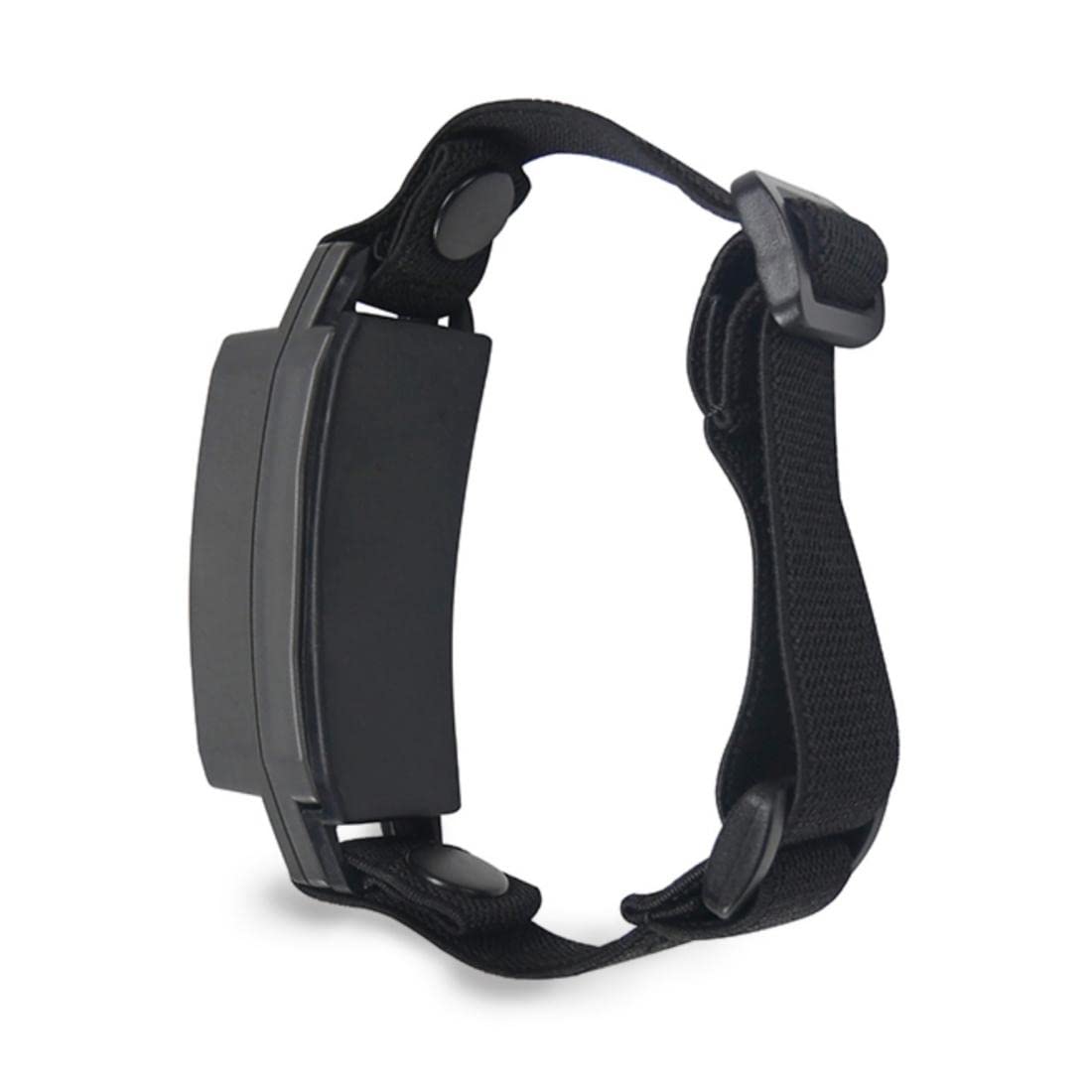

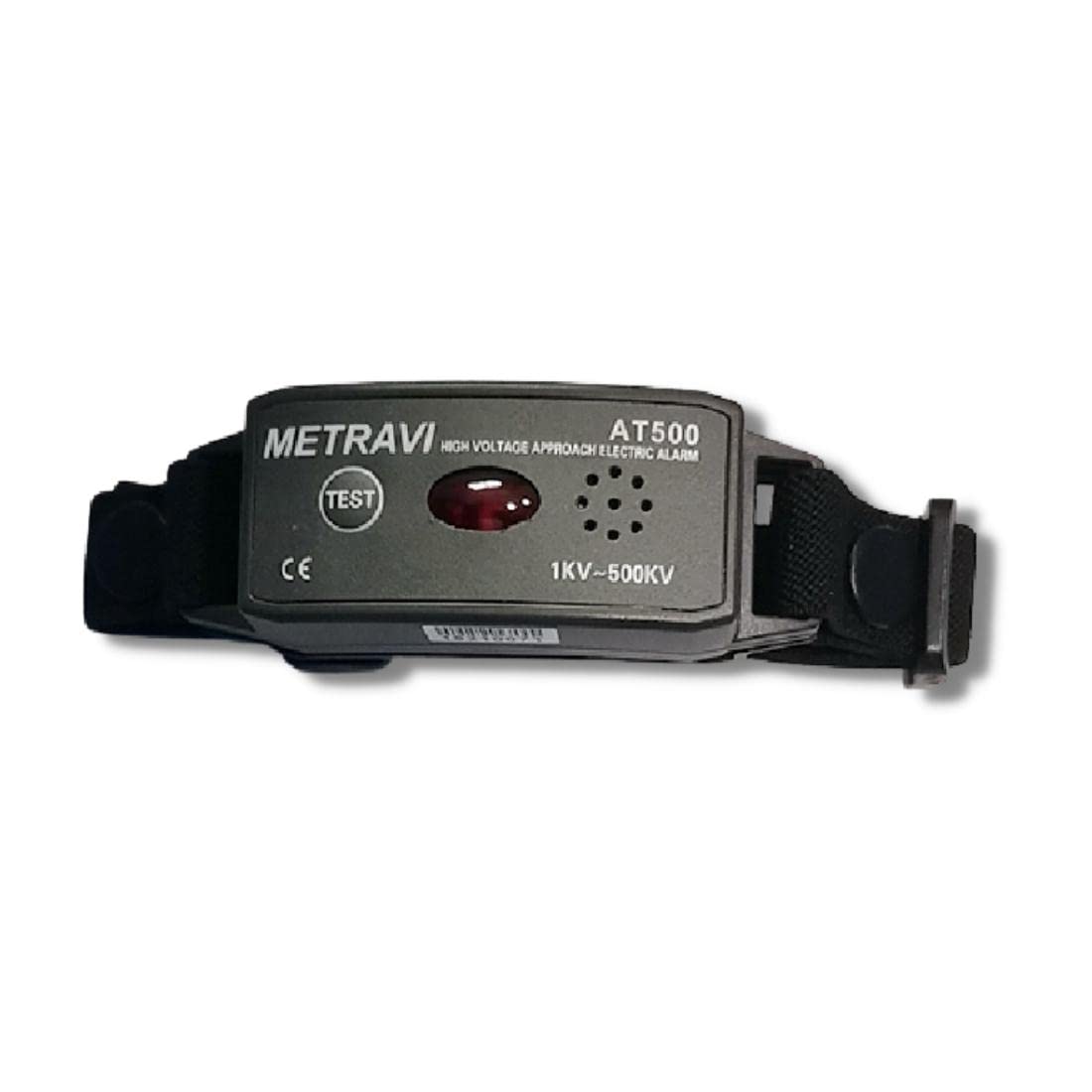

Metravi AT500 Non-contact High Voltage Detector (Arm Type)
Metravi AT500 Non-contact High Voltage Detector (Arm Type)
A handy, wearable (arm-type), close-range non-contact high voltage detector, featuring sound & light alarms when an operator wearing it gets close to a high voltage charged body upto 500kV.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 3,900
(GST inclusive price) i-
Base Value: ₹ 3305.1
-
GST: (18) % ₹ 594.9
-
Total Value ₹ 3900
₹5,535.00
( - 30% OFF )
Description
Key Features
- Alarm Voltage Range: 1kV ~ 500KV (high voltage alarm)
- Working Frequency: 50Hz/60Hz
- Safe, practical, convenient
- New style high voltage alarm device
- Automatic voltage detection/trigger mode
- Suitable for sites having overhead high-voltage lines.

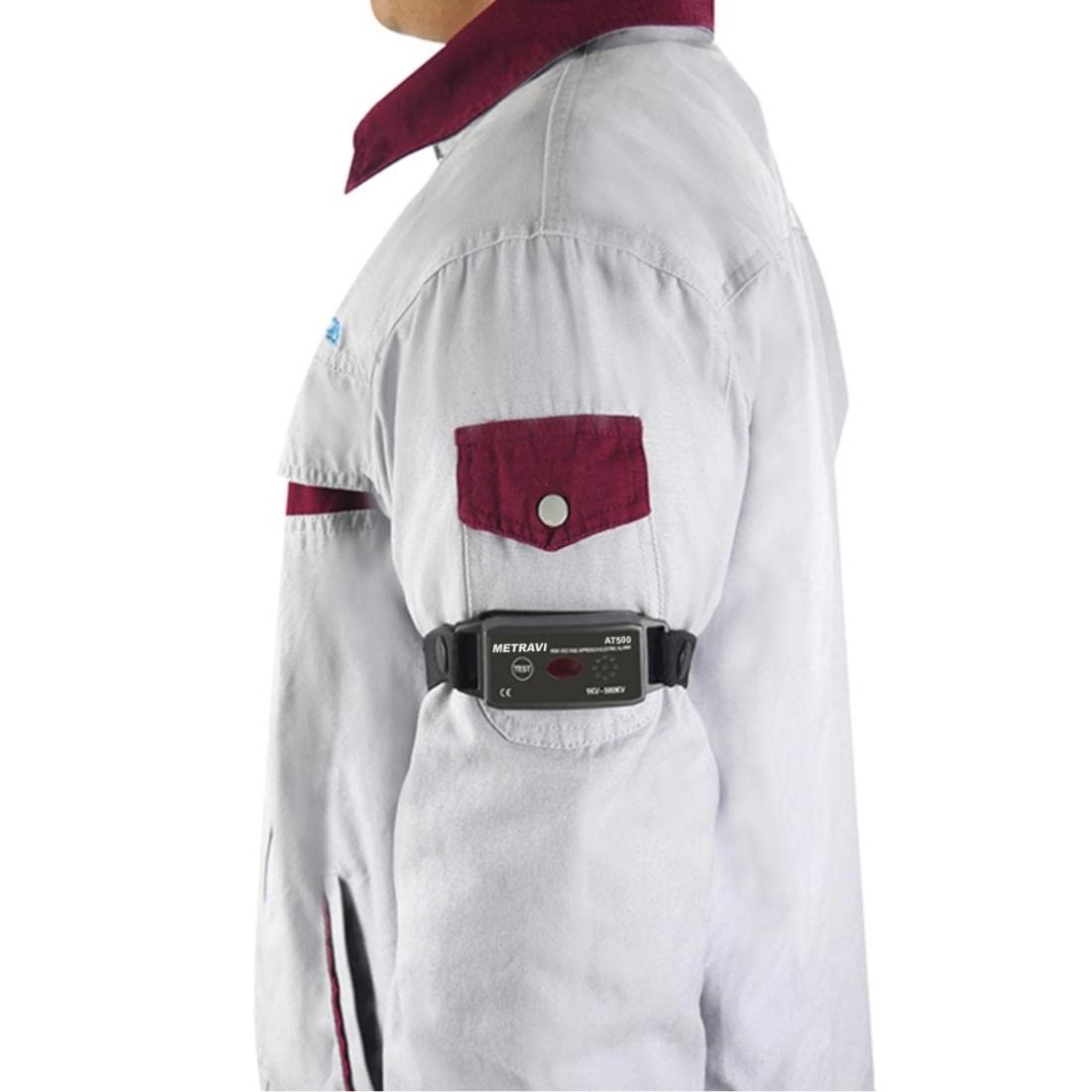

- To be worn on the arm of the operator with the alarm symbol pointing towards the direction of the fingertips.
- Non-contact induction technology
- Battery* operated with a standby time of up to 12 months
- All-directional induction voltage power source
- Automatic trigger-detection mode with sound and light
- Visual Alarm/Indicator: LED light (visibility under 8000LX visible light)
- Audible Alarm/Buzzer: above 60dB (from 60cms distance)
- IP54 Protection Level: Dust-proof and water-spray protection
- Works only for single-core cables.
- Will not work for shielded/armored cable
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |
| Voltage Level and Alarm Distance | |
| 6.6kV | 0.6m |
| 10kV | 0.8m |
| 35kV | 1.4m |
| 66kV | 1.8m |
| 110kV | 2.2m |
| 220kV | 3.0m |
| 330kV | 3.6m |
| 500kV | 4.2m |
| Technical Parameter | |
| Power Supply | 2 nos. CR1632 (140mAH) button cells (included) |
| Alarm Voltage Range | 1kV ~ 500KV (high voltage alarm) |
| Working Frequency | 50Hz/60Hz |
| Electricity Testing Mode | Non-contact mode |
| Detection Mode | Automatic trigger |
| Alarm Distance Error | ±10cm (under base condition) |
| Battery Life | Continuous working (sound and light alarms) : about 24 hours |
| Standby : about 24 hours | |
| Alarm Mode | Indicator : LED light visibility under 8000LX visible light |
| Buzzer : above 60dB (from 60cms distance) | |
| Protection Level | IP54 |
| Weight | 51g |
| Dimensions | 88mmX32mmX30mm |
| Working Temperature | -10°C ~ 40°C below 80%RH |
