Metravi HT500 Non-contact High Voltage Detector (Helmet Type)
Click To Zoom
Metravi HT500 Non-contact High Voltage Detector (Helmet Type)
Metravi HT500 Non-contact High Voltage Detector (Helmet Type)
The Metravi HT500 Non-contact Voltage Detector reminds the electrical worker to pay attention to safety and avoid high voltage electric shock accidents. When the operator is wearing the alarm and gets close to a high voltage charged body within a certain distance, sound and light alarms go off, according to the safety distance of the corresponding voltage level. This instrument can also be used for line fault detection and electroscope.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 3,600
(GST inclusive price) i-
Base Value: ₹ 3050.8
-
GST: (18) % ₹ 549.2
-
Total Value ₹ 3600
₹5,130.00
( - 30% OFF )
Description
Key Features
- Provides a safe, practical, convenient, new-style high-voltage alarm device for high-voltage approach electric operators. It is especially suitable for sites having overhead high-voltage lines.

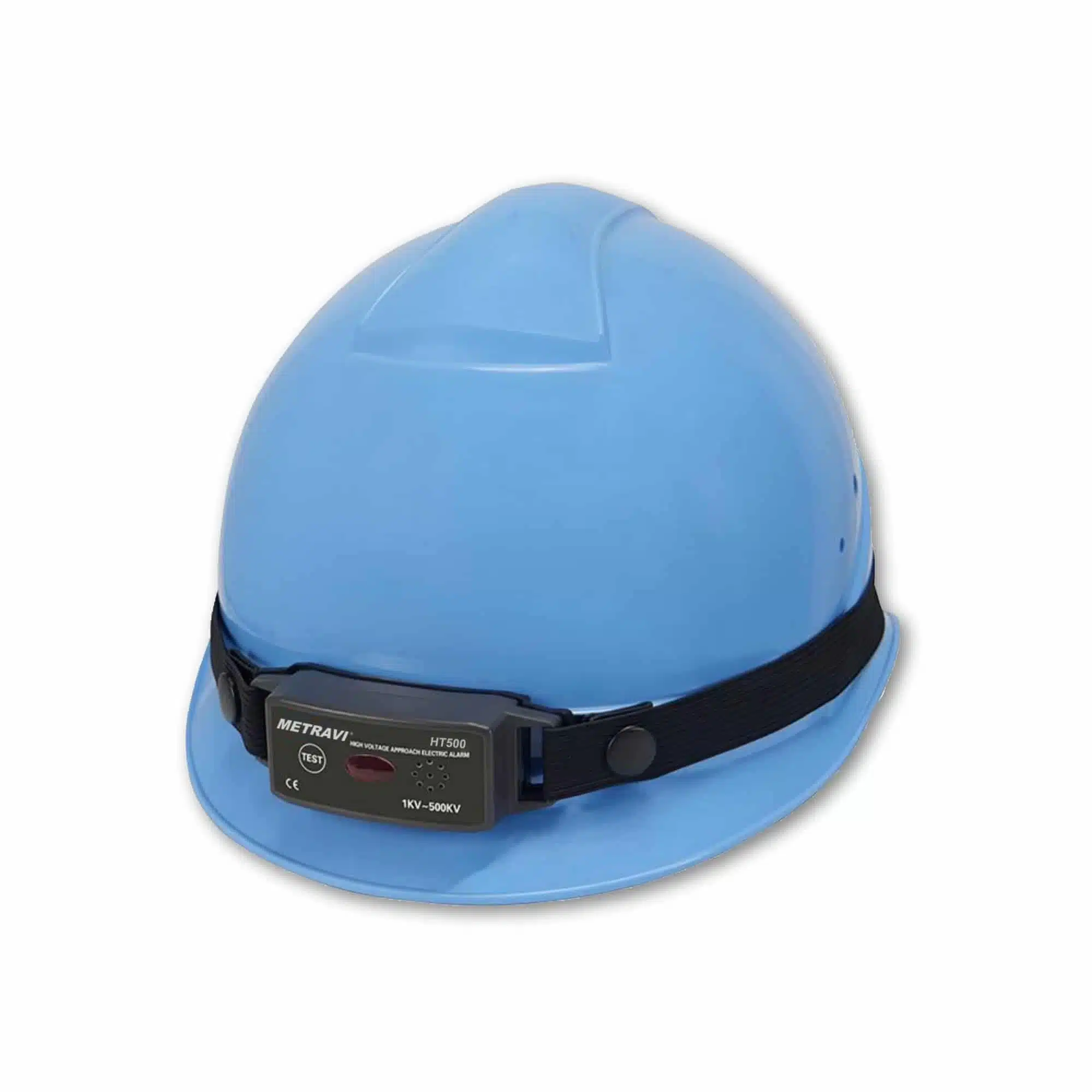

- The alarm is to be worn on the helmet of the operator, and the alarm symbol should be pointing towards the direction of the fingertips.
- Adopts non-contact induction technology and accurate alarms, is power-saving and durable with a standby time of up to 12 months.
- Features an all-directional induction voltage power source, and automatic trigger-detection mode with sound and light alarms, to ensure the safety of approach for
high voltage electricity workers. - Works only for Single Core cables. Will not work on shielded or armored cables.
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |
| Voltage Level and Alarm Distance | |
| 1kV | 0.1m |
| 6.6kV | 0.7m |
| 10kV | 1.0m |
| 35kV | 1.6m |
| 66kV | 2.2m |
| 110kV | 2.5m |
| 220kV | 3.5m |
| 330kV | 4.5m |
| 500kV | 5.5m |
| Technical Parameter | |
| Power Supply | 2 nos. CR1632 (140mAH) button cells (included) |
| Alarm Voltage Range | 1kV ~ 500KV (high voltage alarm) |
| Working Frequency | 50Hz/60Hz |
| Electricity Testing Mode | Non-contact mode |
| Detection Mode | Automatic trigger |
| Alarm Distance Error | ±10cm (under base condition) |
| Battery Life | Continuous working (sound and light alarms) : about 24 hours |
| Standby : about 12 months | |
| Alarm Mode | Indicator : LED light visibility under 8000LX visible light |
| Buzzer : above 60dB (from 60cms distance ) | |
| Protection Level | IP54 |
| Weight | 51g |
| Dimensions | 88mmX32mmX30mm |
| Working Temperature | -10°C ~ 40°C below 80%RH |
