Metravi 276HD Contact-Type High Voltage Detector
Click To Zoom
Metravi 276HD Contact-Type High Voltage Detector
Metravi 276HD Contact-Type High Voltage Detector

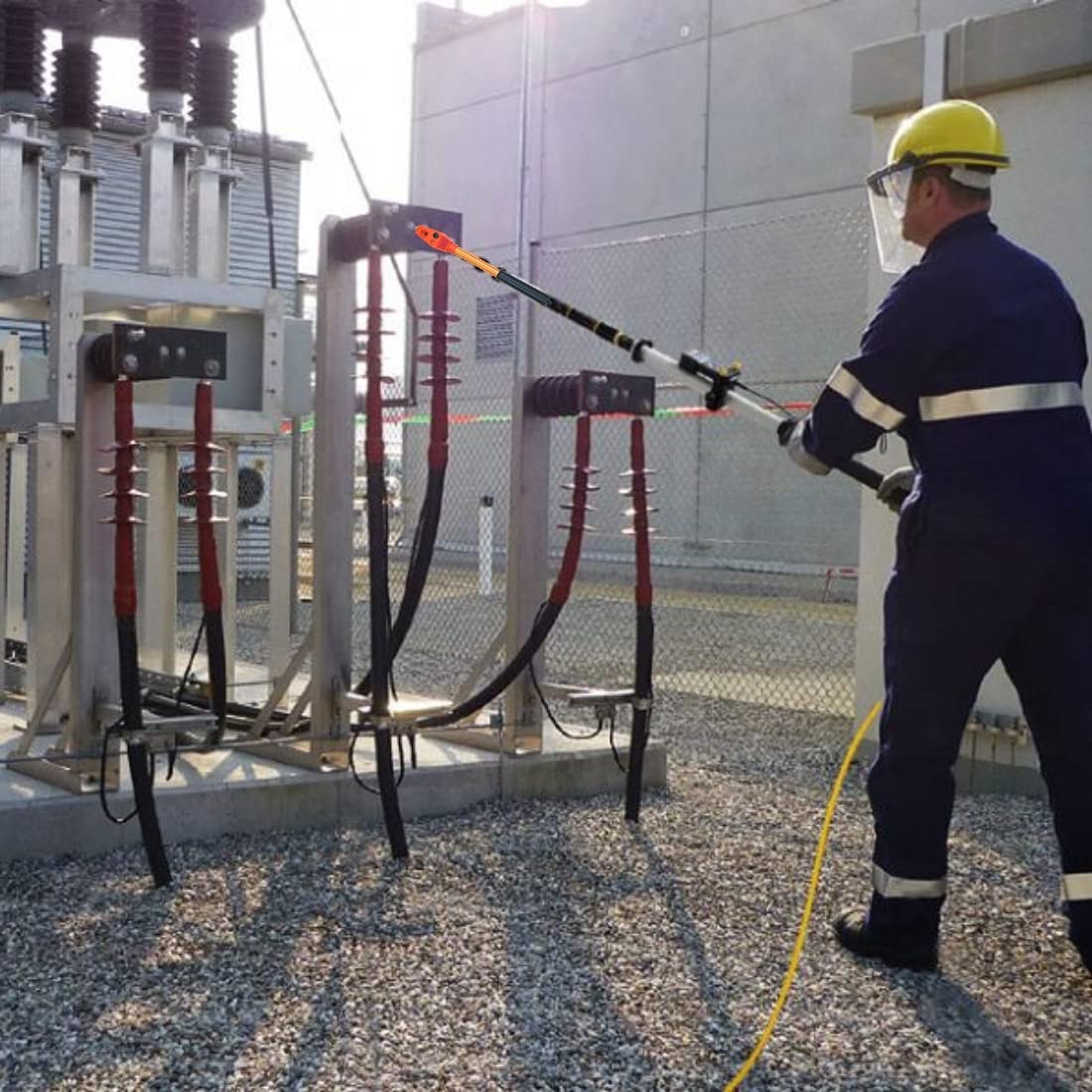

These models detect the presence of voltage in AC lines. An elongated insulation rod permits the checking of high-tension circuits for voltage at a safe distance. The instruments are compact, lightweight, and easy to handle and are also available for voltage detection in low-tension circuits
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 18,008.00
(GST inclusive price) i₹24,239.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Working Voltage Range | H.V.: 3kV~24kV AC... hold grip portion to detect L.V.: 80V~600V AC... hold nameplate portion to detect |
| Frequency | 50 Hz / 60 Hz |
| Operation Test | (a) When stretched, hold the grip portion. Put the sensing tip in contact with the voltage: 250V, AC ± 50V the LED and buzzer should work. (b) When retracted, hold the nameplate portion. Put the sensing tip in contact with the voltage: 80V, AC or below the LED and buzzer should work. |
| Operation start distance | Distance at which operation starts when front metal is brought near $ 5mm O.C. wire with grip portion held by hand. Where 24kV / $3mm (voltage to ground)... abt 20 cm Where 6.6kV/43mm (voltage to ground)... abt 3 cm Where 3.3kV/ $3mm (voltage to ground)... abt 1 cm |
| Dielectric Strength | (a) Between Sensing tip ~ Grip portion: 50kV AC, 1 min (The detector has to be stretched) (b) Between Sensing tip ~ Nameplate portion: 4kV AC, 1 min. |
